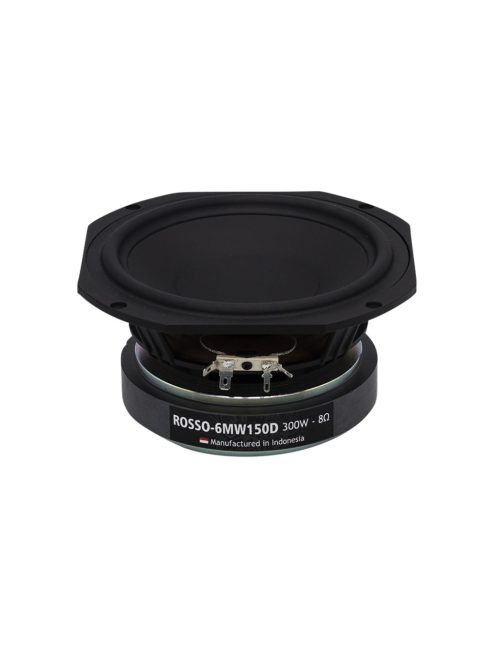

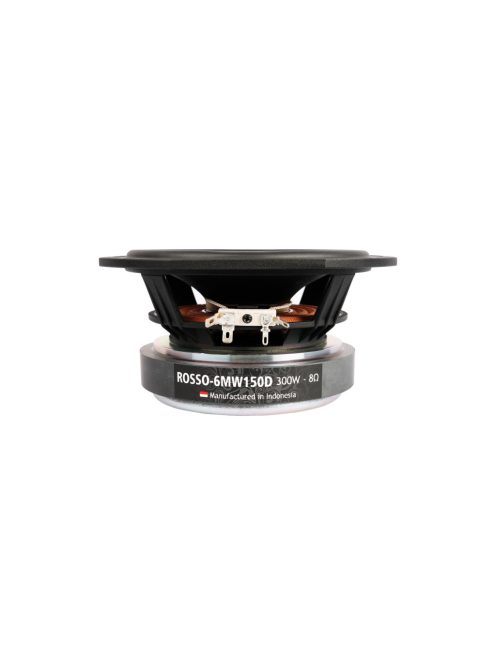

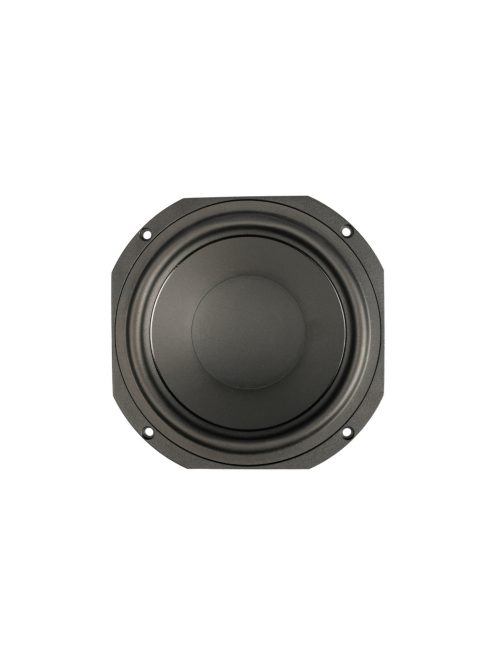

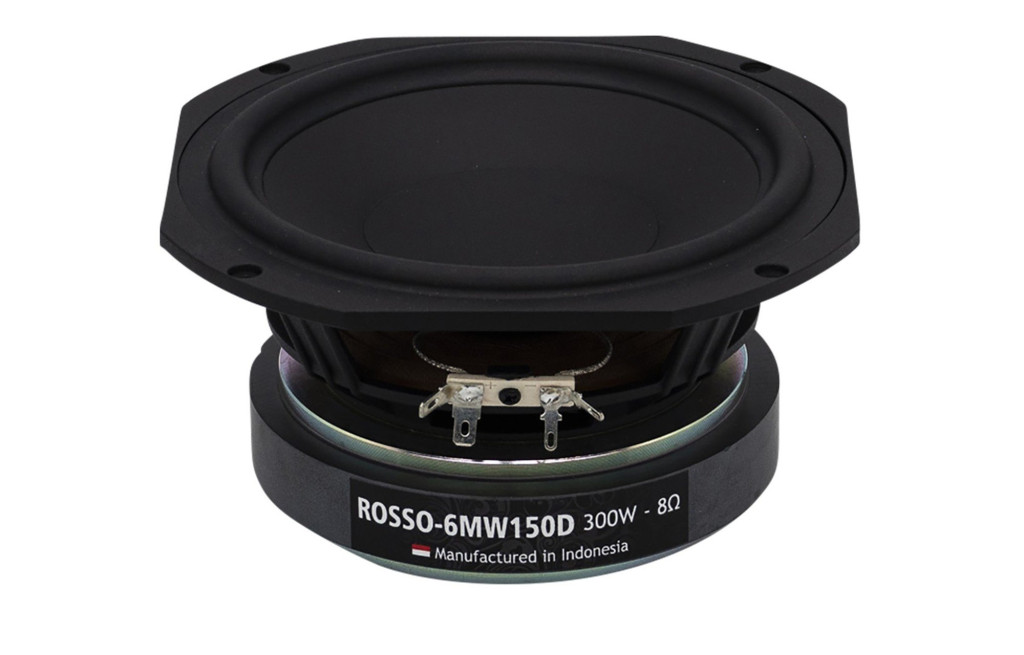

ROSSO-6MW150D Mid-range Woofer
ROSSO-6MW150D Mid-range Woofer
89.17 € excl. VAT

ROSSO-6MW150D Mid-range Woofer

ROSSO-6MW150D Mid-range Woofer
ROSSO-6MW150D Mid-range Woofer
ROSSO-6MW150D Mid-range Woofer
ROSSO-6MW150D Mid-range Woofer
Shipping within (if available from supplier)
4-5 working days
Manufacturer
SB Audience
Orderable
89.17 € excl. VAT
Details

SB Audience is spawned from the heavyweight manufacturing of Sinar Baja Electric Indonesia and has serviced well known brands in the PRO audio industry for decades with in house engineering and manufacturing.



Highlights

  • Proprietary cone paper material with manila pulp and graphite
  • Proprietary cone coating for controlled breakup
  • Extended midrange performance
  • Shorting ring in motor system for reduced distortion
  • Minimum damping fiber glass voice coil former
  • Cast aluminium chassis



Product Details

SB Audience ROSSO-6MW150D Mid-range Woofer



SB Audience is spawned from the heavyweight manufacturing of Sinar Baja Electric Indonesia, with well over 40 years of experience in development and manufacturing of solutions for professional OEM drivers, and has serviced well known brands in the PRO audio industry for decades with in-house engineering and manufacturing.



There are three categories within our standard product range: Bianco, achieves good performance at the most reasonable cost. Rosso, aims at high performance at an attractive price, and Nero is our higher performance line still achieving exceptional price performance ratio.

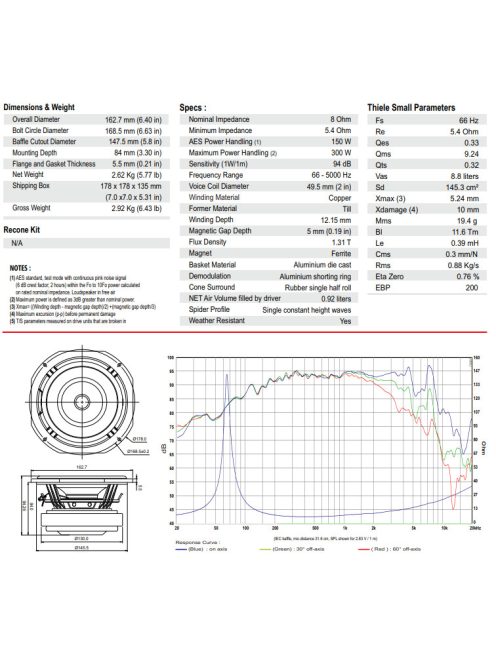

Specifications

Article numberROSSO-6MW150D
EAN8785256846214
Woofer SeriesSB Audience Rosso series
Woofer TypeMid-range
Nominal Diameter6”
Power Handling (RMS)150W
Power Handling (max)300 W
Impedance (Z)8 Ohm
Sensitivity (SPL at 1m / 2.83V)94 dB
Frequency Response66 - 5000 Hz
Voice Coil Diameter49.5 mm (2 in)
DC Resistance (Re)5.4Ohm
Voice Coil Inductance (Le)0.39mH
Resonant Frequency (Fs)66 Hz
Mechanical Q (Qms)9.24
Electromagnetic Q (Qes)0.33
Total Q (Qts)0.32
Diaphragm Mass Inc. Airload (Mms)19.4 g
Mechanical Compliance of Suspension (Cms)0.3 mm/N
Surface Area of Cone (Sd)145.3cm²
BL Product (BL)11.6 Tm
Compliance Equivalent Volume (Vas)8.8liters
Maximum Linear Excursion (Xmax)5.24 mm
Driver's Mechanical Losses (Rms)0.88Kg/s
Basket / Frame MaterialAluminium die cast
Magnet MaterialFerrite
Overall Outside Diameter162.7 mm (6.40 in)
Baffle Cutout Diameter147.5 mm (5.8 in)
Bolt Circle Diameter168.5 mm (6.63 in)
Info
Article No.
SAU-ROSSO-6MW150D
Opinions
Be the first to review this product!
