Highlights
High Performance Tweeter
Low Damping Ferrofluid Cooling
Linear response faceplate with neutral design
Coated Textile Diaphragm
High Stability
Dampened Cavity in Pole Piece
Product details

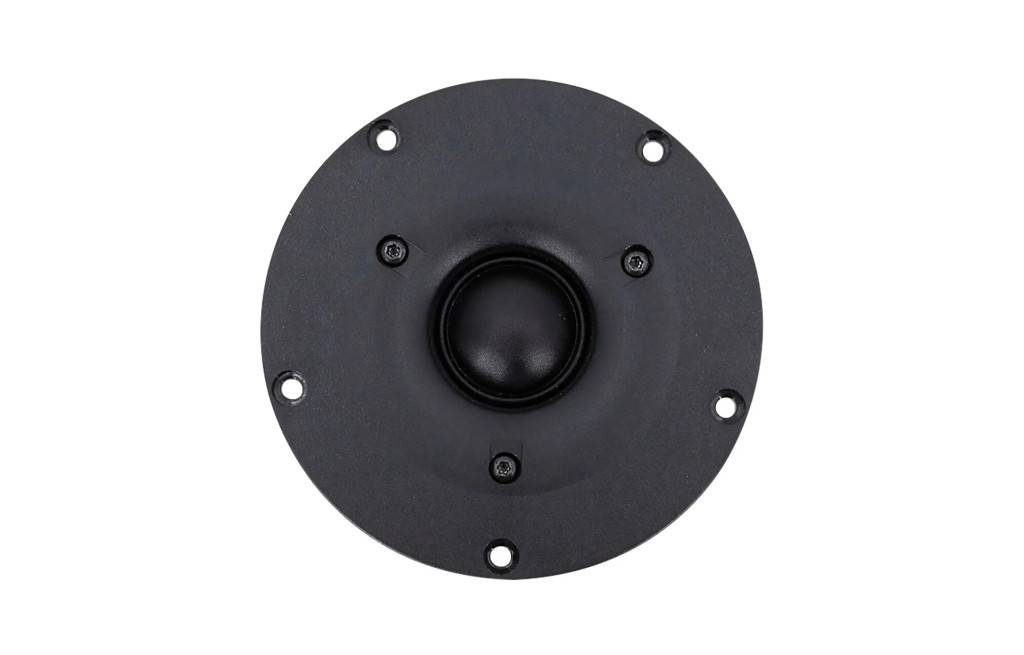

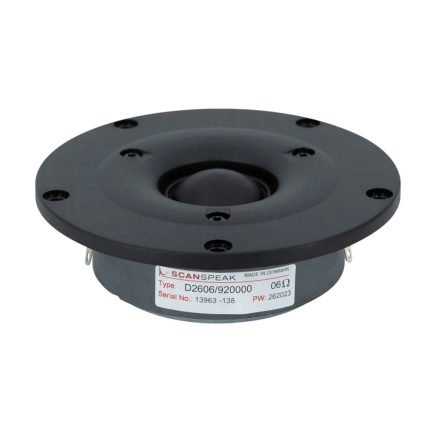

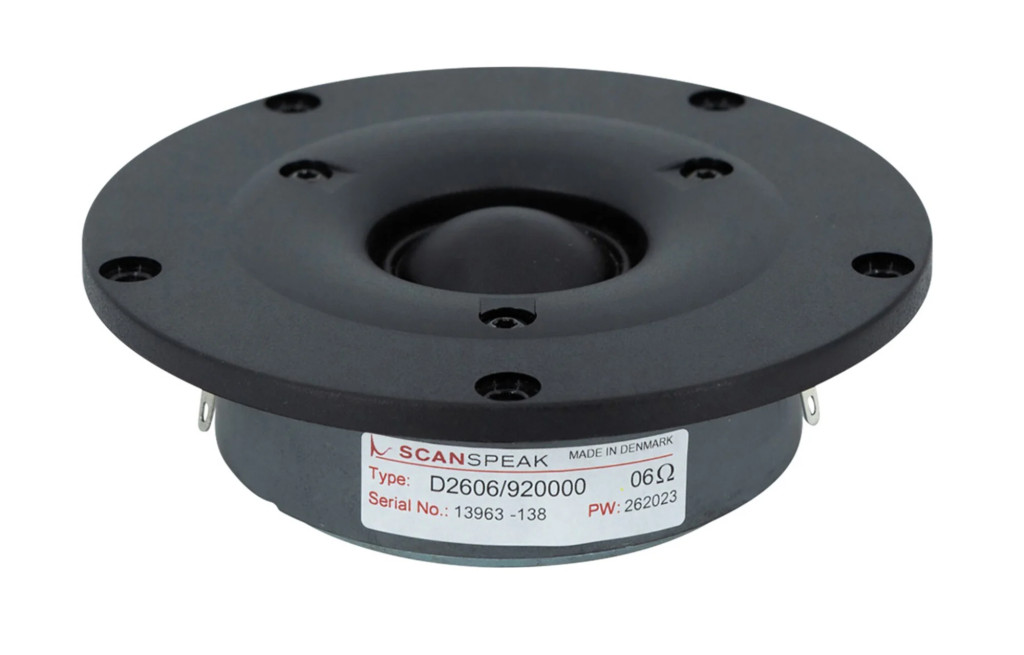

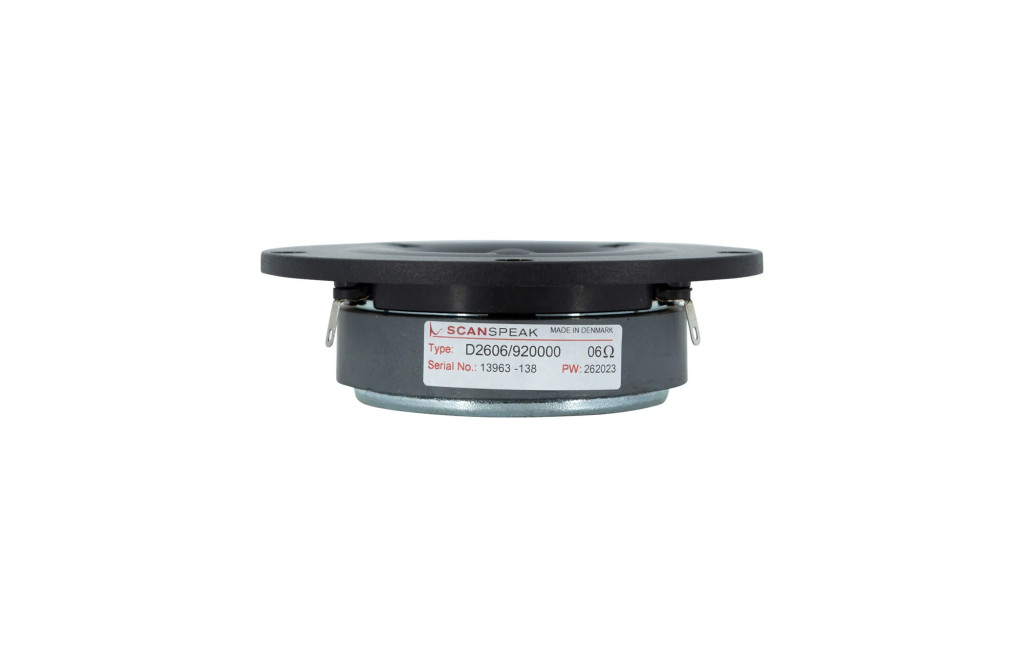

Scan-Speak Discovery D2606/920000 1" Coated Textile Dome Tweeter
The Discovery series offer traditional design, superior sound, a solid construction, and a wide range of variants. Combining these elements - plus a wealth of technical features and finesses - it gives our customers the possibility of acquiring a tailor-made Scan-Speak solution with very good performance at a reasonable low price point!
Specifications: Compliance Equivalent Volume (Vas): 0.0003 ft.³ • BL Product (BL): 2.7 Tm • Mechanical Compliance of Suspension (Cms): 0.07 mm/N • Diaphragm Mass Inc. Airload (Mms): 0.3 g • Maximum Linear Excursion (Xmax): 0.2 mm • Surface Area of Cone (Sd): 7.1 cm2
Specifications
Article numberD2606/920000
EAN0696277268665
Tweeter TypeDome
Tweeter SeriesDiscovery Series
Cone / Dome Diameter25 mm | 1"
Power Handling (RMS)100 Watts
Power Handling (max)200 Watts
Impedance (Z)6 Ω
Sensitivity (SPL at 1m / 2.83V)91.4 dB
Resonant Frequency (Fs)1100 Hz
DC Resistance (Re)4.6 ohms
Voice Coil Inductance (Le)0.04 mH
Mechanical Q (Qms)2.36
Electromagnetic Q (Qes)1.31
Total Q (Qts)0.84
