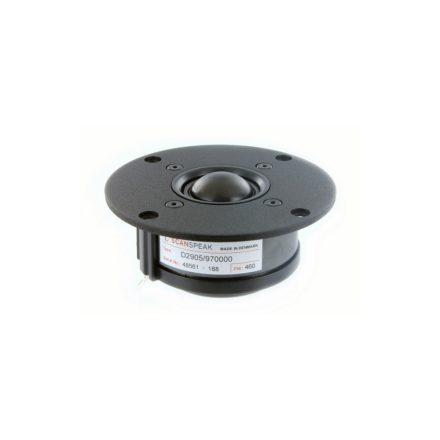

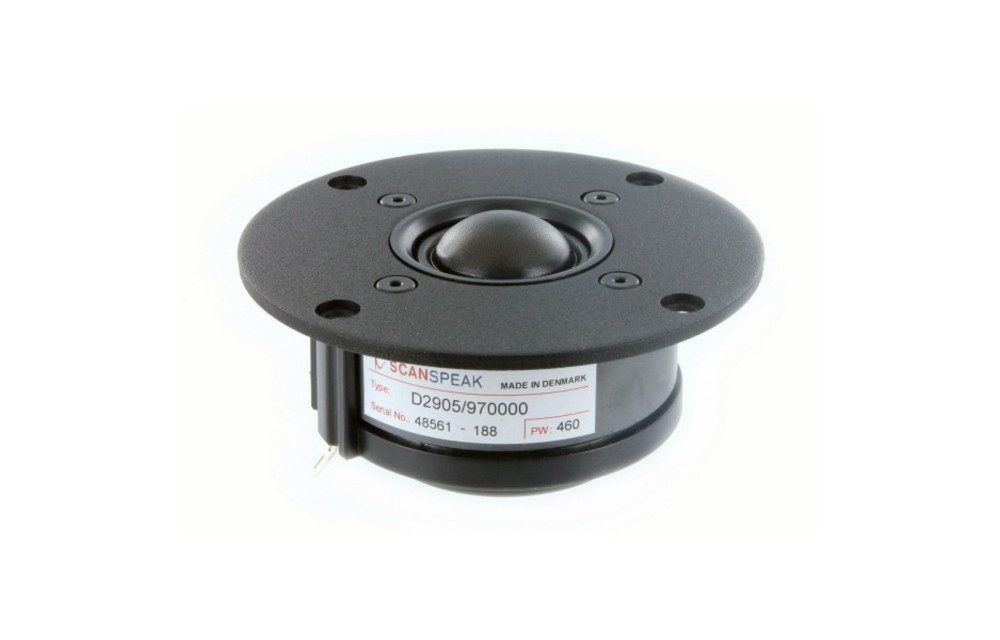

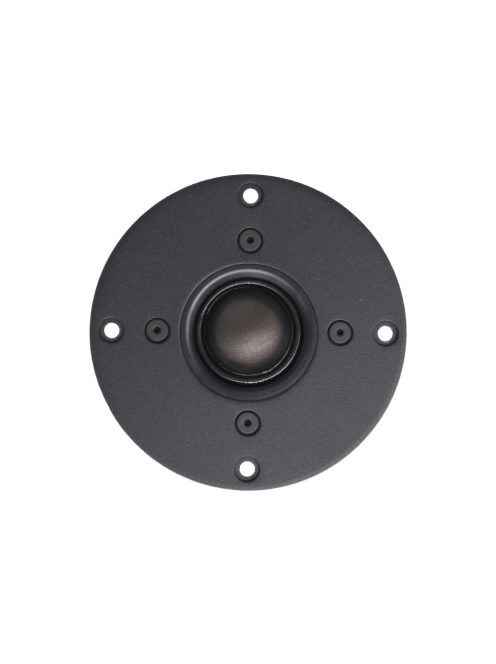

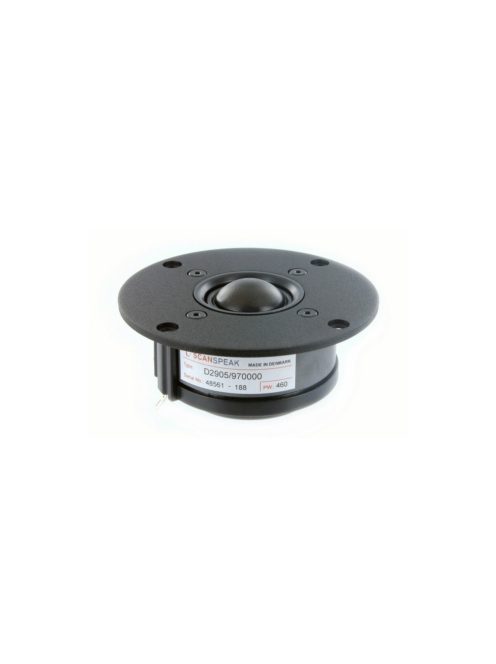

Scan-Speak D2905-970000 1” Dome Tweeter 6 Ohms

Name: Scan-Speak D2905-970000 1” Dome Tweeter 6 Ohms
Brand: Scan-Speak
SKU: SCA-D2905-970000
Price: 175.55 EUR
Availability: InStock

Shipping within (if available from supplier)

4-5 working days

Manufacturer

Scan-Speak

Further data

Out of stock - orderable

138.23 € excl. VAT

Details

Highlights

Patented Symmetrical Drive (SD-2) motor

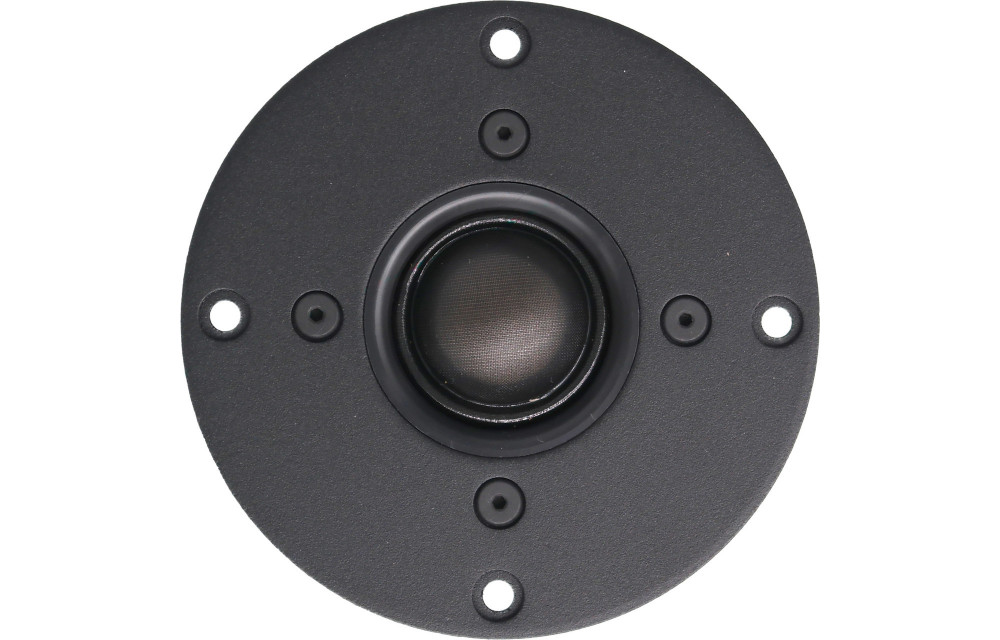

Hand coated 1" Textile Dome Diaphragm
Low Resonance Rear Chamber
Black Aluminium Face Plate
Low viscosity Ferro Fluid

Product Details

Scan-Speak D2905-970000 1” Dome Tweeter 6 Ohms

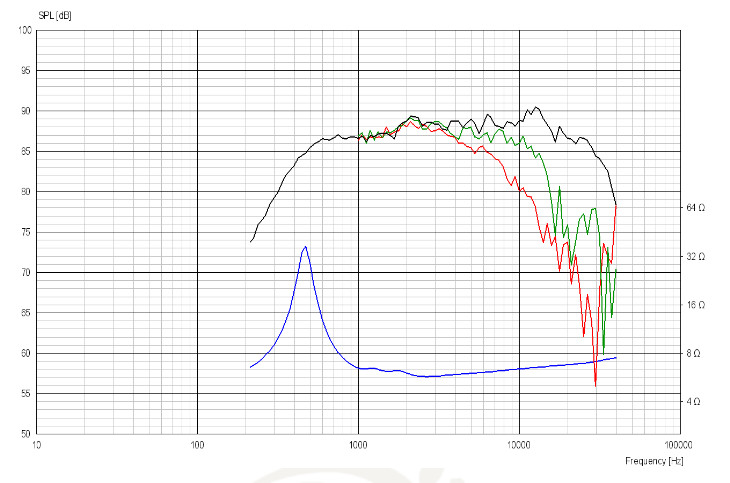

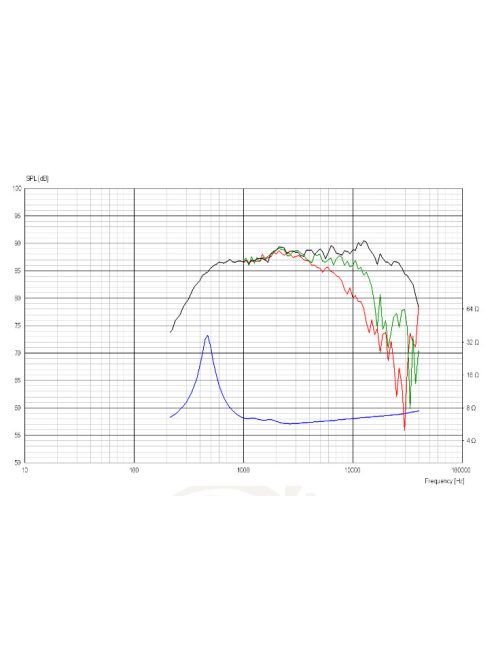

The Scanspeak D2905/970000 has a high power handling of 225W and a frequency response of above 30KHz. Features include a hand-coated 25mm soft textile dome, an airflow optimized copper capped pole piece and a tuned rear chamber with an integral resonance damping plug.

This tweeter also benefits from the Scanspeak SD2 'Symmetrical Drive' system incorporating a copper capped and sleeved center pole piece; this effectively forms a very low impedance shorted turn (called a Faraday ring) within the magnet circuit, the net result being that the voice coil impedance remains largely constant across it's operating frequency range resulting in a more linear output with greater top-end extension.

This is a highly advanced design with a sweet, detailed sound. Found in many high-end designs and is a top choice for DIY high-performance loudspeakers.
