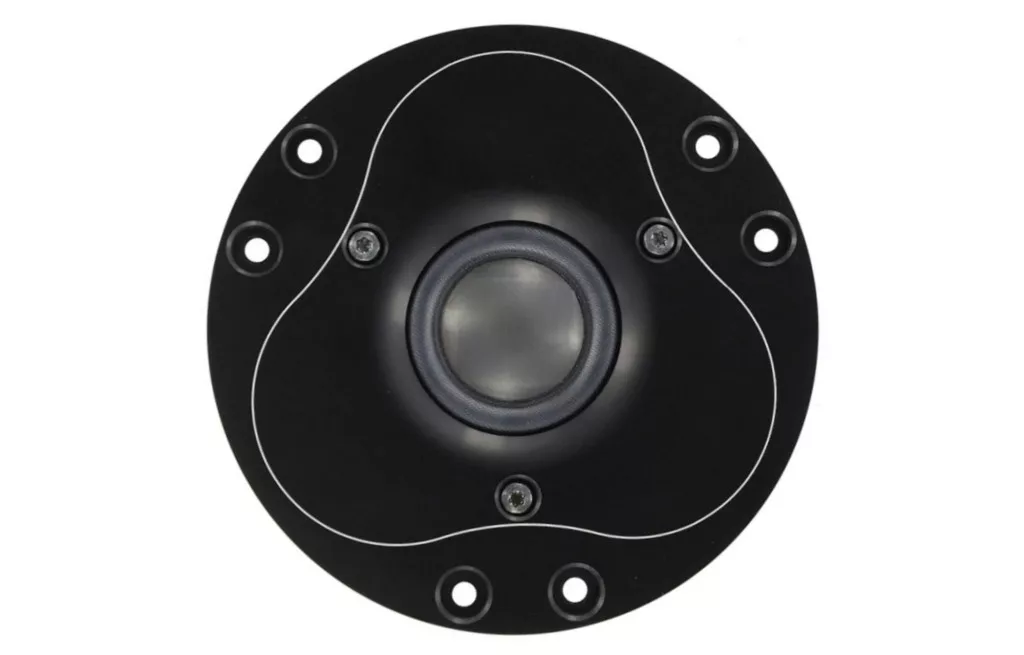

Beyond its extended frequency response, the Illuminator D3004/666000 excels in both clarity and dispersion. Its design ensures accurate vocal renditions and a wide, realistic stereo image. Listeners will experience a detailed soundscape no matter their position in the room, thanks to the tweeter's outstanding off-axis dispersion. This is achieved through a large roll surround and a textile dome diaphragm, both contributing to the tweeter's smooth response and minimal distortion.
The Scan-Speak Illuminator D3004/666000 is a prime choice for audio systems prioritizing exceptional sound quality. Its ability to deliver clear highs, detailed imaging, and a spacious soundscape makes it a perfect upgrade for discerning listeners.
Article number: D3004/666000
Tweeter Type: Dome
Tweeter Series: Illuminator
Cone / Dome Diameter: 26 mm
Power Handling (RMS): 90 Watts
Power Handling (max): 150 Watt
Impedance (Z): 4 Ohm
Sensitivity (SPL at 1m / 2.83V): 91.5 dB

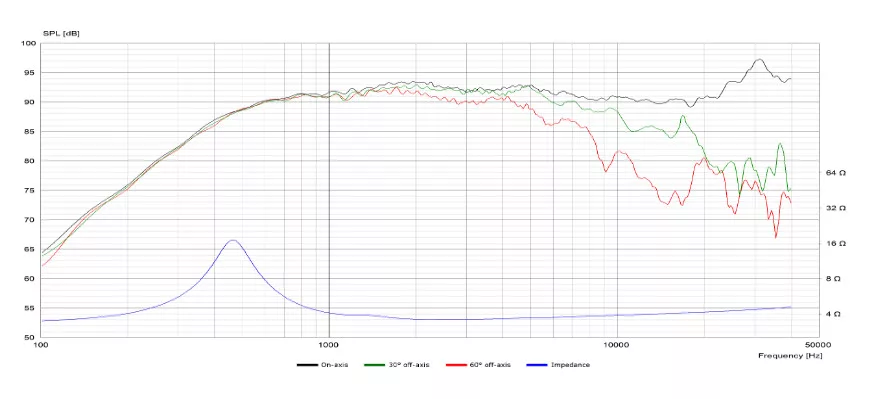

Frequency Response: 2.500 - 40.000 Hz
Resonant Frequency (Fs): 500 Hz
DC Resistance (Re): 3 Ohm
Voice Coil Inductance (Le): 0.03 mH
Mechanical Q (Qms): 3.79
Electromagnetic Q (Qes): 0.62
Total Q (Qts): 0.54

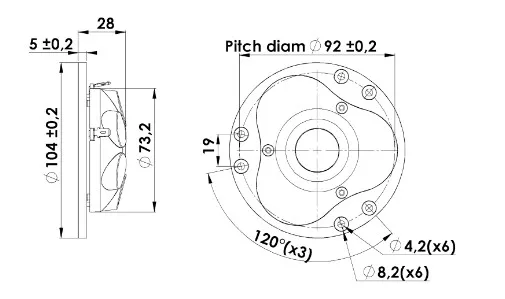

Overall Outside Diameter: 104 mm
Cutout Diameter: 73.2 mm
Depth: 28 mm
