Highlights
Horn Loaded High Sensitivity Tweeter
Low Damping Ferrofluid Cooling
Coated Textile Diaphragm
Dampened Cavity in Pole Piece
Textile dome
Formerly known as the Vifa H26TG05-06
Product details

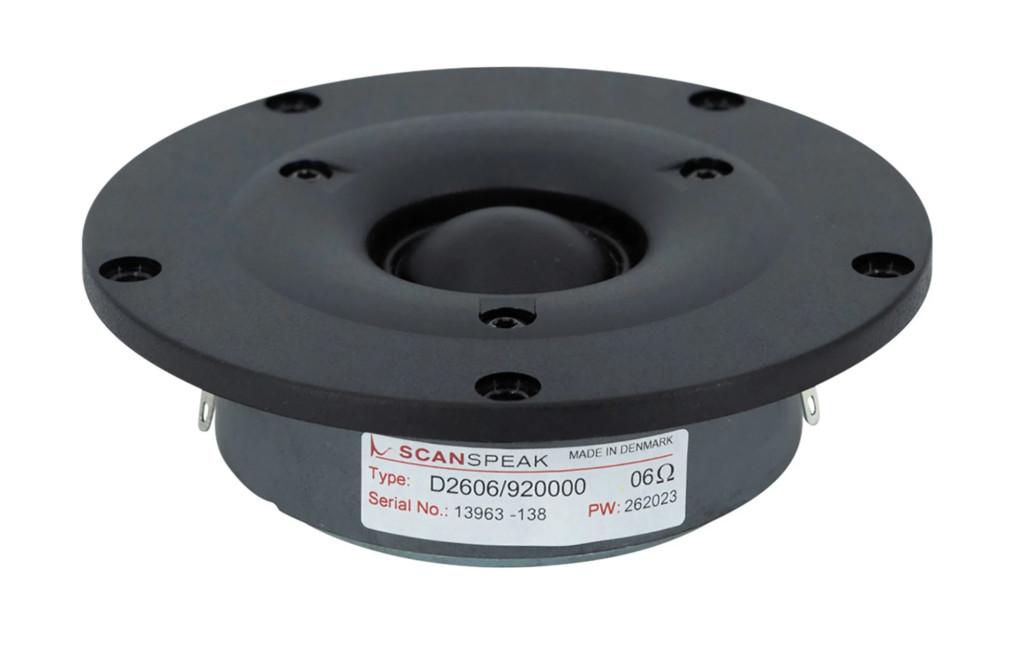

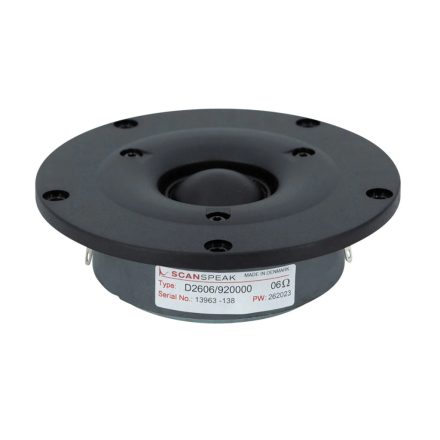

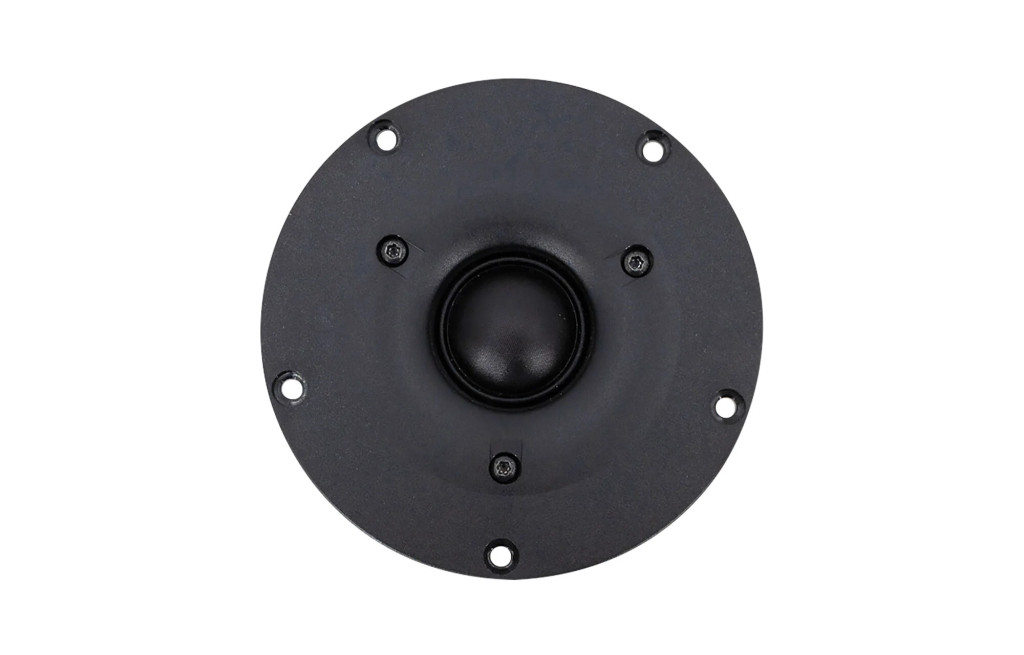

Scan-Speak Discovery H2606/920000 1" Horn Dome Tweeter
The Discovery H2606/9200 tweeter is a high efficiency tweeter with textile dome. This tweeter has a softer presence than similar metal or polymer dome horn tweeters. The H2606/9200 is also very flat response for a horn tweeter. Consider this Danish made tweeter when you are looking for added efficiency.
Specifications: Compliance Equivalent Volume (Vas): - ft.³ • BL Product (BL): 3.3 Tm • Mechanical Compliance of Suspension (Cms): - mm/N • Diaphragm Mass Inc. Airload (Mms): 0.4 g • Maximum Linear Excursion (Xmax): 0.2 mm • Surface Area of Cone (Sd): 5.7 cm2
Specifications
Article numberH2606/920000
EAN0696277268696
Tweeter TypeDome
Tweeter SeriesDiscovery Series
Cone / Dome Diameter25 mm | 1"
Power Handling (RMS)100 Watts
Power Handling (max)200 Watts
Impedance (Z)6 Ω
Sensitivity (SPL at 1m / 2.83V)95.2 dB
Resonant Frequency (Fs)1030 Hz
DC Resistance (Re)4.7 ohms
Voice Coil Inductance (Le)0.05 mH
Mechanical Q (Qms)2.1
Electromagnetic Q (Qes)1.2
Total Q (Qts)0.70
