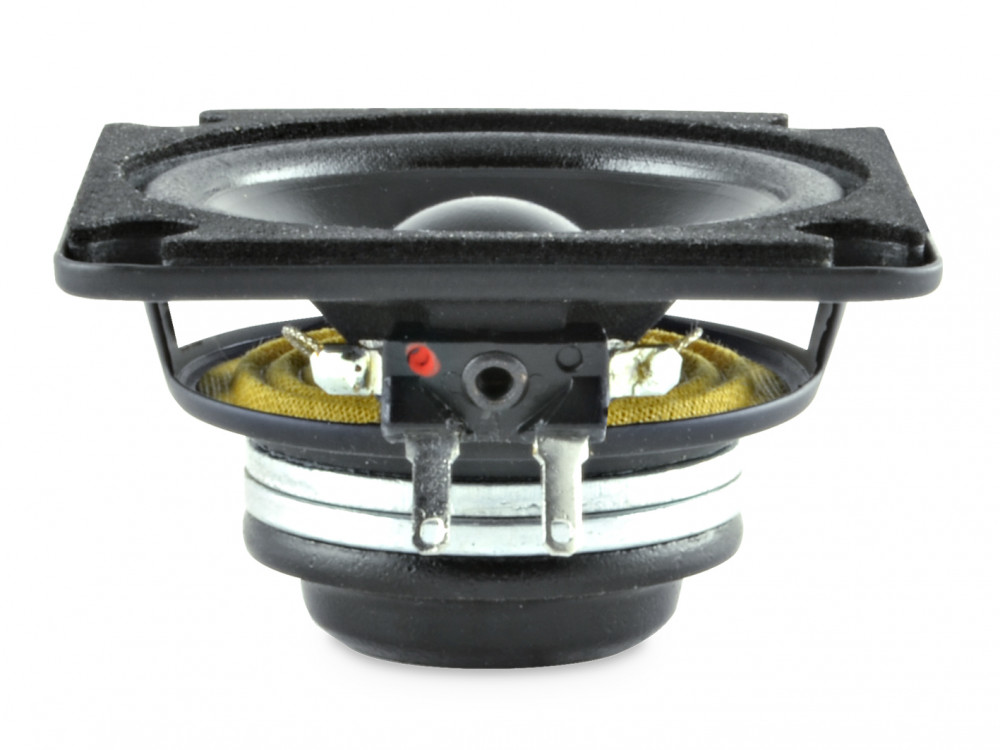

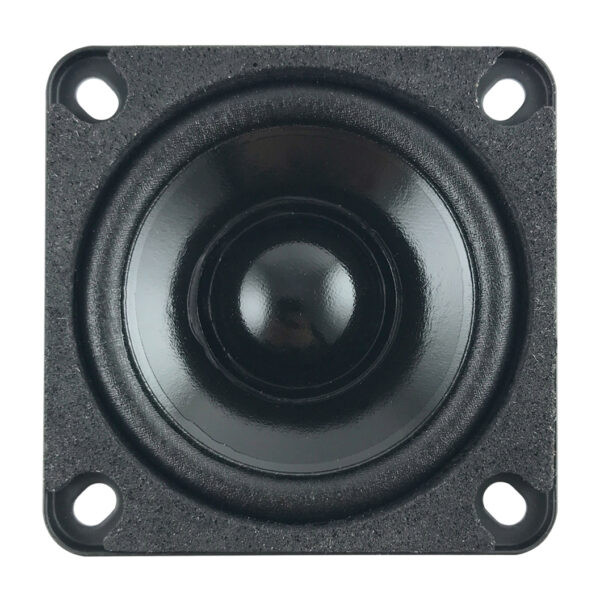

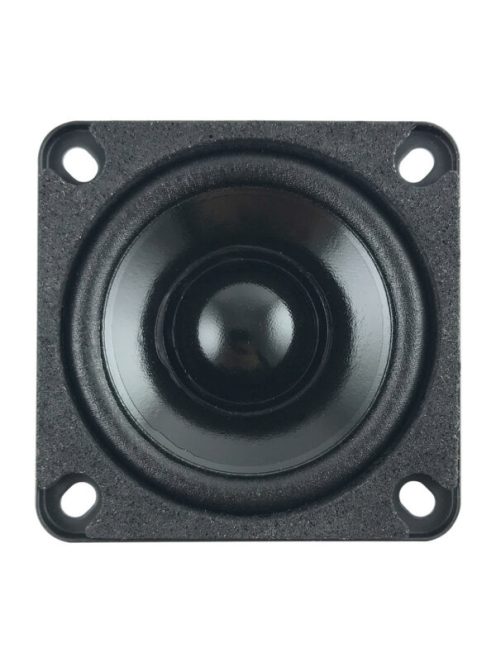

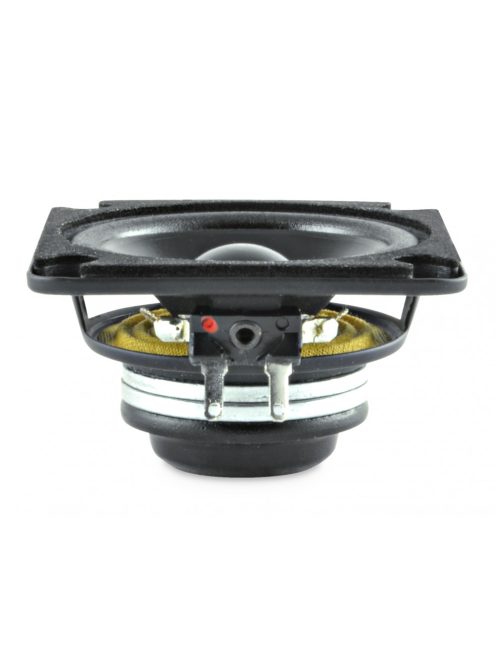

SICA 2,5 H 0,8 SL Full Range

23.04 € excl. VAT

SICA 2,5 H 0,8 SL Full Range

SICA 2,5 H 0,8 SL Full Range

SICA 2,5 H 0,8 SL Full Range

SICA 2,5 H 0,8 SL Full Range

SICA 2,5 H 0,8 SL Full Range

SICA 2,5 H 0,8 SL Full Range

Manufacturer

Sica

Further data

In stock

23.04 € excl. VAT

Details

General Specifications

Nominal Diameter	66 x 66 mm / 2.5 in
Nominal Impedance	8 Ω
Rated Power AES	20 W
Continuos Program Power	40 W
Sensitivity @ 1W/1m	85.6 dB
Voice Coil Diameter	20 mm (0.8")
Voice Coil Winding Depth	5 mm
Magnetic Gap Depth	3 mm
Flux Density	1.30 T
Magnet Weight	16 g
Net Weight	0.1 Kg

Constructive Characteristics

Magnet Type	Neodymium
Basket Material	Pressed Sheet Steel
Voice Coil Winding Material	Copper
Voice Coil Former Material	Kapton
Cone Material	Paper
Cone Treatment	Surface Damping Treatment
Surround Material	Treated Cloth
Dust Dome Material	Solid Paper

Mounting Information

Overall Diameter	66×66 mm
Baffle Cutout Diameter	61 mm
Mounting Holes	4 holes 4,5×6 on Ø75,5 mm
Total Depth	36.6 mm

Thiele/Small Parameters

Re	5.0 Ω
Qms	5.23
Qts	0.92
Cms	493 µm/N
Vas	0.2 l
X max	+/- 1.3 mm
N	1.14 %
Fs	185.0 Hz
Qes	1.11
Mms	1.5 g
Bxl	2.80 Tm
Sd	18.9 cm²
X var	+/- 2.6 mm
Le (1KHz)	0.12 mH

Info

Impedance, Z

8

Chassis diameter

2-2.5”

Article No.

SIC-Z000855C

Weight

100 g/db
