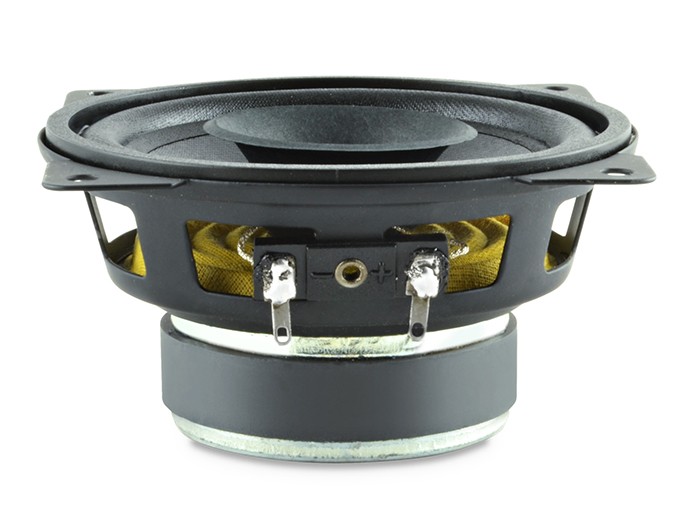

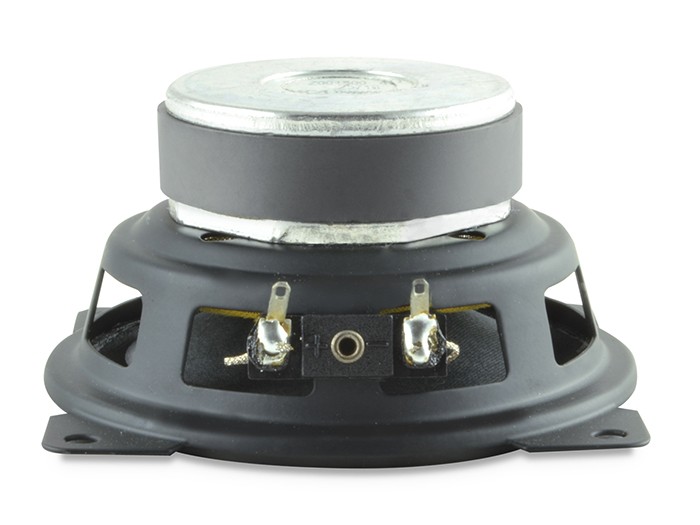

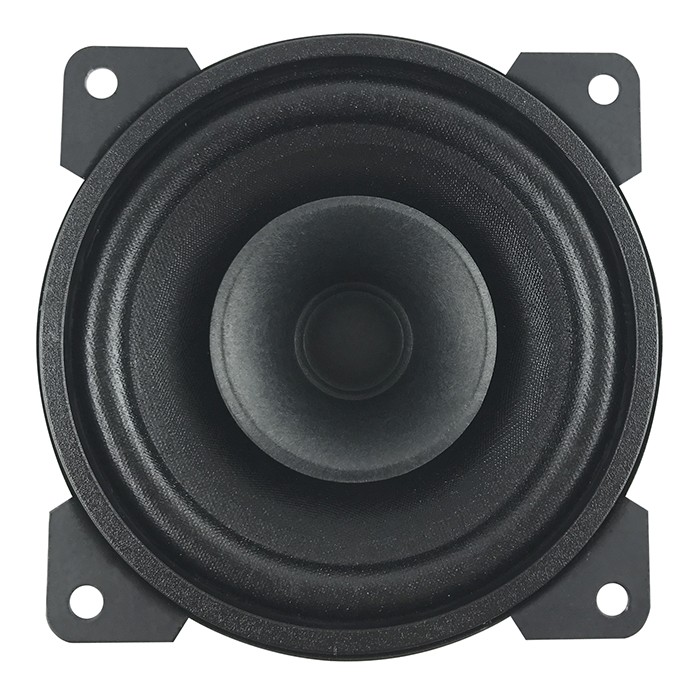

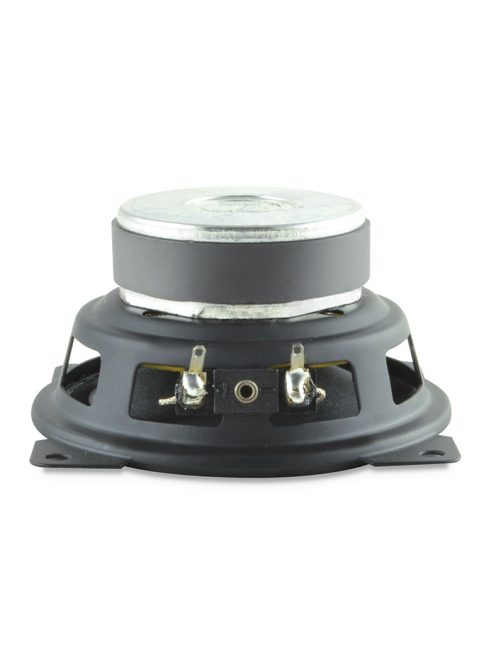

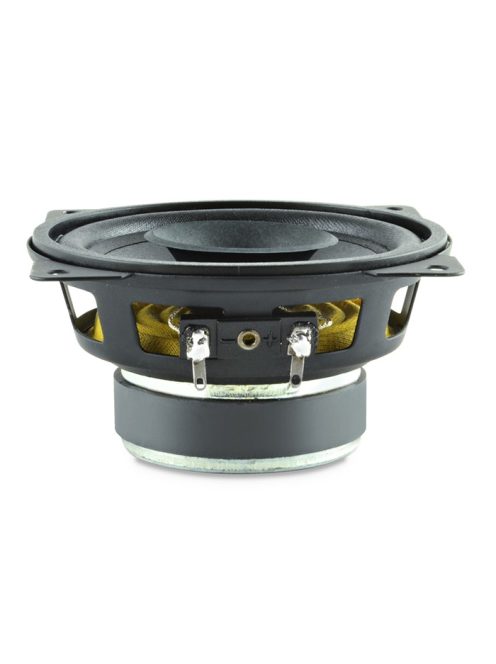

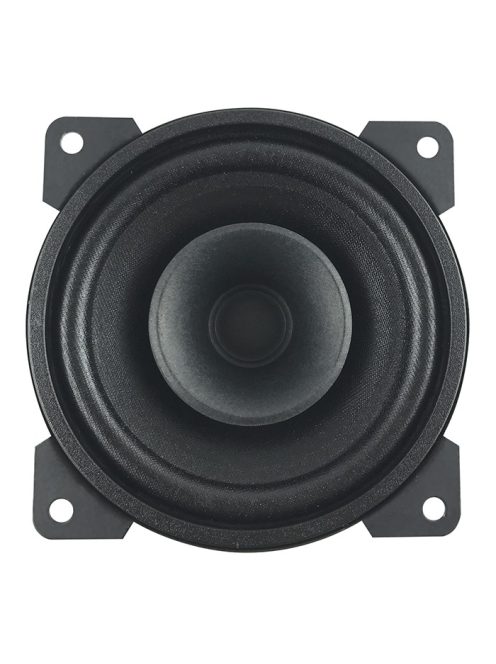

SICA 4 D 0,8 CS Full Range
SICA 4 D 0,8 CS Full Range
19.85 € excl. VAT

SICA 4 D 0,8 CS Full Range

SICA 4 D 0,8 CS Full Range
SICA 4 D 0,8 CS Full Range
SICA 4 D 0,8 CS Full Range
SICA 4 D 0,8 CS Full Range
SICA 4 D 0,8 CS Full Range
SICA 4 D 0,8 CS Full Range
SICA 4 D 0,8 CS Full Range
SICA 4 D 0,8 CS Full Range

4" | 70 W

Details
Manufacturer
Sica
Further data
In stock
19.85 € excl. VAT
Details
4 D 0,8 CS Z001300
HIGHLIGHTS
Dual Cone
Nominal overall diameter 4"
Nominal voice coil diameter 20 mm
Magnet material Ferrite
Basket material Pressed Sheet Steel
Power 70 W
Sensitivity 87.5 dB

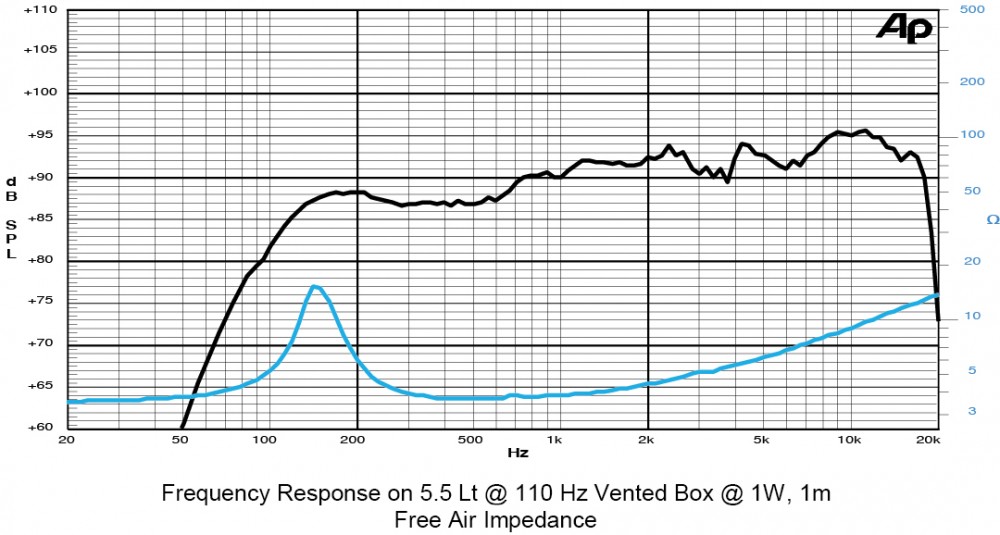

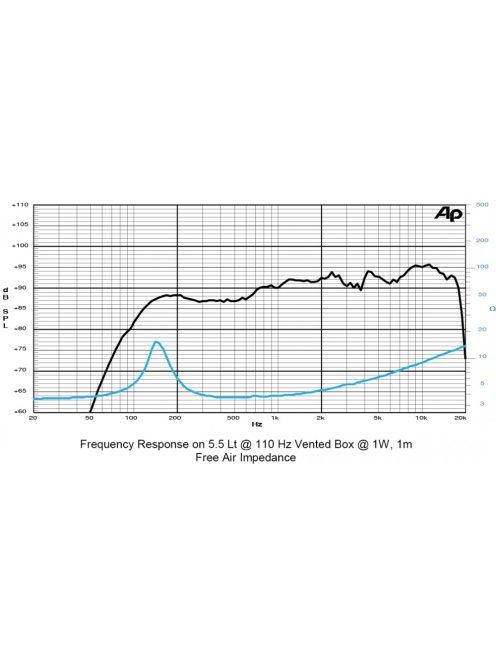

Frequency range 140-20000 Hz
GENERAL SPECIFICATIONS
Nominal Diameter 4 in / 100 mm
Nominal Impedence 4 Ω
Rated Power AES (1) 35 W
Continuous Program Power (2) 70 W
Sensitivity @ 1W/1m (3) 87.5 dB
Voice Coil Diameter 20 mm / 0.8 in
Voice Coil Winding Depth 5 mm
Magnetic Gap Depth 4 mm
Flux Density 1.10 T
Magnet Weight 154 g
Net Weight 0.4 kg
CONSTRUCTIVE CHARACTERISTICS
Magnet Ferrite
Basket Material Pressed Sheet Steel
Voice Coil Winding Material Copper
Voice Coil Former Material Epotex
Cone Material Paper
Cone Treatment No
Surround Material Treated Cloth
Dust Dome Material Solid Paper
MOUNTING INFORMATION
Overall Diameter 100 mm
Baffle Cutout Diameter 90 mm
Mounting Holes 4 holes Ø5 on Ø116 mm
Total Depth 50 mm
THIELE/SMALL PARAMETERS
Re 3.0 Ω
Qms 4.20
Qts 0.92
Cms 416 µm/N
Vas 1.2 l
X max +/- 1.3 mm
N 0.26 %
Fs 140 Hz
Qes 1.18
Mms 3.1 g
Bxl 2,65 Tm
Sd 44.2 cm²
X var +/- 3.0 mm
Le 0.14 mH
Info
Impedance, Z
4
Chassis diameter
4-4.5”
Article No.
SIC-Z001300C
Weight
400 g/db
Letöltések
Z001300.pdf
