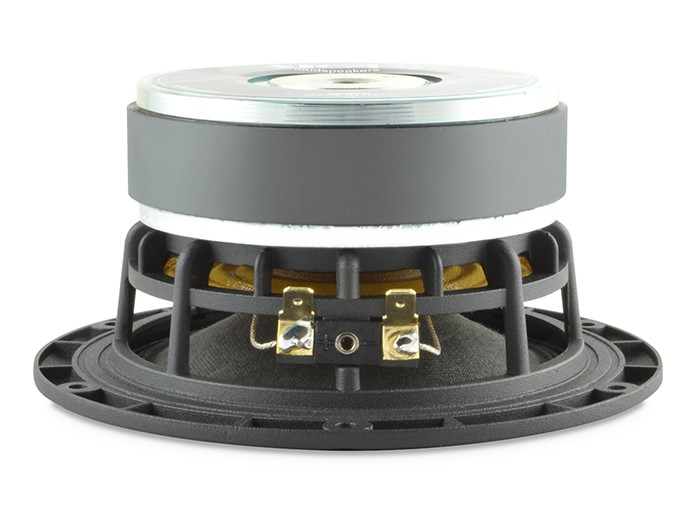

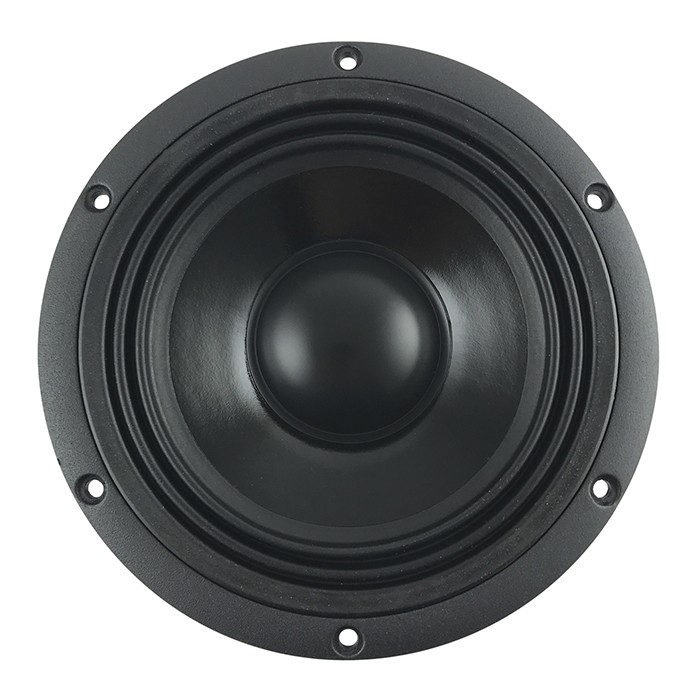

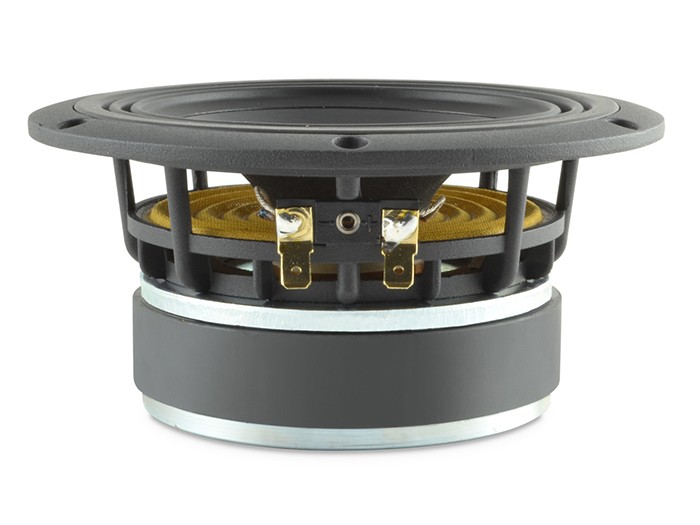

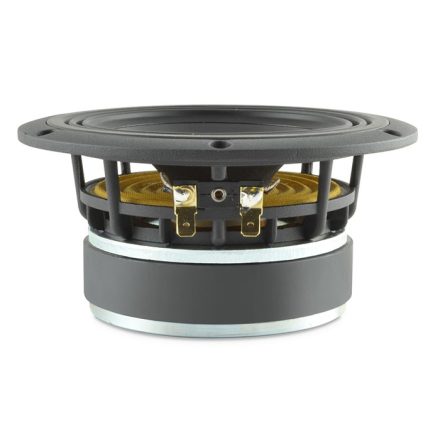

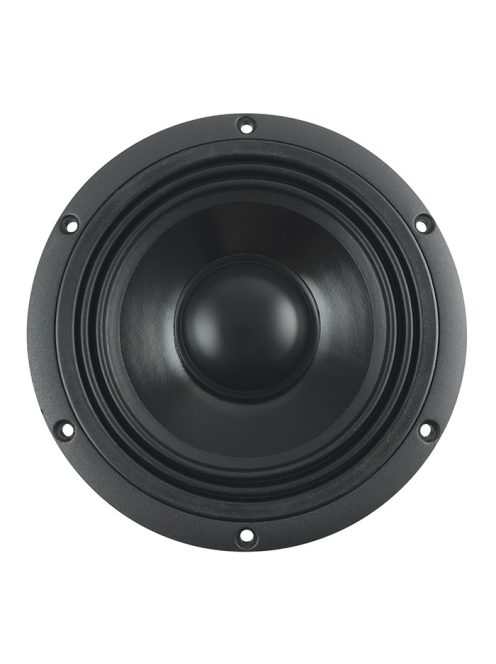

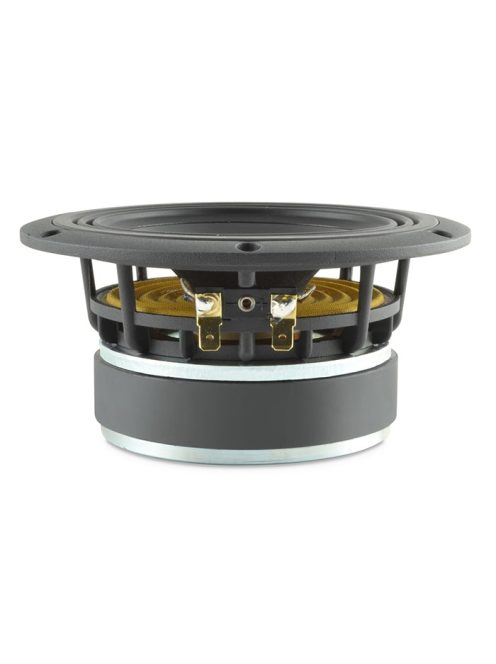

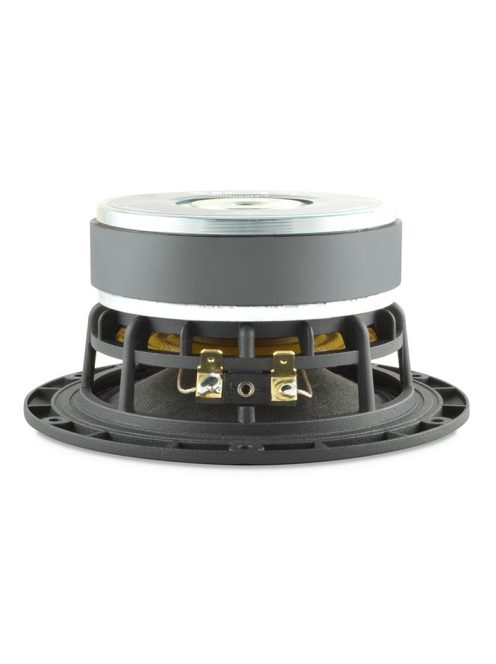

SICA 5,5 H 1,5 CP mid-woofer

64.33 € excl. VAT

SICA 5,5 H 1,5 CP mid-woofer

SICA 5,5 H 1,5 CP mid-woofer

SICA 5,5 H 1,5 CP mid-woofer

SICA 5,5 H 1,5 CP mid-woofer

SICA 5,5 H 1,5 CP mid-woofer

SICA 5,5 H 1,5 CP mid-woofer

SICA 5,5 H 1,5 CP mid-woofer

SICA 5,5 H 1,5 CP mid-woofer

Manufacturer

Sica

Further data

In stock

64.33 € excl. VAT

Details

General Specifications

Nominal Diameter	140 mm / 5,5 in
Nominal Impedance	8 Ω
Rated Power AES	120 W
Continuos Program Power	240 W
Sensitivity @ 1W/1m	86.7 dB
Voice Coil Diameter	38 mm (1.5")
Voice Coil Winding Depth	15 mm
Magnetic Gap Depth	6 mm
Flux Density	0.98 T
Magnet Weight	515 g
Net Weight	1.5 Kg

Constructive Characteristics

Magnet Type	Ferrite
Basket Material	Aluminium Die-Cast
Voice Coil Winding Material	Copper
Voice Coil Former Material	Kapton
Cone Material	Paper
Cone Treatment	Surface Damping Treatment
Surround Material	Rubber
Dust Dome Material	Rubber

Mounting Information

Overall Diameter	148 mm
Baffle Cutout Diameter	113 mm
Mounting Holes	6 holes Ø5 on Ø139 mm
Total Depth	71.5 mm

Thiele/Small Parameters

Re	6.1 Ω
Qms	4.15
Qts	0.37
Cms	897 µm/N
Vas	7.8 l
X max	+/- 4.5 mm
N	0.21 %
Fs	48.5 Hz
Qes	0.41
Mms	12.0 g
Bxl	7.40 Tm
Sd	78.5 cm²
X var	+/- 6.5 mm
Le (1KHz)	0.53 mH

Info

Impedance, Z

8

Chassis diameter

5-5.5”

Article No.

SIC-Z002800C

Weight

1.5 kg/db
