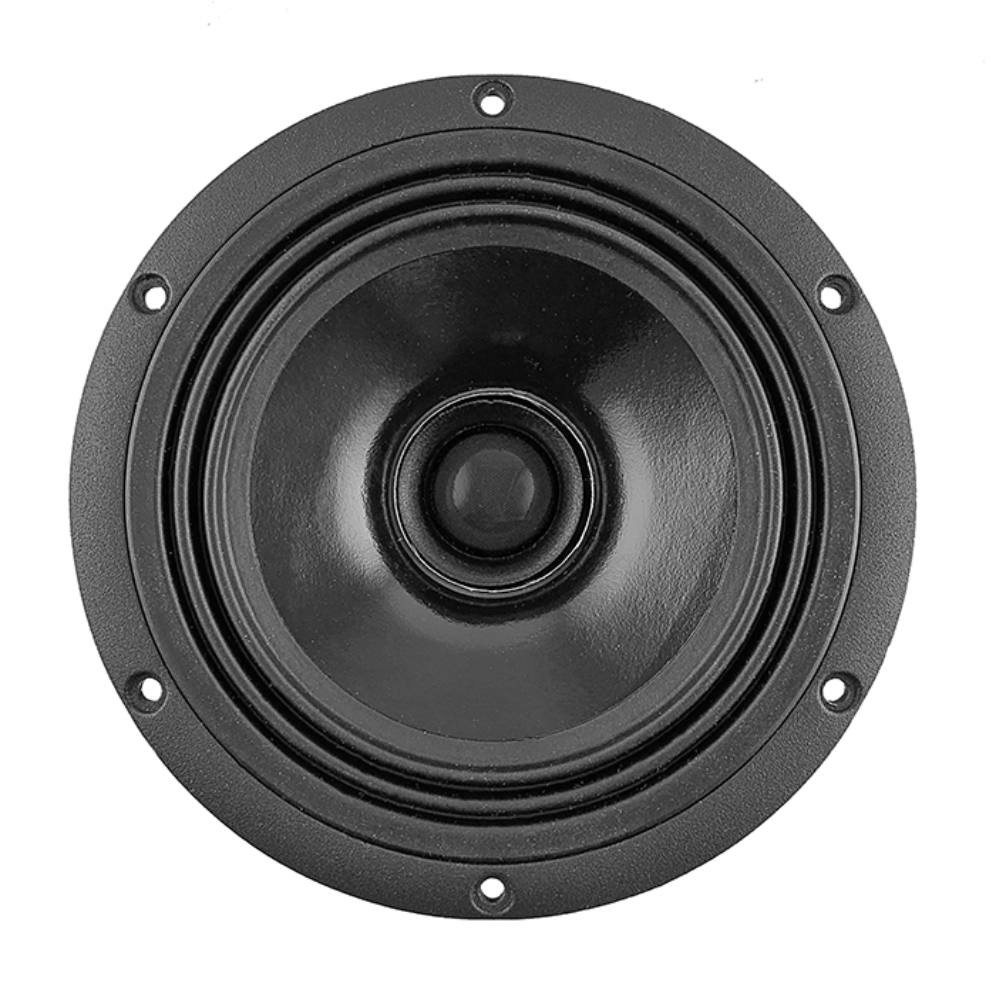

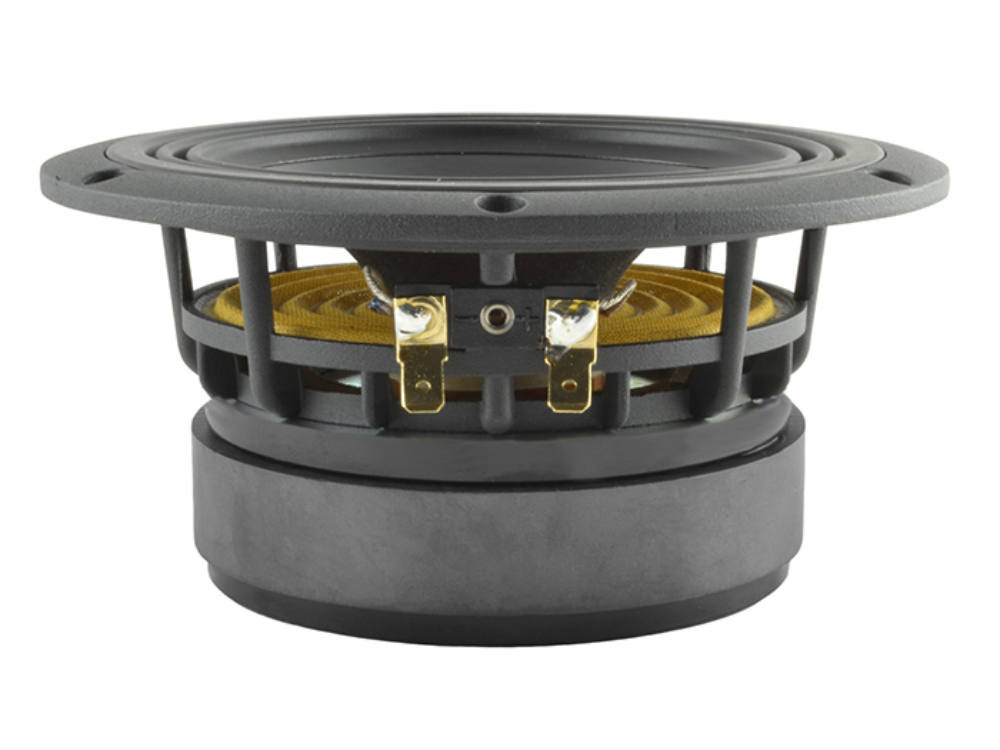

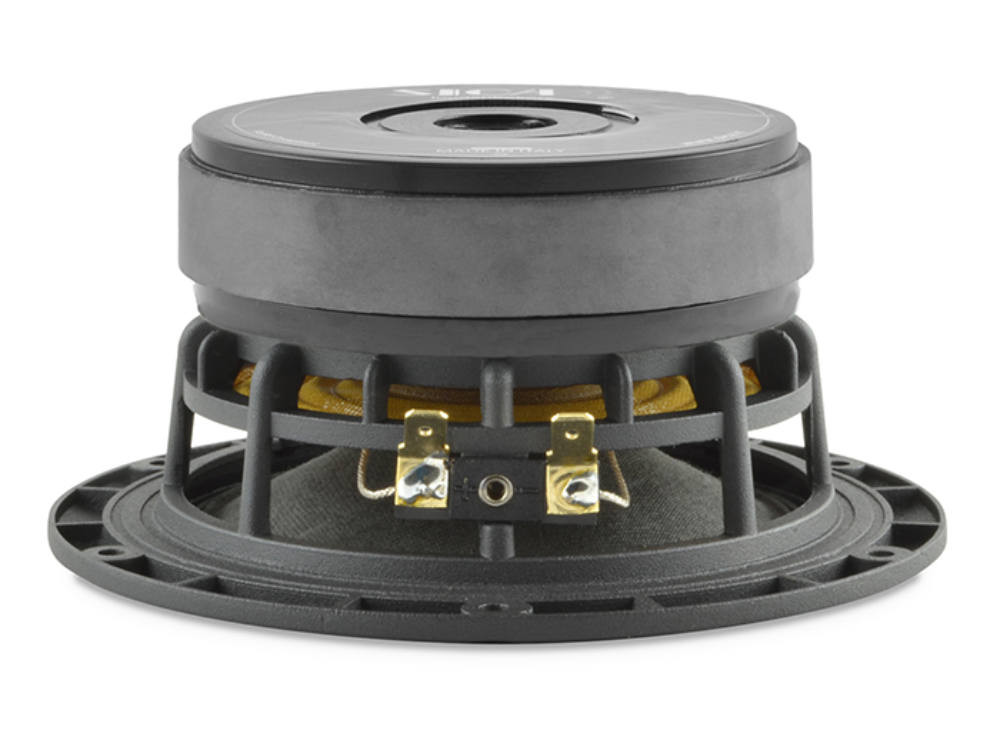

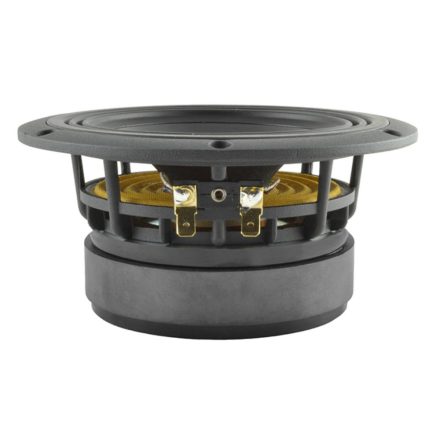

SICA 5,5 C 1,5 CP Coaxial 8+8Ω

SICA 5,5 C 1,5 CP Coaxial 8+8Ω
SICA 5,5 C 1,5 CP Coaxial 8+8Ω
SICA 5,5 C 1,5 CP Coaxial 8+8Ω
SICA 5,5 C 1,5 CP Coaxial 8+8Ω
SICA 5,5 C 1,5 CP Coaxial 8+8Ω
SICA 5,5 C 1,5 CP Coaxial 8+8Ω
SICA 5,5 C 1,5 CP Coaxial 8+8Ω
SICA 5,5 C 1,5 CP Coaxial 8+8Ω
SICA 5,5 C 1,5 CP Coaxial 8+8Ω
SICA 5,5 C 1,5 CP Coaxial 8+8Ω
SICA 5,5 C 1,5 CP Coaxial 8+8Ω
SICA 5,5 C 1,5 CP Coaxial 8+8Ω
SICA 5,5 C 1,5 CP Coaxial 8+8Ω
SICA 5,5 C 1,5 CP Coaxial 8+8Ω
SICA 5,5 C 1,5 CP Coaxial 8+8Ω
SICA 5,5 C 1,5 CP Coaxial 8+8Ω
Shipping within (if available from supplier)
3-6 weeks
Manufacturer
Sica
Further data
Out of stock - orderable
Details

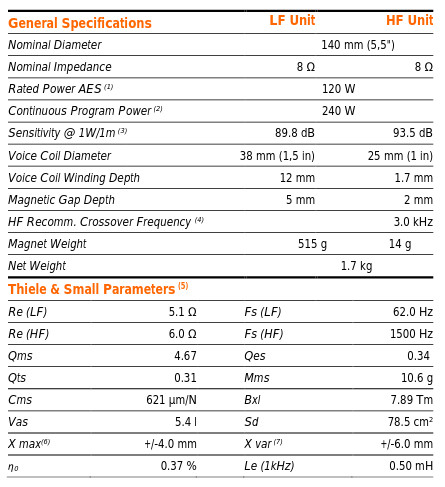

General Specifications

LF Unit / HF Unit

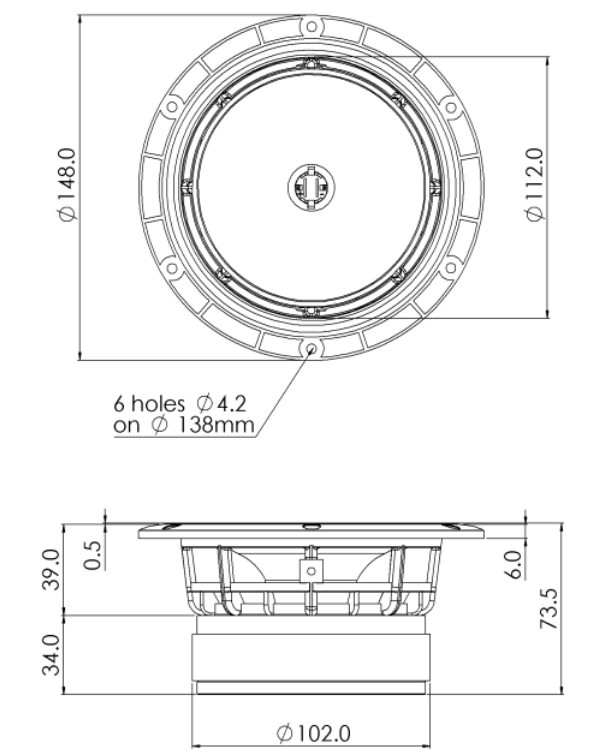

Nominal Diameter 140mm (5,5")

Nominal Impedance 8Ω / 8Ω

Rated Power AES(1) 120W Continuous

Program Power(2): 240W

Sensitivity @ 1W/1m(3): 89.8dB / 93.5dB

Voice Coil Diameter: 38mm (1,5in) / 25mm (1in)

Voice Coil Winding Depth: 12mm / 1.7mm

Magnetic Gap Depth: 5mm / 2mm HF Recomm.

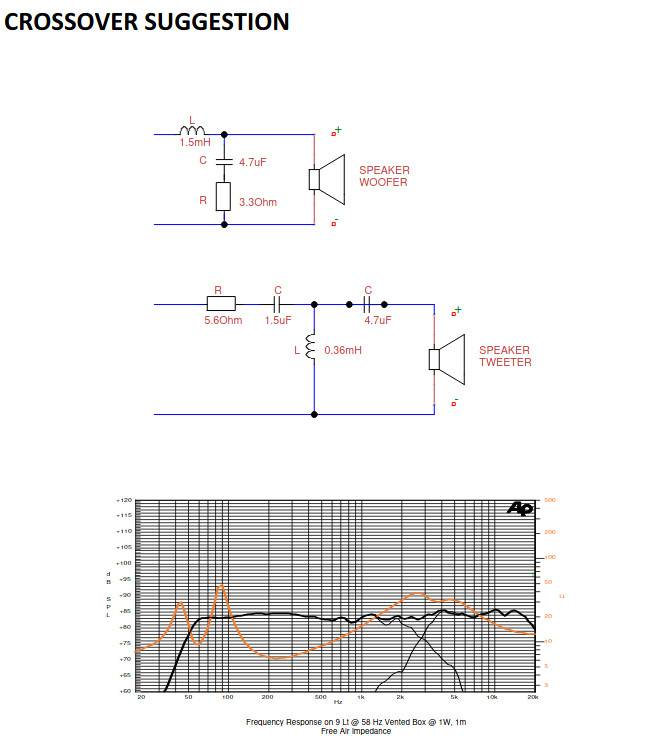

Crossover Frequency(4) 3.0kHz

Magnet Weight 515g / 14g

Thiele & Small Parameters(5)

Re(LF): 5.1ΩF

s(LF): 62.0Hz

Re (HF): 6.0Ω

Fs (HF): 1500Hz

Qms: 4.67

Qes: 0.34Qts0.31

Mms: 10.6g

Cms: 621μm/N

Bxl: 7.89Tm

Vas: 5.4l

Sd: 78.5cm2

X max(6): +/-4.0mm

X var(7): +/-6.0mm

η0: 0.37%

Le (1kHz): 0.50mH

Info
Impedance, Z
8+8
Chassis diameter
5-5.5”
Article No.
SIC-Z002810C
Weight
1.7 kg/db
