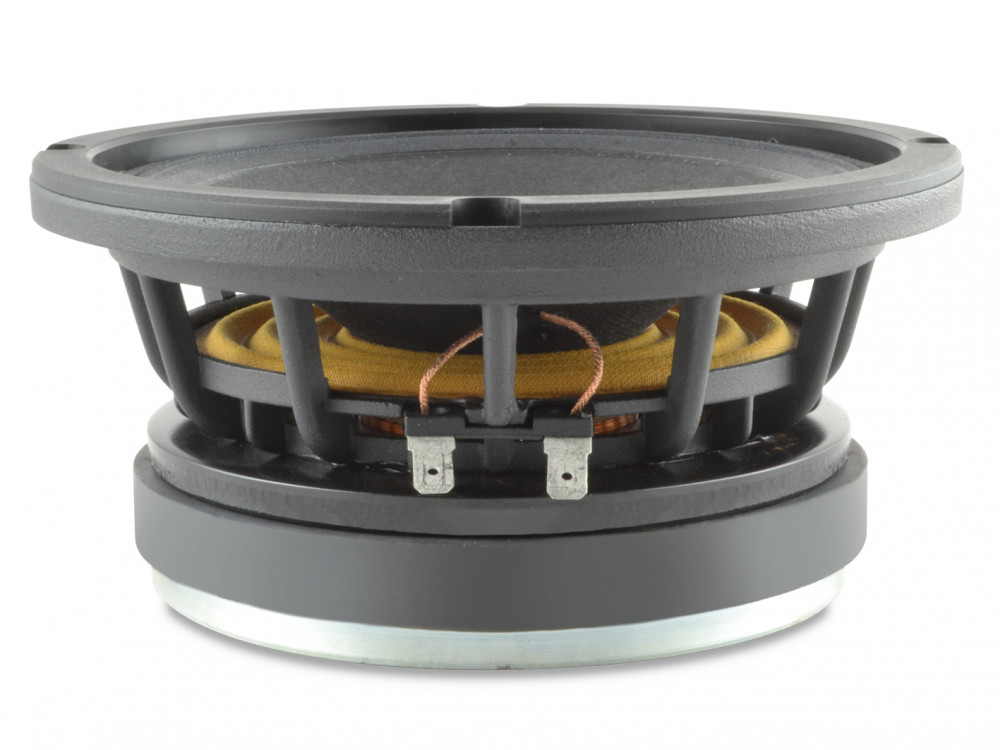

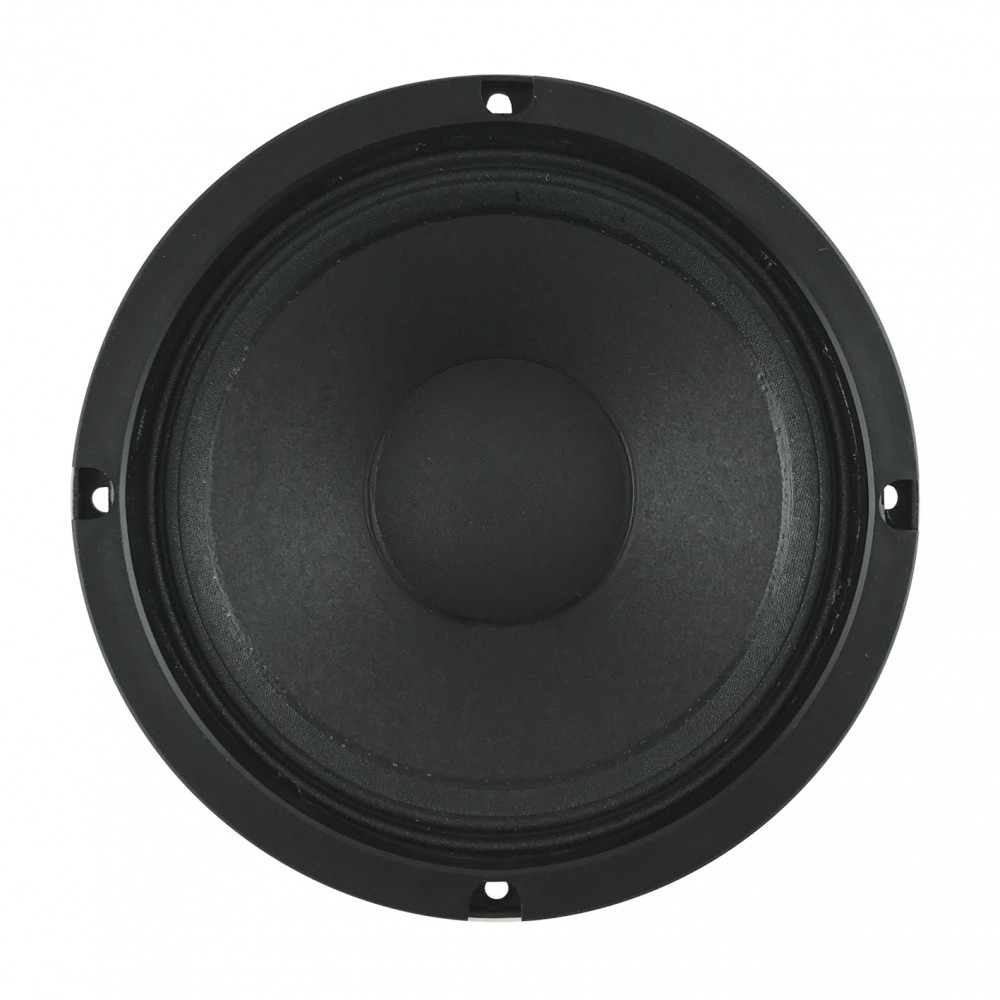

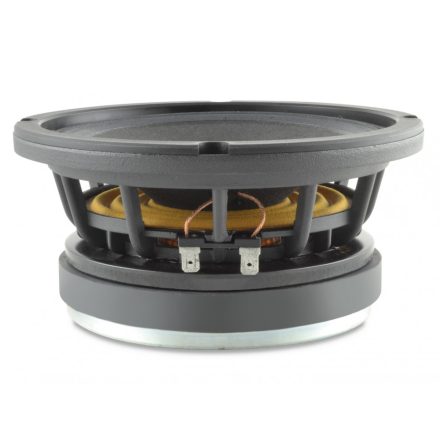

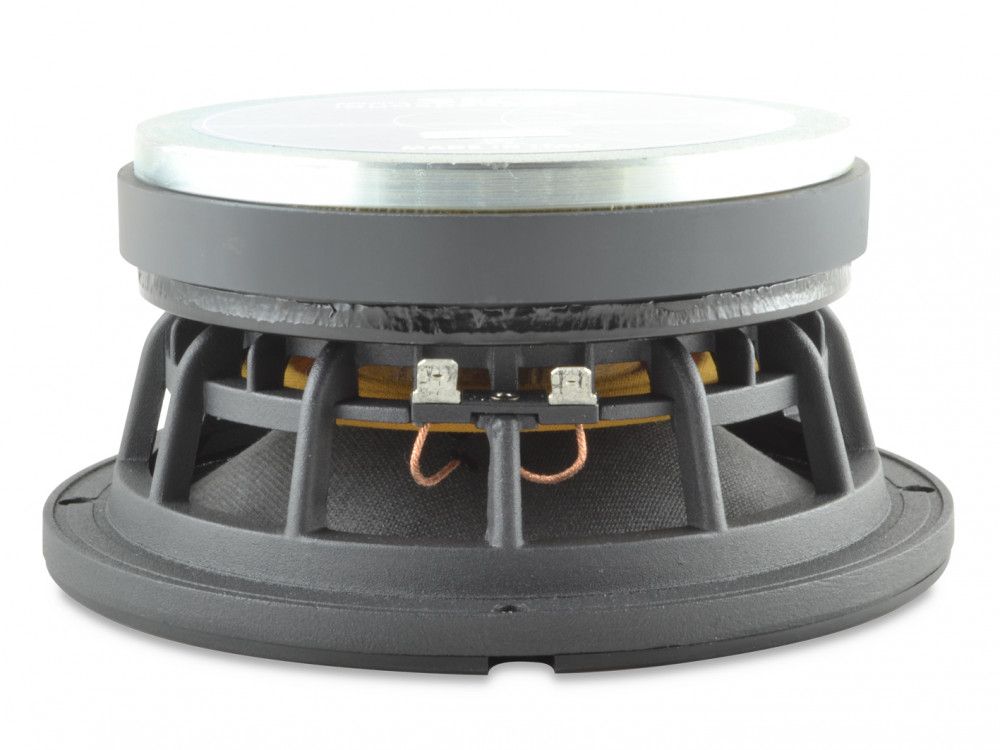

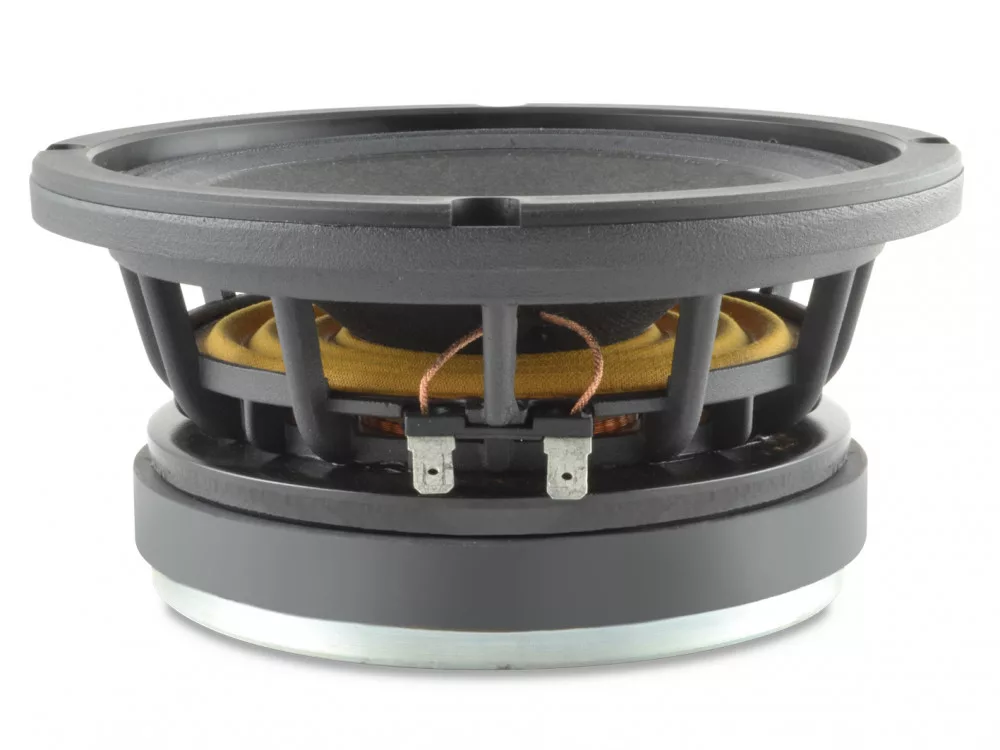

SICA 6 M 2 CP Midrange

SICA 6 M 2 CP Midrange

SICA 6 M 2 CP Midrange

SICA 6 M 2 CP Midrange

SICA 6 M 2 CP Midrange

SICA 6 M 2 CP Midrange

SICA 6 M 2 CP Midrange

SICA 6 M 2 CP Midrange

Shipping within (if available from supplier)

3-6 weeks

Manufacturer

Sica

Further data

Out of stock - orderable

Details

General Specifications

Nominal Diameter	166 mm / 6 in
Nominal Impedance	4 Ω
Rated Power AES	150 W
Continuos Program Power	300 W
Sensitivity @ 1W/1m	96.8 dB
Voice Coil Diameter	50 mm (2")
Voice Coil Winding Depth	9 mm
Magnetic Gap Depth	8 mm
Flux Density	1.14 T
Magnet Weight	810 g
Net Weight	2.7 Kg

Constructive Characteristics

Magnet Type	Ferrite
Basket Material	Aluminium Die-Cast
Voice Coil Winding Material	Aluminium
Voice Coil Former Material	Kapton
Cone Material	Paper
Cone Treatment	No
Surround Material	Treated Cloth
Dust Dome Material	Paper Ogive

Mounting Information

Overall Diameter	166 mm
Baffle Cutout Diameter	143 mm
Mounting Holes	4 holes 6×5 on Ø155 mm
Total Depth	77.8 mm

Thiele/Small Parameters

Re	3.1 Ω
Qms	4.05
Qts	0.35
Cms	129 µm/N
Vas	3.5 l
X max	+/- 2.0 mm
N	2.21 %
Fs	135 Hz
Qes	0.38
Mms	10.8 g
Bxl	8.62 Tm
Sd	138.9 cm²
X var	+/- 4.0 mm
Le (1KHz)	0.38 mH

Info

Impedance, Z

4

Chassis diameter

6-6.5”

Article No.

SIC-Z004079C

Weight

2.7 kg/db
