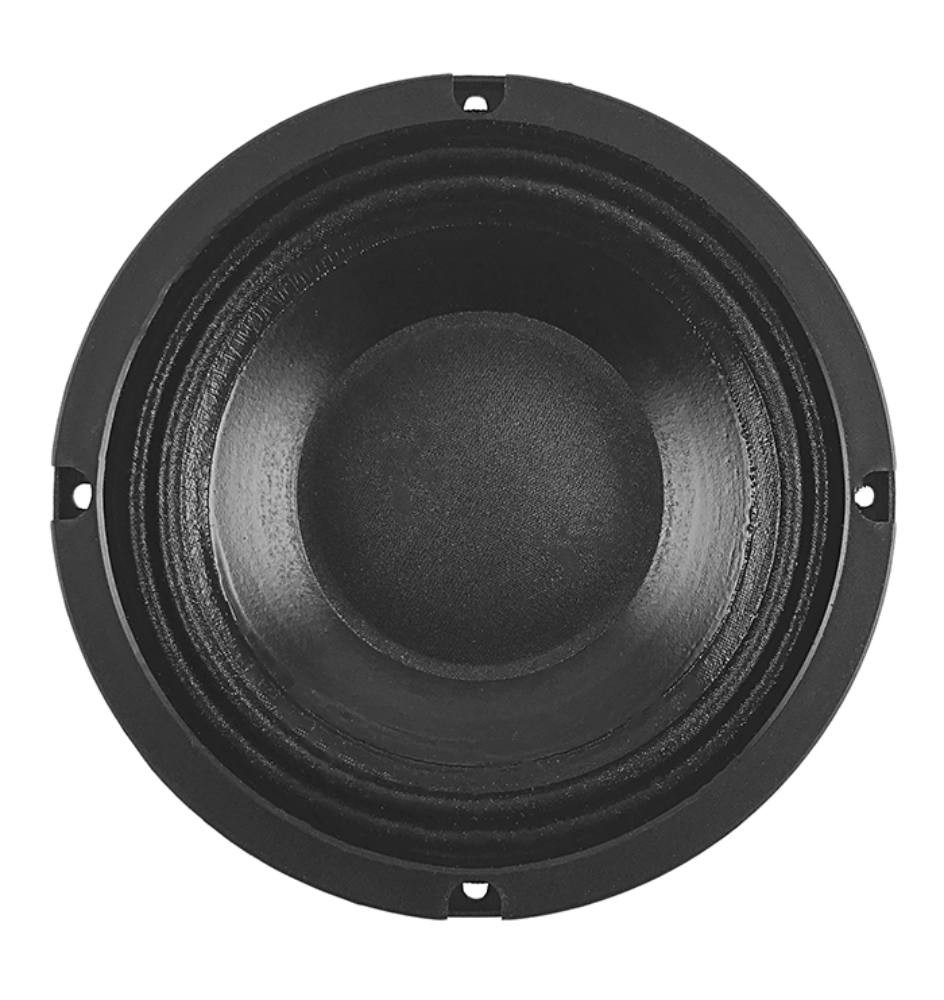

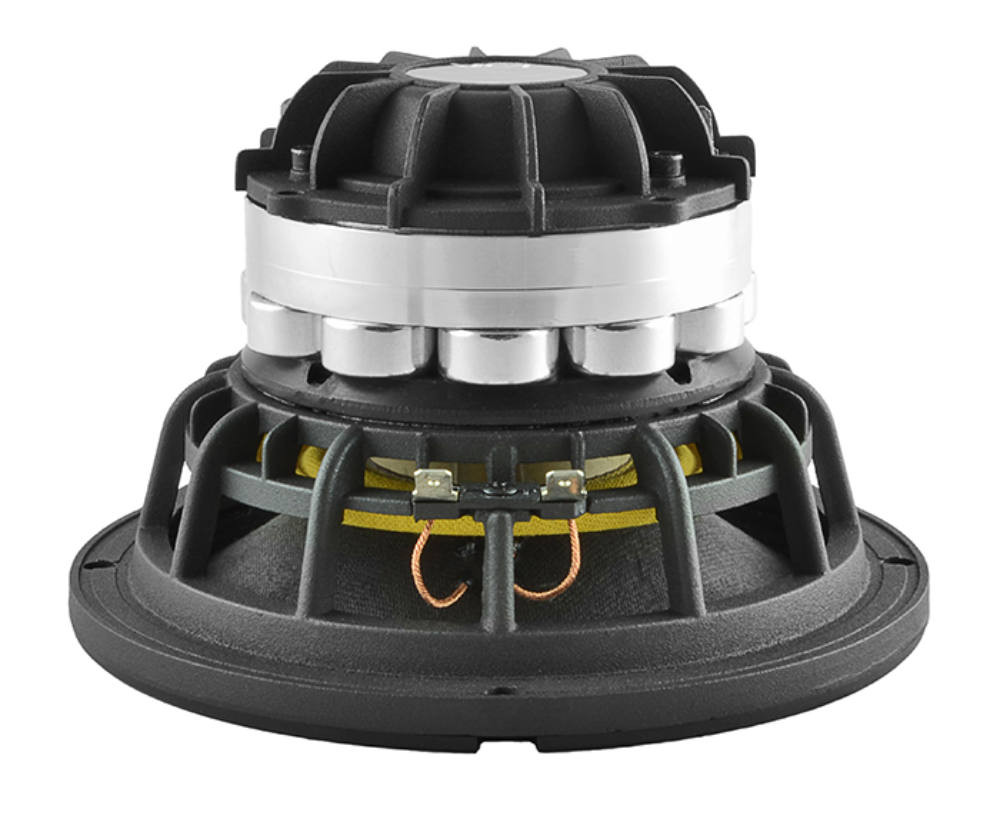

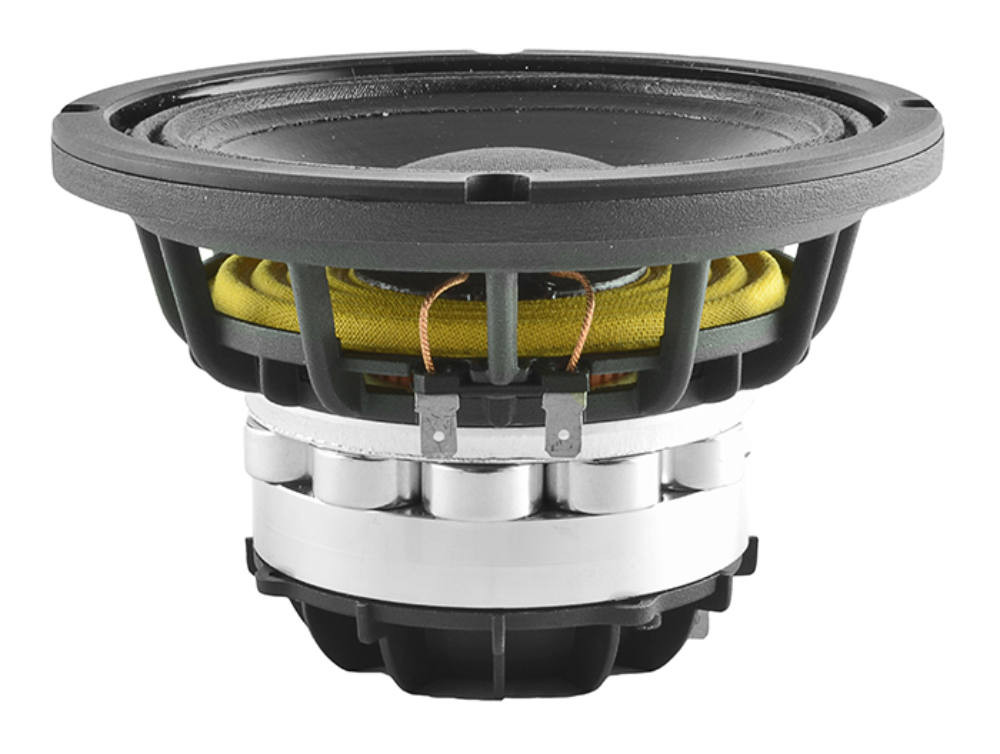

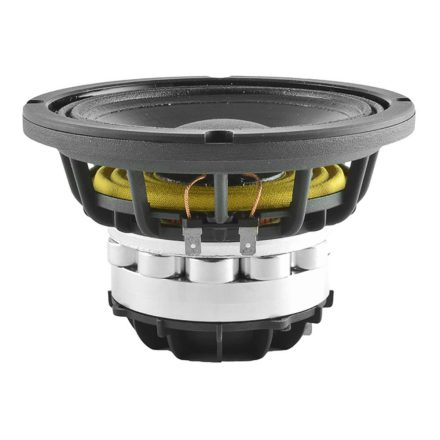

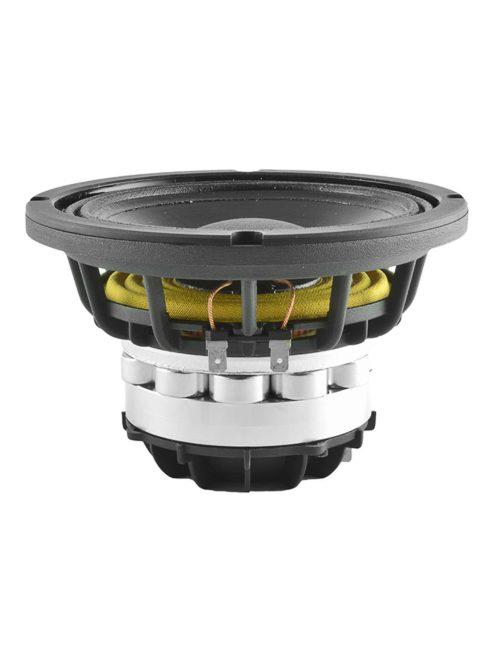

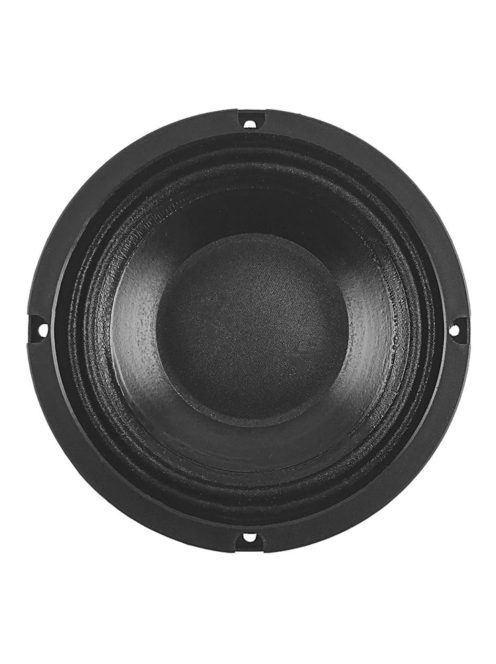

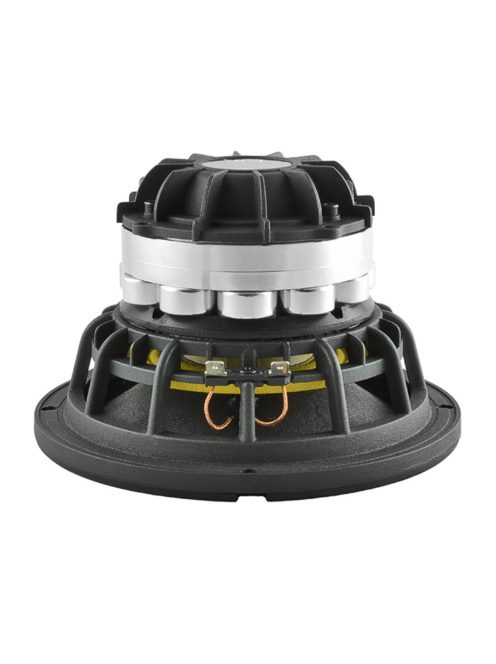

SICA 6 Cx 2 PL P Coaxial

SICA 6 Cx 2 PL P Coaxial

SICA 6 Cx 2 PL P Coaxial

SICA 6 Cx 2 PL P Coaxial

SICA 6 Cx 2 PL P Coaxial

SICA 6 Cx 2 PL P Coaxial

SICA 6 Cx 2 PL P Coaxial

SICA 6 Cx 2 PL P Coaxial

SICA 6 Cx 2 PL P Coaxial

SICA 6 Cx 2 PL P Coaxial

SICA 6 Cx 2 PL P Coaxial

SICA 6 Cx 2 PL P Coaxial

SICA 6 Cx 2 PL P Coaxial

SICA 6 Cx 2 PL P Coaxial

Shipping within (if available from supplier)

3-6 weeks

Manufacturer

Sica

Further data

Out of stock - orderable

Details

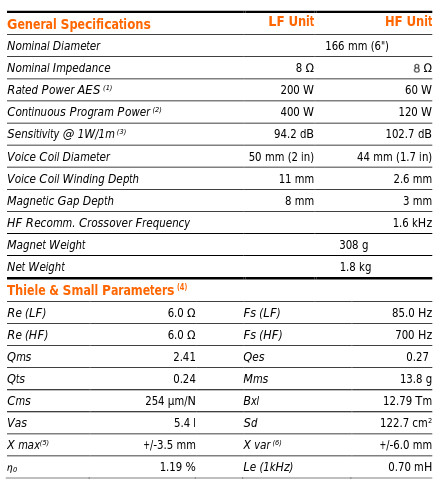

General Specifications

Nominal Diameter	166 mm / 6 in
Nominal Impedance LF	8 Ω
Nominal Impedance HF	8 Ω
Rated Power AES LF	200 W
Rated Power AES HF	60 W
Continuos Program Power LF	400 W
Continuos Program Power HF	120 W
Sensitivity @ 1W/1m LF	94.2 dB
Sensitivity @ 1W/1m HF	102.7 dB
Voice Coil Diameter LF	50 mm (2")
Voice Coil Diameter HF	44 mm (1.7")
Voice Coil Winding Depth LF	11 mm
Voice Coil Winding Depth HF	2.6 mm
Magnetic Gap Depth LF	8 mm
Magnetic Gap Depth HF	3 mm
HF Recommended Crossover Frequency	1.6 KHz
Net Weight	1.8 Kg
Magnet Weight	308 g

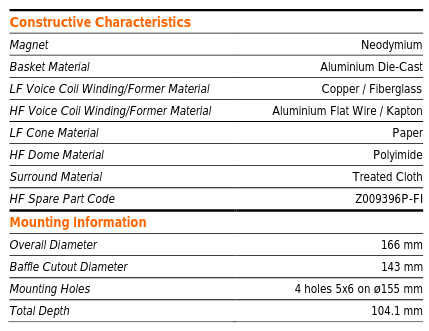

Constructive Characteristics

Magnet Type	Neodymium
Basket Material	Aluminium Die-Cast
Surround Material	Treated Cloth
LF Voice Coil Winding/Former Material	Copper / Fiberglass
HF Voice Coil Winding/Former Material	Aluminium Flat Wire / Kapton
LF Cone Material	Paper
HF Dome Material	Polymide
HF Spare Parts Code	Z009396P-FI

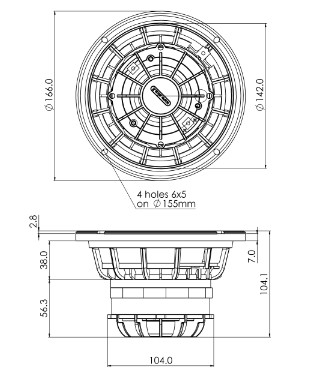

Mounting Information

Overall Diameter	166 mm
Baffle Cutout Diameter	143 mm
Mounting Holes	4 holes 5×6 on Ø155 mm
Total Depth	104.1 mm

Thiele/Small Parameters

Qms	2.41
Qts	0.24
Cms	254 µm/N
Vas	5.4 l
X max	+/- 3.5 mm
N	1.19 %
Qes	0.27
Mms	13.8 g
Bxl	12.79 Tm
Sd	122.7 cm²
X var	+/- 6.0 mm
Le (1KHz)	0.70 mH
Re (LF)	6.0 Ω
Re (HF)	6.0 Ω
Fs (LF)	85.0 Hz
Fs (HF)	700 Hz

Info

Impedance, Z

8+8

Chassis diameter

6-6.5”

Régi cikkszám

SIC-Z004091P-8+8

Article No.

SIC-Z004091P-8-8

Weight

1.8 kg/db
