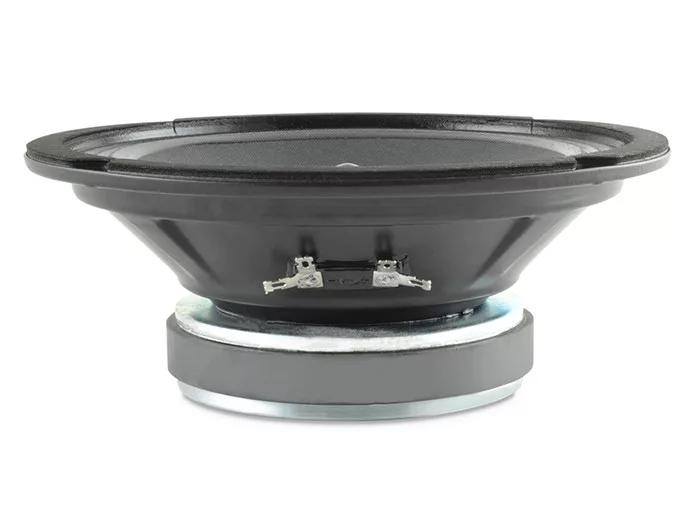

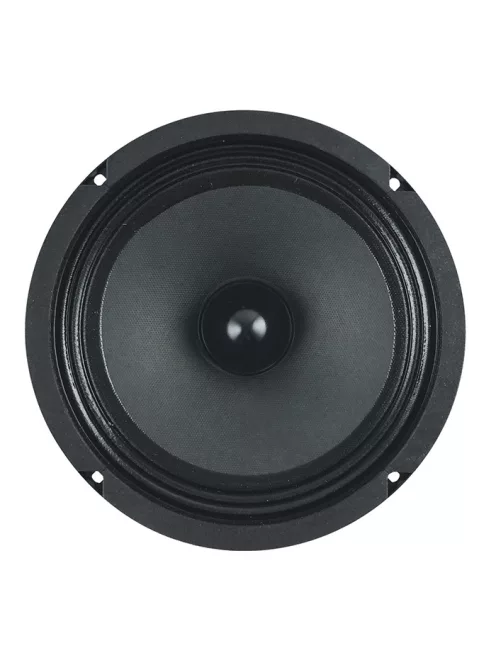

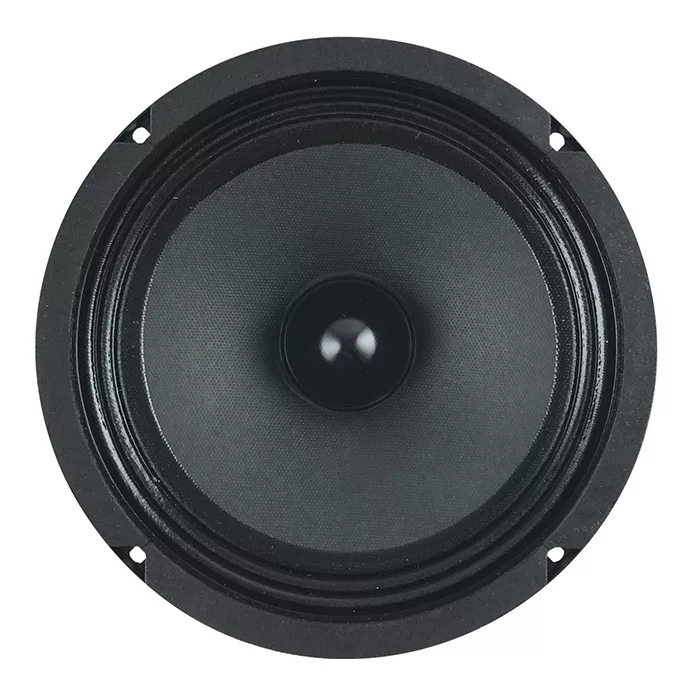

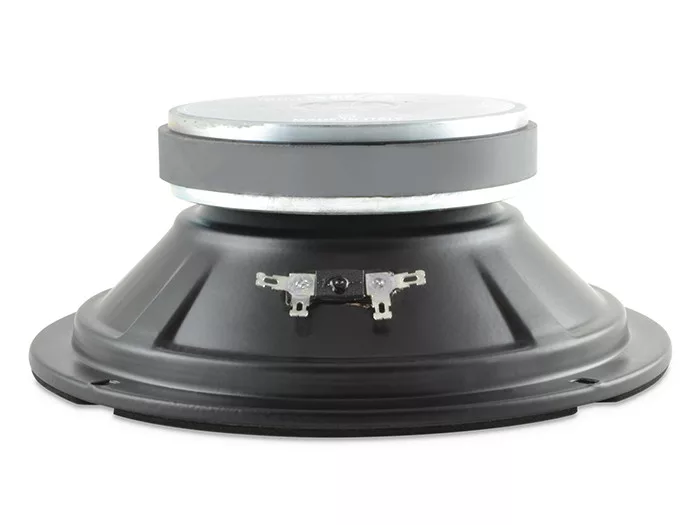

SICA 8 M 1,5 CS Midrange 8Ω

57.22 € excl. VAT

SICA 8 M 1,5 CS Midrange 8Ω

SICA 8 M 1,5 CS Midrange 8Ω

SICA 8 M 1,5 CS Midrange 8Ω

SICA 8 M 1,5 CS Midrange 8Ω

SICA 8 M 1,5 CS Midrange 8Ω

SICA 8 M 1,5 CS Midrange 8Ω

SICA 8 M 1,5 CS Midrange 8Ω

SICA 8 M 1,5 CS Midrange 8Ω

SICA 8 M 1,5 CS Midrange 8Ω

SICA 8 M 1,5 CS Midrange 8Ω

Manufacturer

Sica

Further data

In stock

57.22 € excl. VAT

Details

General Specifications

Nominal Diameter	208 mm / 8 in
Nominal Impedance	8 Ω
Rated Power AES	100 W
Continuos Program Power	200 W
Sensitivity @ 1W/1m	98.7 dB
Voice Coil Diameter	38 mm (1.5")
Voice Coil Winding Depth	8 mm
Magnetic Gap Depth	6 mm
Flux Density	1.15 T
Magnet Weight	640 g
Net Weight	2.7 Kg

Constructive Characteristics

Magnet Type	Ferrite
Basket Material	Pressed Sheet Steel
Voice Coil Winding Material	Copper
Voice Coil Former Material	Epotex
Cone Material	Paper
Cone Treatment	No
Surround Material	Paper – Integrated
Dust Dome Material	Paper Ogive

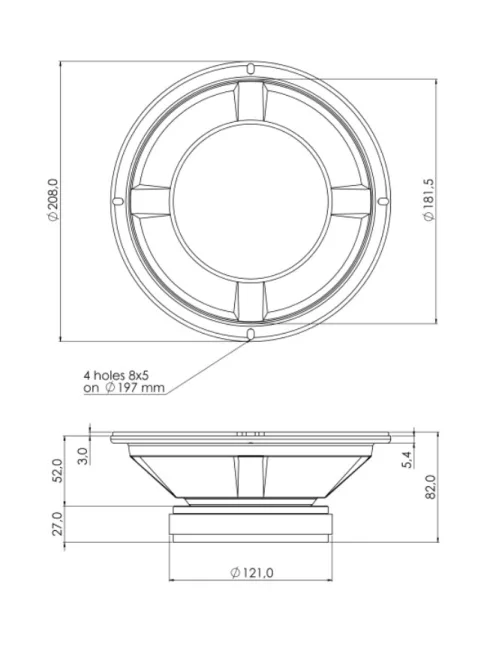

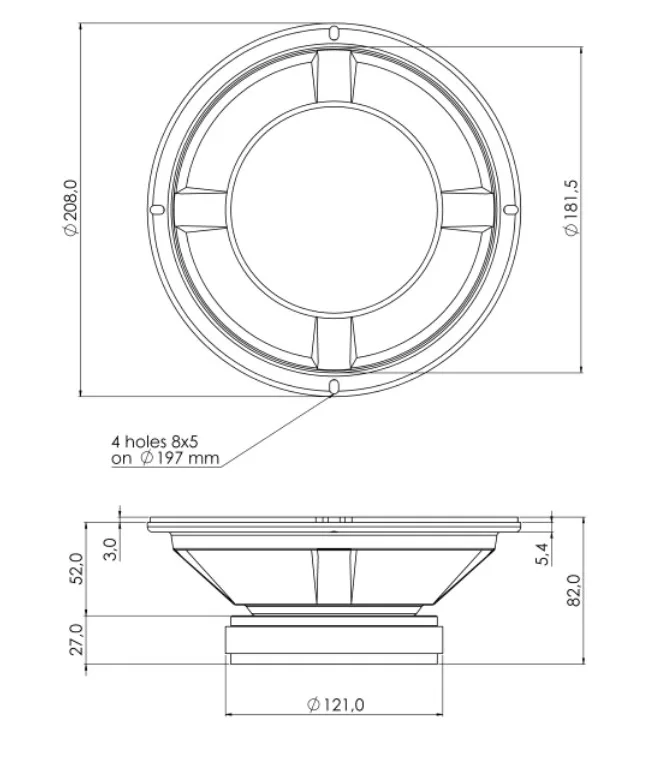

Mounting Information

Overall Diameter	208 mm
Baffle Cutout Diameter	184 mm
Mounting Holes	4 holes 5×8 on Ø197 mm
Total Depth	82 mm

Thiele/Small Parameters

Re	6.0 Ω
Qms	12.36
Qts	1.82
Cms	10 µm/N
Vas	0.7 l
X max	+/- 1.0 mm
N	2.91 %
Fs	460 Hz
Qes	2.13
Mms	11.6 g
Bxl	9.83 Tm
Sd	213.8 cm²
X var	+/- 1.0 mm
Le (1KHz)	0.37 mH

Info

Impedance, Z

8

Chassis diameter

8”

Article No.

SIC-Z004930C

Weight

2.7 kg/db
