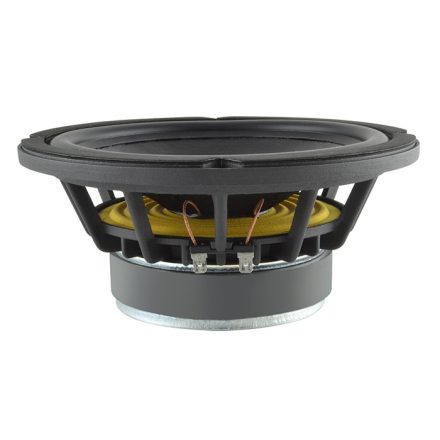

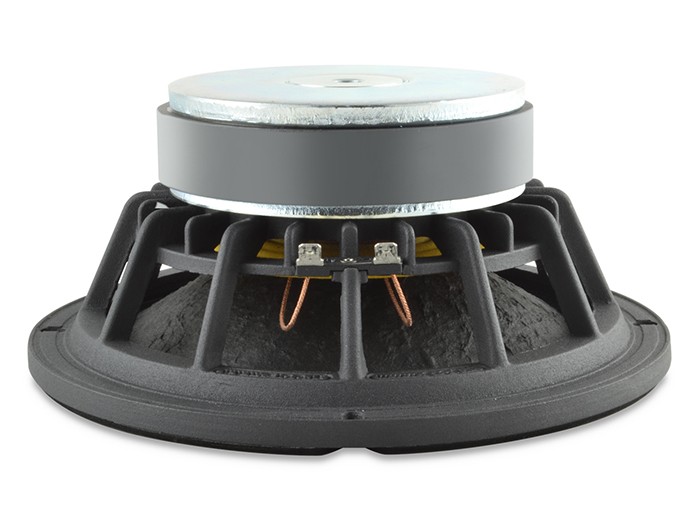

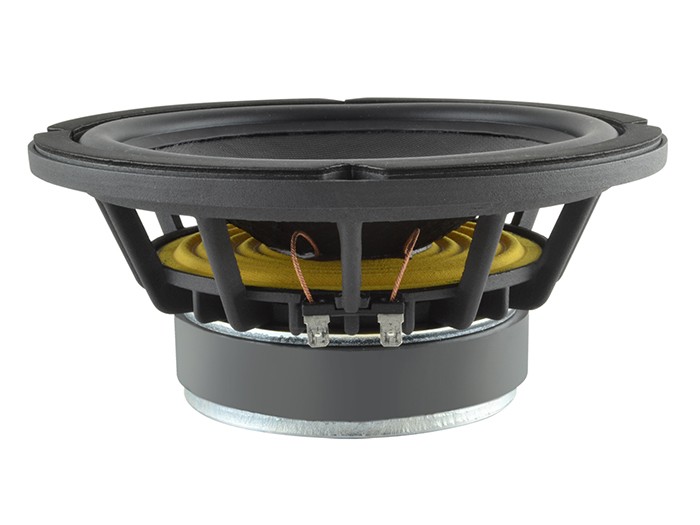

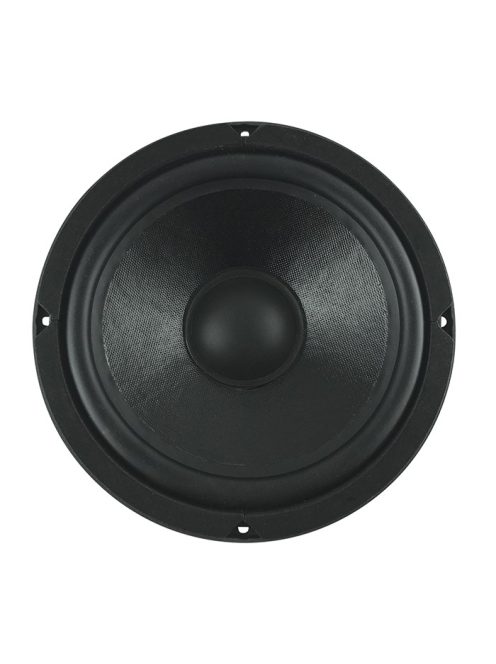

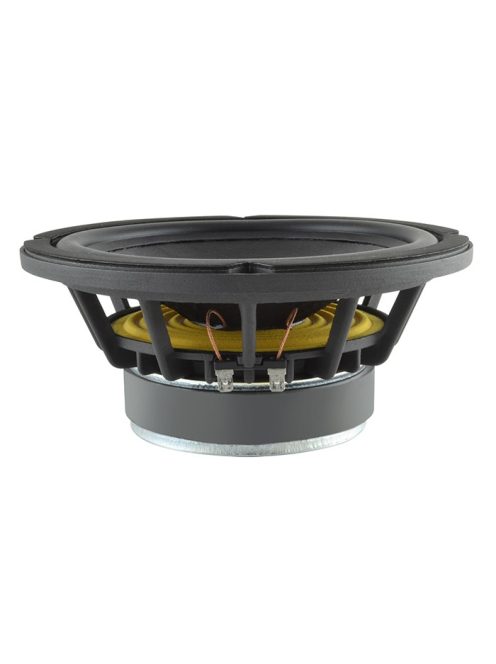

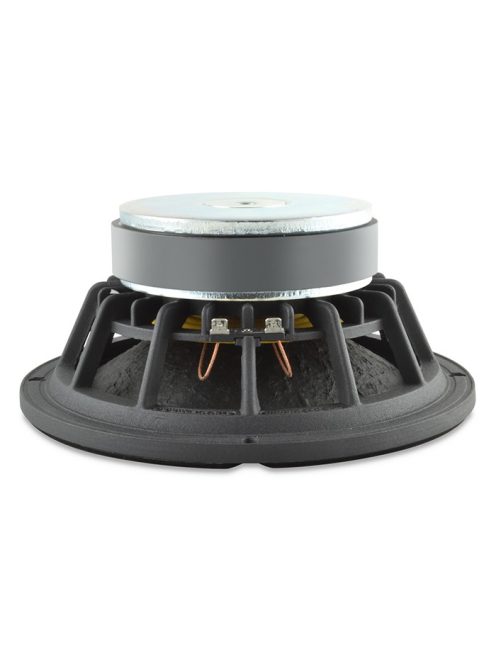

SICA 8 H 2 CP mid-woofer

107.75 € excl. VAT

SICA 8 H 2 CP mid-woofer

SICA 8 H 2 CP mid-woofer

SICA 8 H 2 CP mid-woofer

SICA 8 H 2 CP mid-woofer

SICA 8 H 2 CP mid-woofer

SICA 8 H 2 CP mid-woofer

SICA 8 H 2 CP mid-woofer

SICA 8 H 2 CP mid-woofer

Manufacturer

Sica

Further data

In stock

107.75 € excl. VAT

Details

General Specifications

Nominal Diameter	210 mm / 8 in
Nominal Impedance	8 Ω
Rated Power AES	200 W
Continuos Program Power	400 W
Sensitivity @ 1W/1m	88.8 dB
Voice Coil Diameter	50 mm (2")
Voice Coil Winding Depth	18 mm
Magnetic Gap Depth	5 mm
Flux Density	0.89 T
Magnet Weight	930 g
Net Weight	2.7 Kg

Constructive Characteristics

Magnet Type	Ferrite
Basket Material	Aluminium Die-Cast
Voice Coil Winding Material	Copper
Voice Coil Former Material	Kapton
Cone Material	Paper
Cone Treatment	Surface Damping Treatment
Surround Material	Rubber
Dust Dome Material	Rubber

Mounting Information

Overall Diameter	210 mm
Baffle Cutout Diameter	184 mm
Mounting Holes	4 holes 5.5×7.5 on Ø196 mm
Total Depth	93 mm

Thiele/Small Parameters

Re	6.1 Ω
Qms	5.25
Qts	0.48
Cms	536 µm/N
Vas	34.8 l
X max	+/- 6.5 mm
N	0.35 %
Fs	38.0 Hz
Qes	0.53
Mms	32.7 g
Bxl	9.45 Tm
Sd	213.8 cm²
X var	+/- 9.0 mm
Le (1KHz)	0.59 mH

Info

Impedance, Z

8

Chassis diameter

8”

Article No.

SIC-Z005158C

Weight

2.7 kg/db
