Shipping within (if available from supplier)

3-6 weeks

Manufacturer

Sica

Further data

Out of stock - orderable

Details

General Specifications

Nominal Diameter	210 mm / 8 in
Nominal Impedance LF	8 Ω
Nominal Impedance HF	8 Ω
Rated Power AES LF	300 W
Rated Power AES HF	60 W
Continuos Program Power LF	600 W
Continuos Program Power HF	120 W
Sensitivity @ 1W/1m LF	96.7 dB
Sensitivity @ 1W/1m HF	101.3 dB
Voice Coil Diameter LF	65 mm (2,5")
Voice Coil Diameter HF	44 mm (1.7")
Voice Coil Winding Depth LF	15 mm
Voice Coil Winding Depth HF	2.6 mm
Magnetic Gap Depth LF	8 mm
Magnetic Gap Depth HF	3 mm
HF Recommended Crossover Frequency	1.6 KHz
Net Weight	2.3 Kg
Magnet Weight	364 g

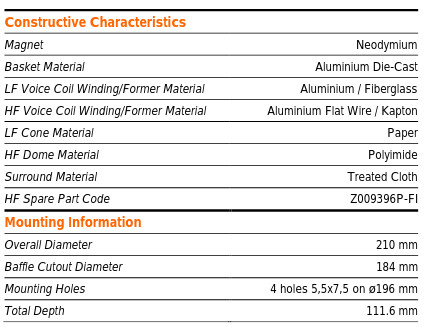

Constructive Characteristics

Magnet Type	Neodymium
Basket Material	Aluminium Die-Cast
Surround Material	Treated Cloth
LF Voice Coil Winding/Former Material	Aluminium / Fiberglass
HF Voice Coil Winding/Former Material	Aluminium Flat Wire / Kapton
LF Cone Material	Paper
HF Dome Material	Polymide
HF Spare Parts Code	Z009396P-FI

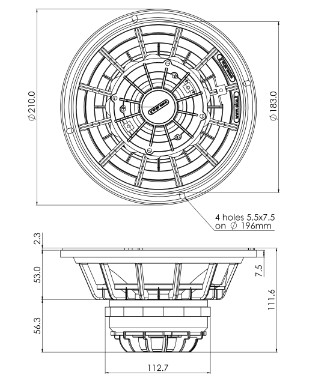

Mounting Information

Overall Diameter	210 mm
Baffle Cutout Diameter	184 mm
Mounting Holes	4 holes 5.5×7.5 on Ø196 mm
Total Depth	111.6 mm

Thiele/Small Parameters

Qms	2.63
Qts	0.28
Cms	251 µm/N
Vas	16.2 l
X max	+/- 5.0 mm
N	1.99 %
Qes	0.32
Mms	18.5 g
Bxl	12.34 Tm
Sd	213.8 cm²
X var	+/- 6.5 mm
Le (1KHz)	0.60 mH
Re (LF)	5.6 Ω
Re (HF)	6.0 Ω
Fs (LF)	74.0 Hz
Fs (HF)	700 Hz

Info

Impedance, Z

8+8

Chassis diameter

8”

Régi cikkszám

SIC-Z005209P-8+8

Article No.

SIC-Z005209P-8-8

Weight

2.3 kg/db
