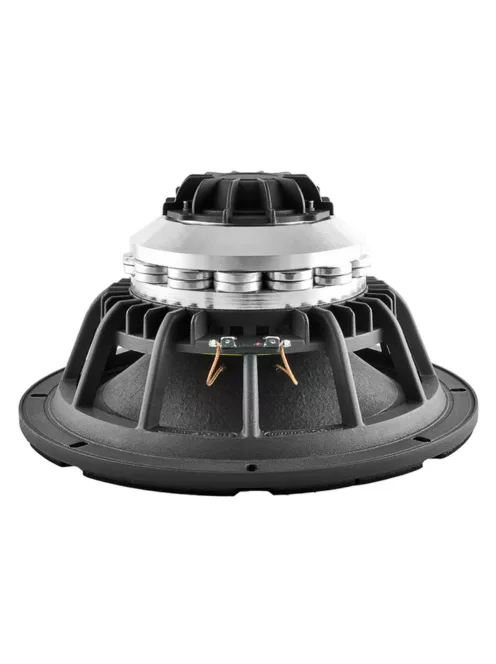

SICA 10 Cx 3 PL Coaxial

SICA 10 Cx 3 PL Coaxial

SICA 10 Cx 3 PL Coaxial

SICA 10 Cx 3 PL Coaxial

SICA 10 Cx 3 PL Coaxial

SICA 10 Cx 3 PL Coaxial

SICA 10 Cx 3 PL Coaxial

SICA 10 Cx 3 PL Coaxial

SICA 10 Cx 3 PL Coaxial

SICA 10 Cx 3 PL Coaxial

SICA 10 Cx 3 PL Coaxial

SICA 10 Cx 3 PL Coaxial

SICA 10 Cx 3 PL Coaxial

SICA 10 Cx 3 PL Coaxial

Shipping within (if available from supplier)

3-6 weeks

Manufacturer

Sica

Further data

Out of stock - orderable

Details

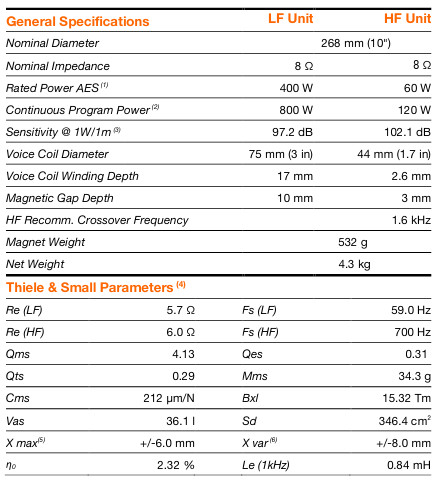

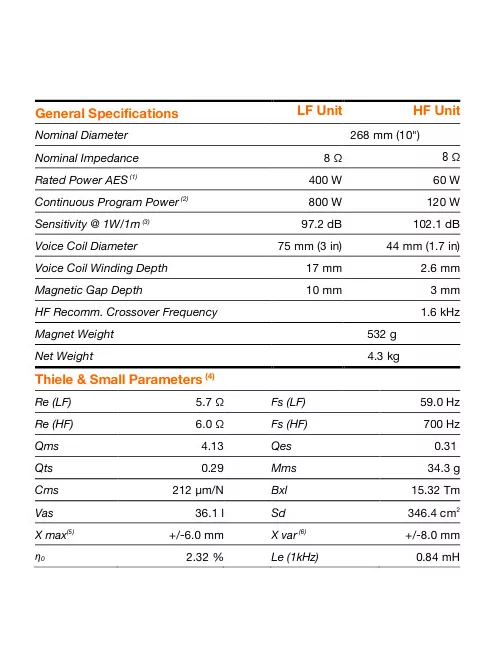

General Specifications

Nominal Diameter	268 mm / 10 in
Nominal Impedance LF	8 Ω
Nominal Impedance HF	8 Ω
Rated Power AES LF	400 W
Rated Power AES HF	60 W
Continuos Program Power LF	800 W
Continuos Program Power HF	120 W
Sensitivity @ 1W/1m LF	97.2 dB
Sensitivity @ 1W/1m HF	102.1 dB
Voice Coil Diameter LF	75 mm (3")
Voice Coil Diameter HF	44 mm (1.7")
Voice Coil Winding Depth LF	17 mm
Voice Coil Winding Depth HF	2.6 mm
Magnetic Gap Depth LF	10 mm
Magnetic Gap Depth HF	3 mm
HF Recommended Crossover Frequency	1.6 KHz
Net Weight	4.3 Kg
Magnet Weight	532 g

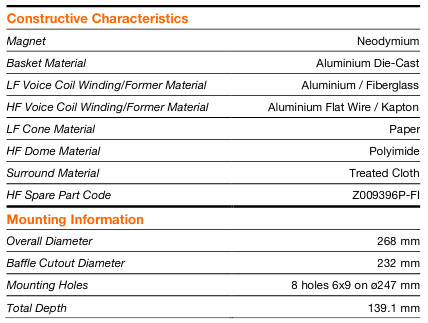

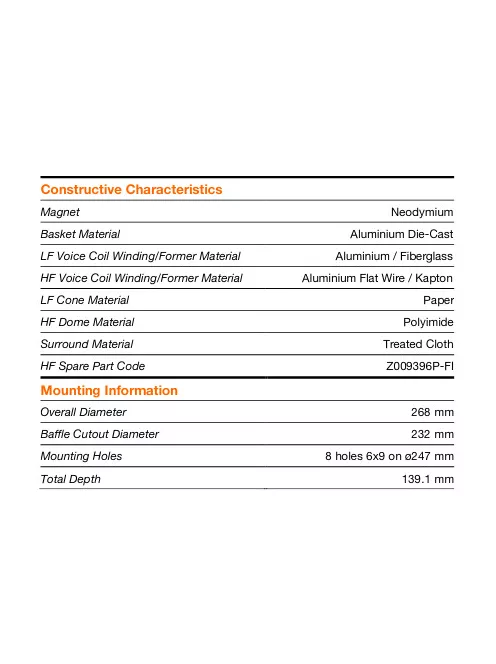

Constructive Characteristics

Magnet Type	Neodymium
Basket Material	Aluminium Die-Cast
Surround Material	Treated Cloth
LF Voice Coil Winding/Former Material	Aluminium / Fiberglass
HF Voice Coil Winding/Former Material	Aluminium Flat Wire / Kapton
LF Cone Material	Paper
HF Dome Material	Polymide
HF Spare Parts Code	Z009396P-FI

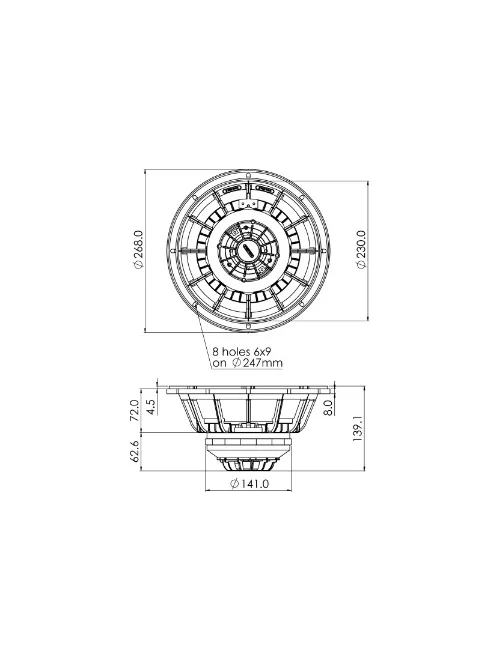

Mounting Information

Overall Diameter	268 mm
Baffle Cutout Diameter	232 mm
Mounting Holes	8 holes 6×9 on Ø247 mm
Total Depth	139.1 mm

Thiele/Small Parameters

Qms	4.13
Qts	0.29
Cms	212 µm/N
Vas	36.1 l
X max	+/- 6.0 mm
N	2.32 %
Qes	0.31
Mms	34.3 g
Bxl	15.32 Tm
Sd	346.4 cm²
X var	+/- 8.0 mm
Le (1KHz)	0.84 mH
Re (LF)	5.7 Ω
Re (HF)	6.0 Ω
Fs (LF)	59.0 Hz
Fs (HF)	700 Hz

Info

Impedance, Z

8+8

Chassis diameter

10”

Régi cikkszám

SIC-Z005839P-8+8

Article No.

SIC-Z005839P-8-8

Weight

4.3 kg/db
