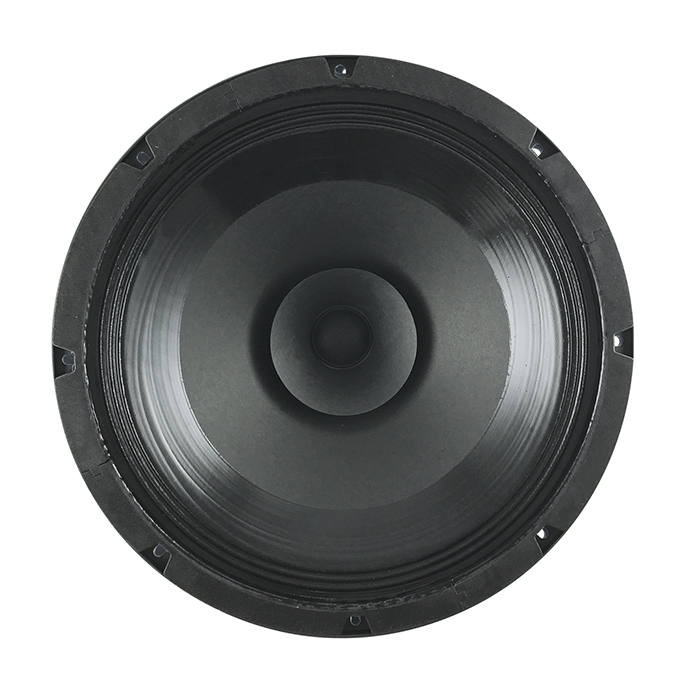

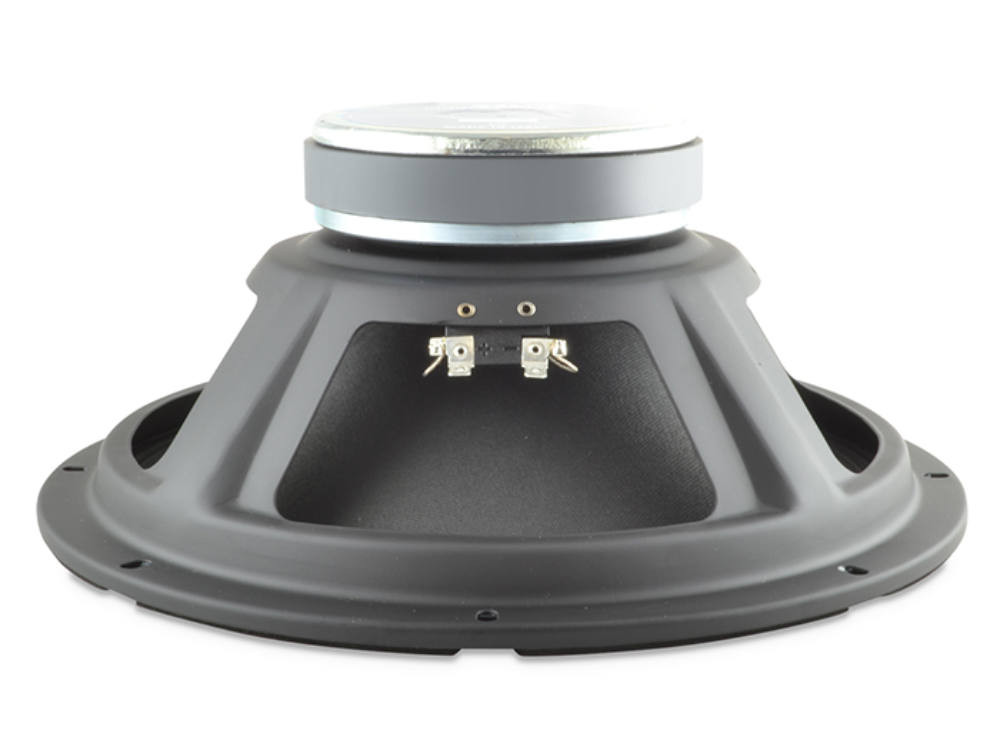

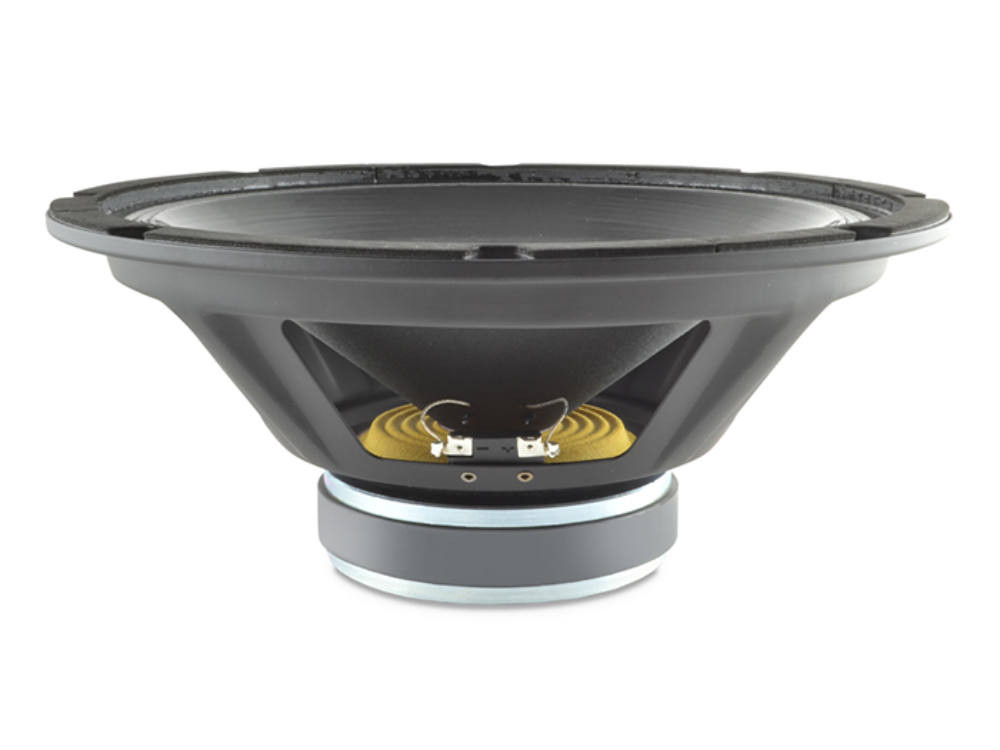

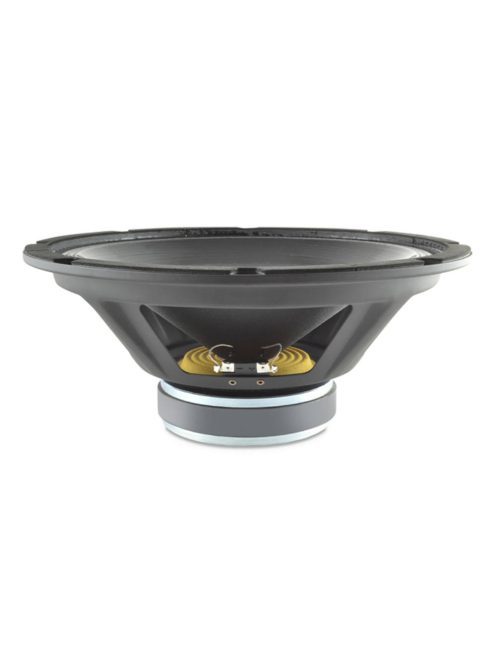

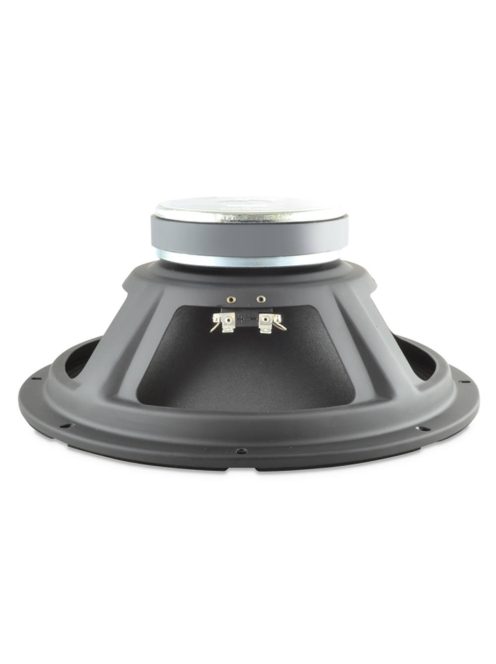

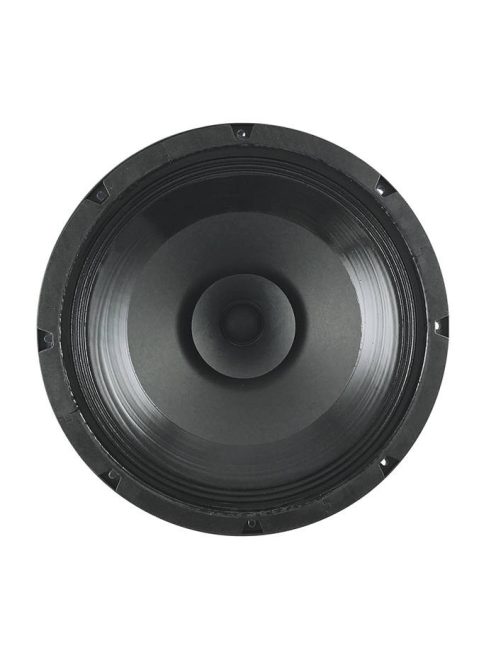

SICA 12 D 1,5 CS Full Range

SICA 12 D 1,5 CS Full Range

SICA 12 D 1,5 CS Full Range

SICA 12 D 1,5 CS Full Range

SICA 12 D 1,5 CS Full Range

SICA 12 D 1,5 CS Full Range

SICA 12 D 1,5 CS Full Range

SICA 12 D 1,5 CS Full Range

Shipping within (if available from supplier)

3-6 weeks

Manufacturer

Sica

Further data

Out of stock - orderable

Details

General Specifications

Nominal Diameter	318 mm / 12 in
Nominal Impedance	8 Ω
Rated Power AES	130 W
Continuos Program Power	260 W
Sensitivity @ 1W/1m	96.9 dB
Voice Coil Winding Depth	9 mm
Magnetic Gap Depth	8 mm
Flux Density	1.21 T
Magnet Weight	1100 g
Net Weight	3.7 Kg

Constructive Characteristics

Magnet Type	Ferrite
Basket Material	Pressed Sheet Steel
Voice Coil Winding Material	Copper
Voice Coil Former Material	Kapton
Cone Material	Paper
Cone Treatment	No
Surround Material	Paper – Integrated
Dust Dome Material	Non Treated Cloth

Mounting Information

Overall Diameter	318 mm
Baffle Cutout Diameter	287 mm
Mounting Holes	8 holes 5×9 on Ø300 mm
Total Depth	134.7 mm

Thiele/Small Parameters

Re	5.1 Ω
Qms	18.30
Qts	0.75
Cms	186 μm/N
Vas	63.5 l
X max	+/- 2.7 mm
N	1.87 %
Fs	62.0 Hz
Qes	0.78
Mms	35.5 g
Bxl	9.51 Tm
Sd	490.9 cm²
X var	+/- 5.0 mm
Le (1KHz)	0.35 mH

Info

Impedance, Z

8

Chassis diameter

12”

Article No.

SIC-Z007360

Weight

3.7 kg/db
