SICA 12 C 2 CP Coaxial, wo. tweeter driver

SICA 12 C 2 CP Coaxial, wo. tweeter driver
SICA 12 C 2 CP Coaxial, wo. tweeter driver
SICA 12 C 2 CP Coaxial, wo. tweeter driver
SICA 12 C 2 CP Coaxial, wo. tweeter driver
SICA 12 C 2 CP Coaxial, wo. tweeter driver
SICA 12 C 2 CP Coaxial, wo. tweeter driver
SICA 12 C 2 CP Coaxial, wo. tweeter driver
SICA 12 C 2 CP Coaxial, wo. tweeter driver
SICA 12 C 2 CP Coaxial, wo. tweeter driver
SICA 12 C 2 CP Coaxial, wo. tweeter driver
SICA 12 C 2 CP Coaxial, wo. tweeter driver
SICA 12 C 2 CP Coaxial, wo. tweeter driver
SICA 12 C 2 CP Coaxial, wo. tweeter driver
SICA 12 C 2 CP Coaxial, wo. tweeter driver
Shipping within (if available from supplier)
3-6 weeks
Manufacturer
Sica
Further data
Out of stock - orderable
Details

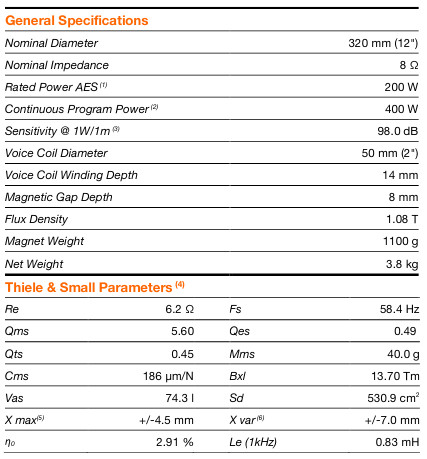

General Specifications
Nominal Diameter

320 mm / 12 in
Net Weight

3.8 Kg
Magnet Weight

1100 g
Nominal Impedance

8 Ω
Rated Power AES

200 W
Continuos Program Power

400 W
Sensitivity @ 1W/1m

98.0 dB
Voice Coil Diameter

50 mm (2")
Voice Coil Winding Depth

14 mm
Magnetic Gap Depth

8 mm
Flux Density

1.08 T

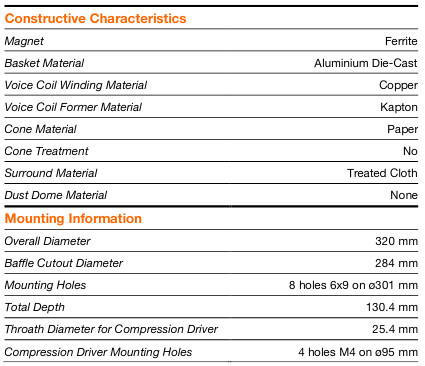

Constructive Characteristics
Magnet Type

Ferrite
Basket Material

Aluminium Die-Cast
Voice Coil Winding Material

Copper
Voice Coil Former Material

Kapton
Cone Material

Paper
Cone Treatment

No
Surround Material

Treated Cloth
Dust Dome Material

None

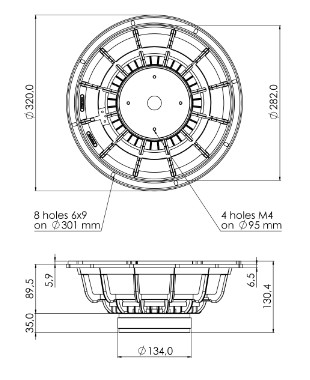

Mounting Information
Overall Diameter

320 mm
Baffle Cutout Diameter

284 mm
Mounting Holes

8 holes 6×9 on ø 301 mm
Total Depth

130.4 mm
Throat Diameter for CD

25.4 mm
Compression Driver Mounting Holes 1

4 holes M4 on ø 95 mm
Thiele/Small Parameters
Re

6.2 Ω
Qms

5.60
Qts

0.45
Cms

186 μm/N
Vas

74.3 I
X max

+/- 4.5 mm
N

2.91 %
Fs

58.4 Hz
Qes

0.49
Mms

40.0 g
Bxl

13.70 Tm
Sd

530.9 cm²
X var

+/- 7.0 mm
Le (1KHz)

0.83 mH
Info
Impedance, Z
8
Chassis diameter
12”
Article No.
SIC-Z007852
Weight
3.8 kg/db
