Shipping within (if available from supplier)

3-6 weeks

Manufacturer

Sica

Further data

Out of stock - orderable

Details

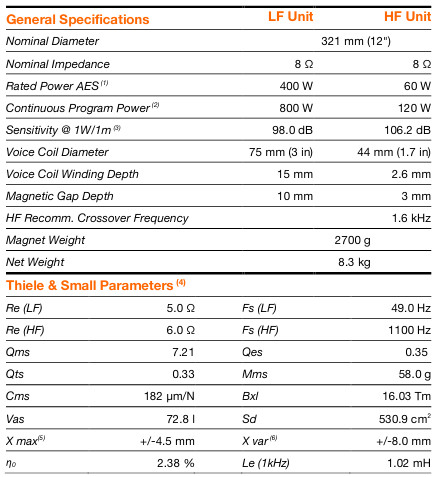

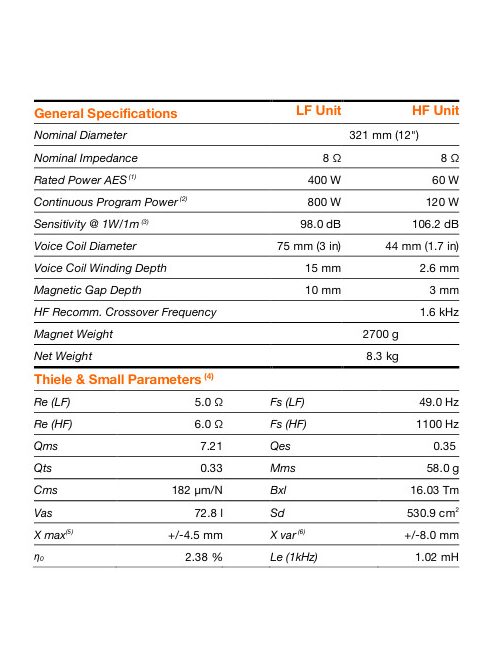

General Specifications

Nominal Diameter	321 mm / 12 in
Nominal Impedance LF	8 Ω
Nominal Impedance HF	8 Ω
Rated Power AES LF	400 W
Rated Power AES HF	60 W
Continuos Program Power LF	800 W
Continuos Program Power HF	120 W
Sensitivity @ 1W/1m LF	98.0 dB
Sensitivity @ 1W/1m HF	10000
Voice Coil Diameter LF	75 mm (3")
Voice Coil Diameter HF	44 mm (1.7")
Voice Coil Winding Depth LF	15 mm
Voice Coil Winding Depth HF	2.6 mm
Magnetic Gap Depth LF	10 mm
Magnetic Gap Depth HF	3 mm
HF Recommended Crossover Frequency	1.6 KHz
Net Weight	8.3 Kg
Magnet Weight	2700 g

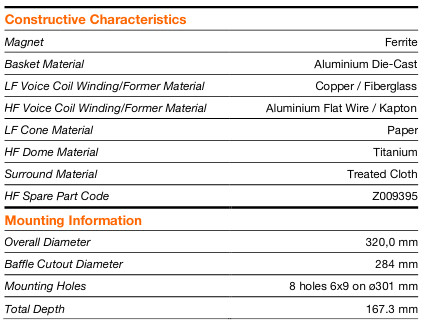

Constructive Characteristics

Magnet Type	Ferrite
Basket Material	Aluminium Die-Cast
Surround Material	Treated Cloth
LF Voice Coil Winding/Former Material	Copper / Fiberglass
HF Voice Coil Winding/Former Material	Aluminium Flat Wire / Kapton
LF Cone Material	Paper
HF Dome Material	Titanium
HF Spare Parts Code	Z009395

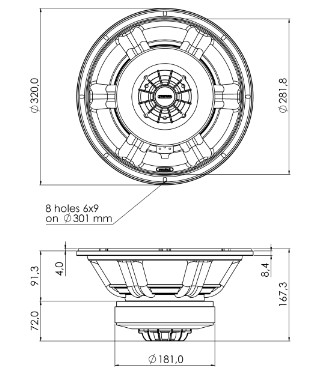

Mounting Information

Overall Diameter	320 mm
Baffle Cutout Diameter	284 mm
Mounting Holes	8 holes 6×9 on Ø301 mm
Total Depth	167.3 mm

Thiele/Small Parameters

Qms	7.21
Qts	0.33
Cms	182 µm/N
Vas	72.8 l
X max	+/- 4.5 mm
N	2.38 %
Qes	0.35
Mms	58.0 g
Bxl	16.03 Tm
Sd	530.9 cm²
X var	+/- 8.0 mm
Le (1KHz)	1.02 mH
Re (HF)	6.0 Ω
Fs (LF)	49.0 Hz
Fs (HF)	1100 Hz

Info

Impedance, Z

8+8

Chassis diameter

12”

Article No.

SIC-Z007996

Weight

8.3 kg/db
