SICA 15 E 3 CS mid-woofer

Name: SICA 15 E 3 CS mid-woofer
Brand: Sica
SKU: SIC-Z008291C
Price: 219.19 EUR
Availability: InStock

Item number: SIC-Z008291C

Item number: SIC-Z008291C

Orderable

172.59 € excl. VAT

Shipping within (if available from supplier)

4-6 weeks

Manufacturer

Sica

General
- Product type : Cone driver
- Brand : Sica
- Manufacturer reference : 15E3CS
- Product code : Z008291C
Informations
- Nominal impedance : 8 ohm
- Dimensional category : 15 inch
- Frequency coverage type : Sub, Low
- Manufacturer sensitivity : 96.3 dB
- Calculated sensitivity : 95.35 dB
- Nominal power handling : 350 W
- Max power handling : 700 W
Fundamental parameters
- Sd : 754.8 cm²
- Mms : 90.4 gr
- Cms : 155 µm/N
- Le : 1.55 mH
- Re : 6.63 ohm
- BL : 19.27 T.m
Small signal parameters
- Fs : 42.6 Hz
- Qes : 0.43
- Qms : 16.55
- Qts : 0.42
- Vas : 124.6 L
Datas
- Flux density : 1.1 T
- Xmax : ±4 mm
- Xvar, Xmech, Xlim : ±6.5 mm
- EBP : 99 Hz
- Fs / Qts : 101 Hz
- Vas * Qts² : 21.98 L
- Efficiency : 2.14 %
- Calculated efficiency : 2.16 %
- Weight : ~8.6 kg

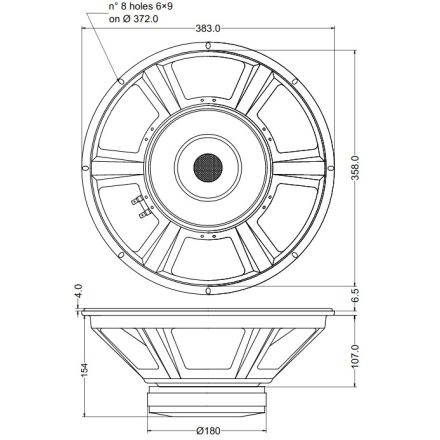

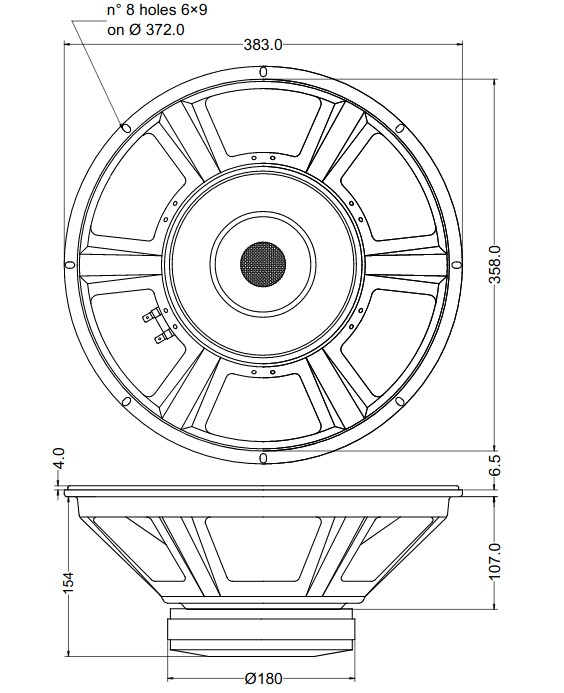

Dimensions
- Voice coil diameter : 3 inch
- Winding depth : 15 mm
- Gap height : 10 mm
- Outside diameter : 383 mm
- Baffle cutout diameter : 358 mm
- Depth : 164.5 mm
- Front thickness : 10.5 mm
- Depth after front : 154 mm
- Diamètre aimant (mm) : 180 mm
Shape & Materials
- Front chape : Cylindrical
- Magnet type : Ferrite
- Basket masterial : Acier
- Winding material : Copper
- Voice coil former : Kapton
- Surround material : Cloth
- Dome material : Paper
- Cone material : Paper

Impedance, Z

Chassis diameter

15”

Item number

SIC-Z008291C

Weight

7.85 kg/db
