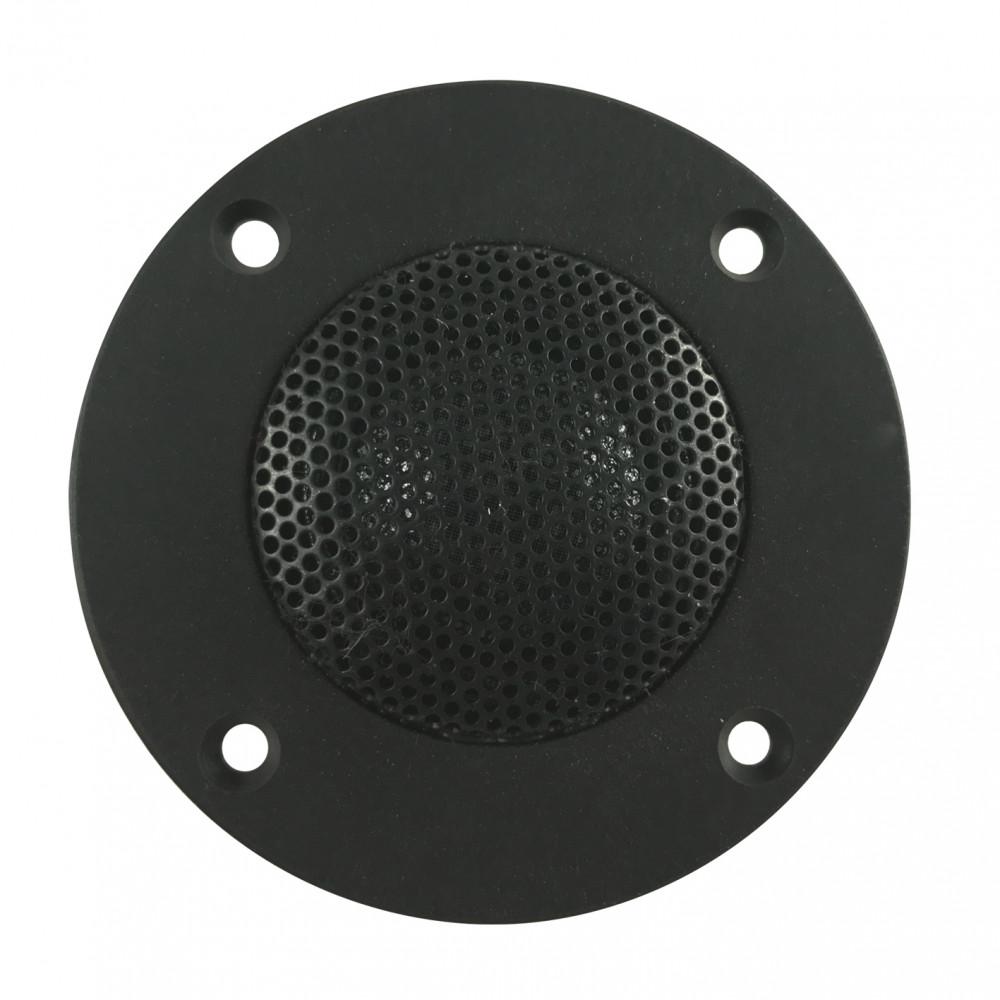

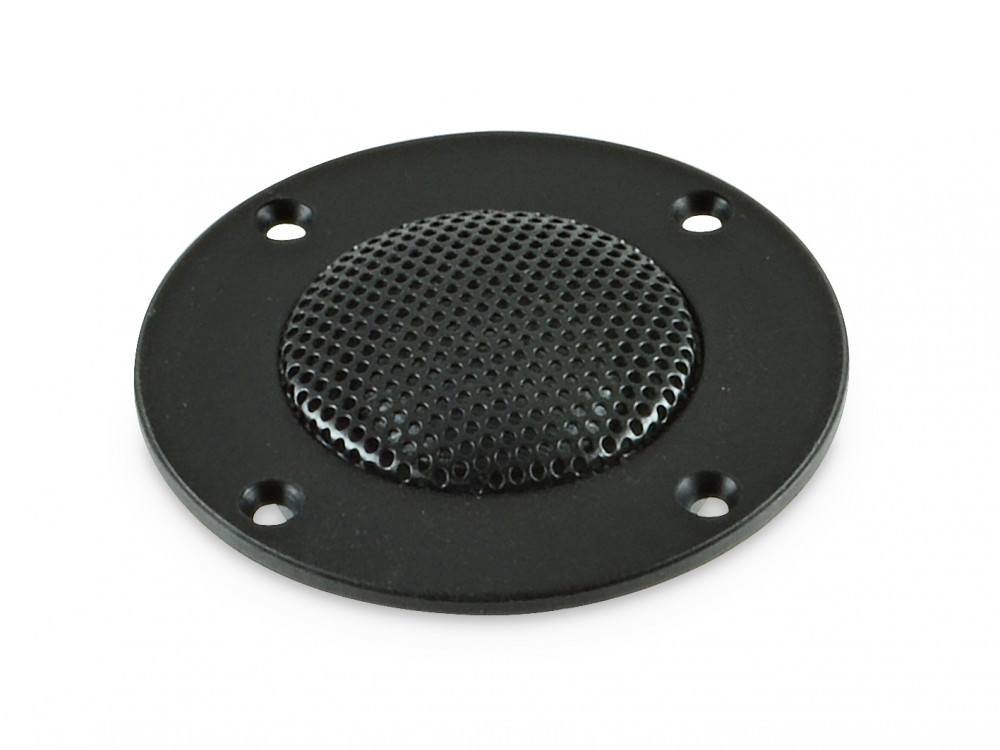

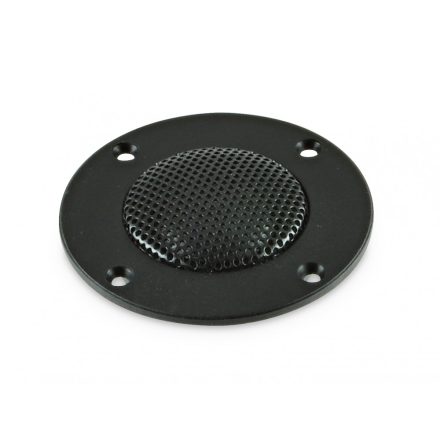

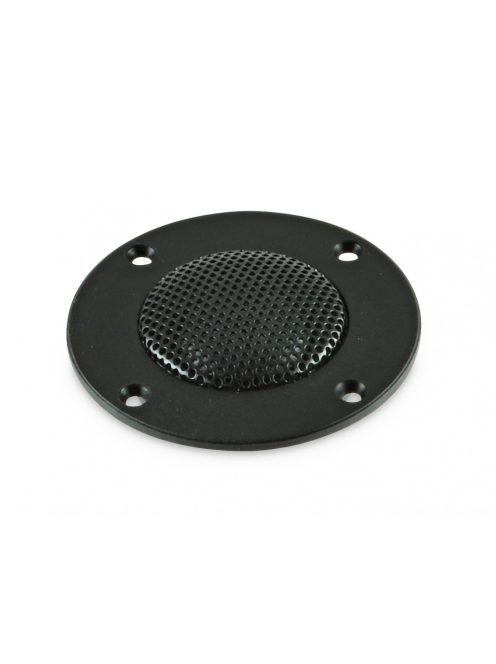

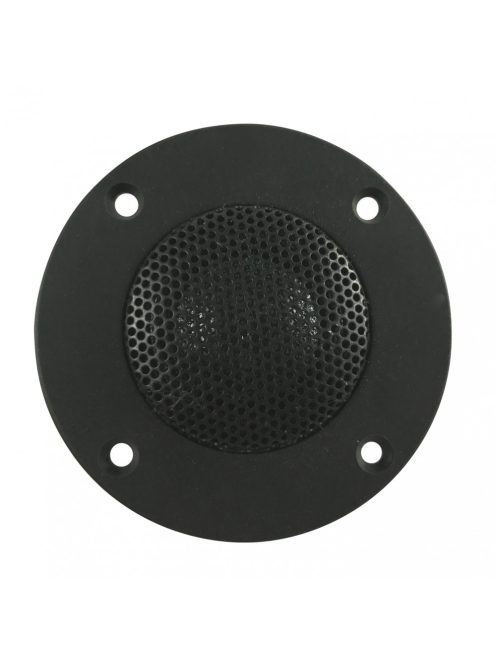

SICA LP 66.25/N14 TW Dome Tweeter 8Ω

SICA LP 66.25/N14 TW Dome Tweeter 8Ω
SICA LP 66.25/N14 TW Dome Tweeter 8Ω
SICA LP 66.25/N14 TW Dome Tweeter 8Ω
SICA LP 66.25/N14 TW Dome Tweeter 8Ω
SICA LP 66.25/N14 TW Dome Tweeter 8Ω
SICA LP 66.25/N14 TW Dome Tweeter 8Ω
SICA LP 66.25/N14 TW Dome Tweeter 8Ω
SICA LP 66.25/N14 TW Dome Tweeter 8Ω
Shipping within (if available from supplier)
3-6 weeks
Manufacturer
Sica
Further data
Out of stock - orderable
Details
General Specifications
TW Nominal Diameter

66 mm
Nominal Impedance

8 Ω
Rated Power AES

17 W
Continuos Program Power

34 W
Rated Noise Power

70 W
Sensitivity @ 1W/1m

90.7 dB
Voice Coil Diameter

25 mm (1")
Voice Coil Winding Depth

1.7 mm
Magnetic Gap Depth

2.0 mm
Flux Density

1.20 T
DC Resistance

6.0 Ω
Resonance Frequency

1.30 kHz
Magnet Weight

14 g
Net Weight

0.9 Kg
Recommended Crossover Frequency

2.5 Khz
Constructive Characteristics
Magnet Type

Neodymium
Voice Coil Winding Material

Copper
Voice Coil Former Material

Aluminium
Ferrofluid in Air Gap

Yes
Diaphragm

Treated Silk
Flange

Nylon Fiberglass Doped
Spare Part Code

–

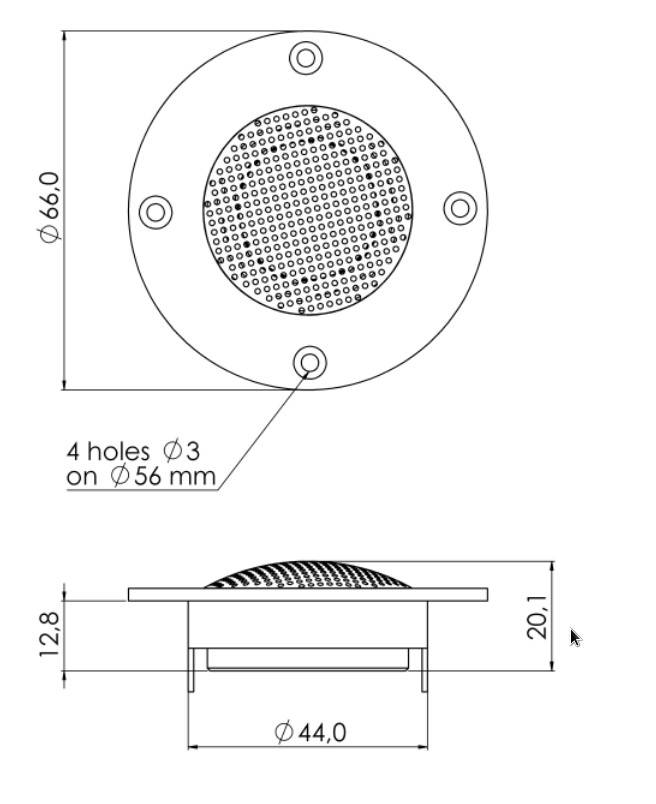

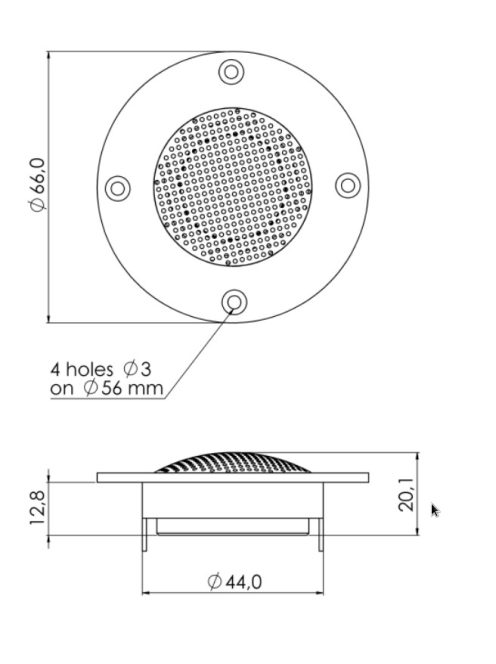

Mounting Information
Overall Diameter

66 mm
Baffle Cutout Diameter

46 mm
Mounting Holes

4 holes Ø3 on Ø56 mm
Total Depth

20 mm
Info
Impedance, Z
8
Article No.
SIC-Z008950
Weight
90 g/db
