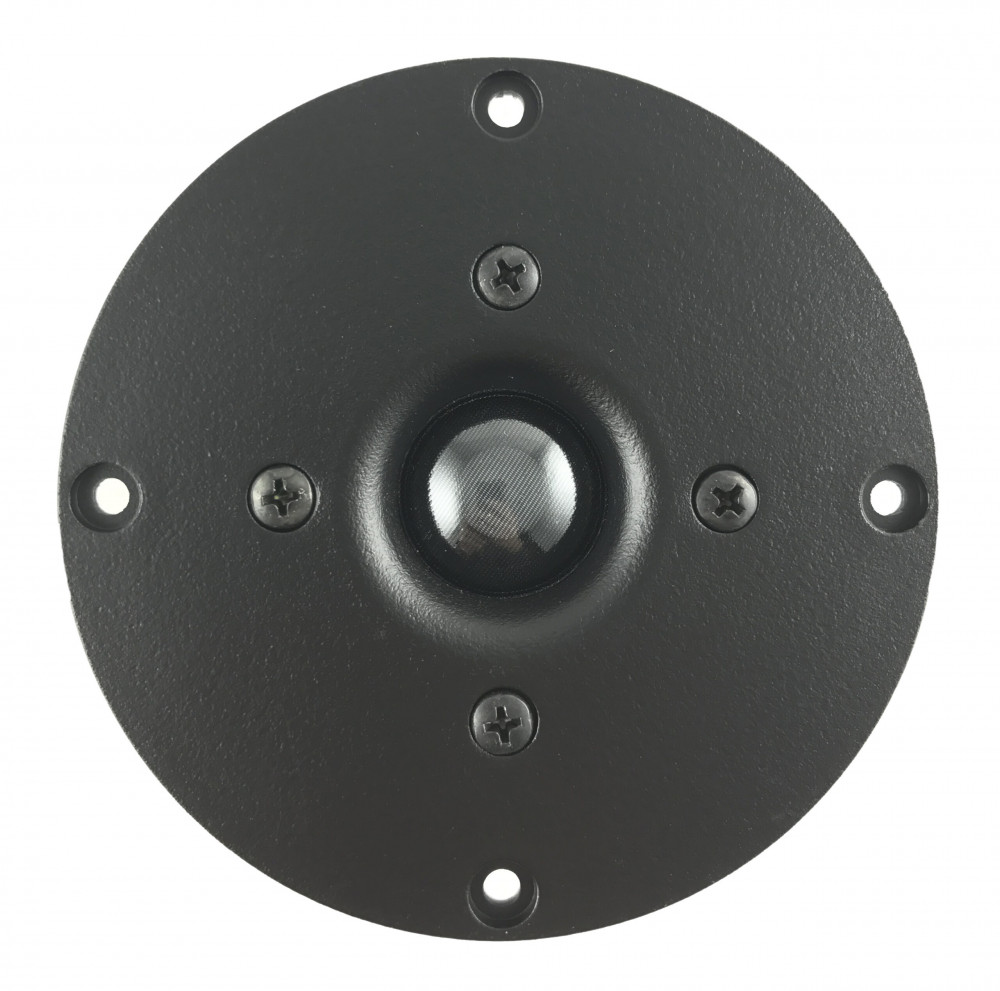

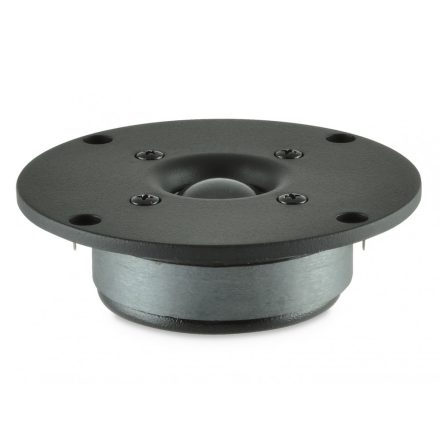

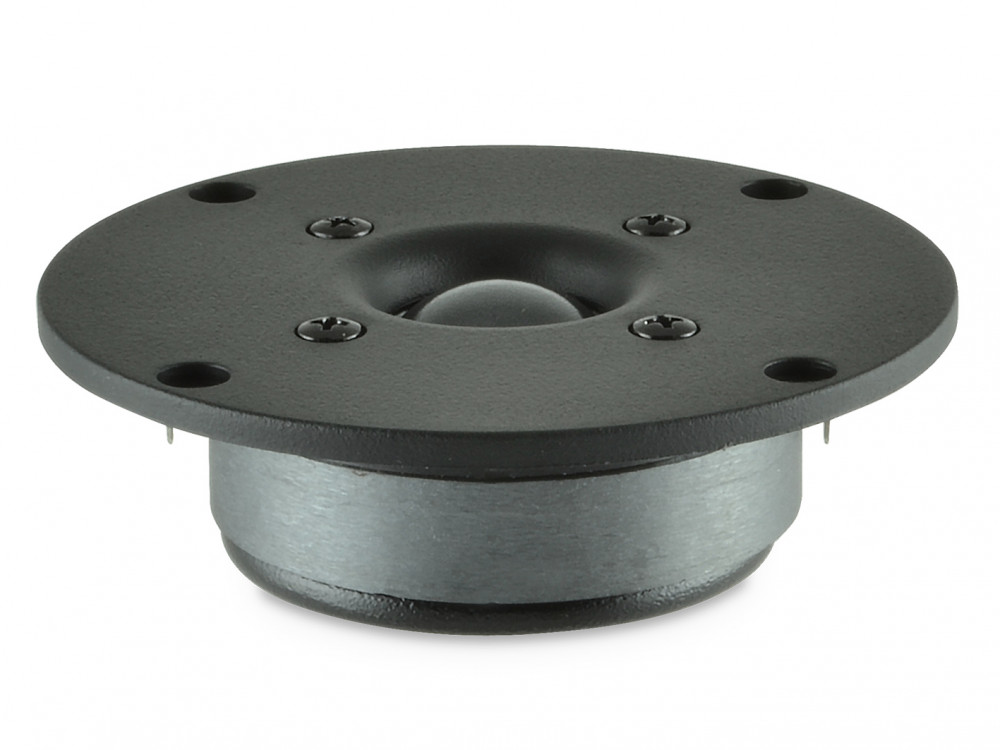

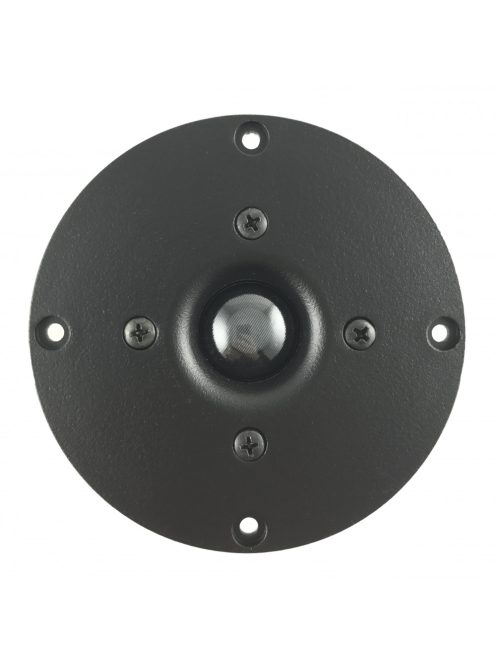

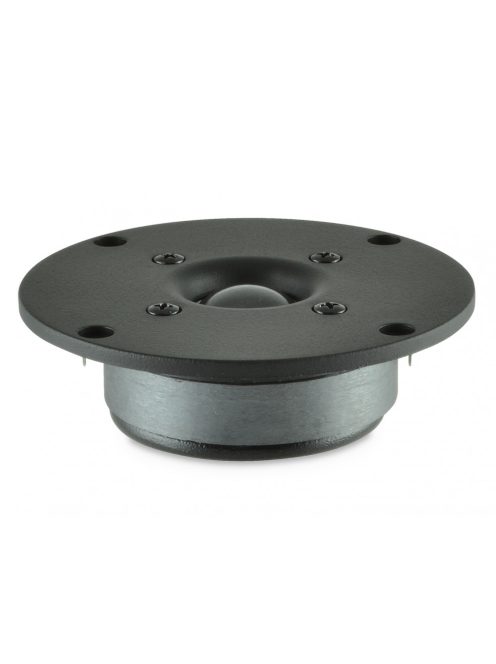

SICA LP 111.25/245 TW Dome Tweeter 8Ω

SICA LP 111.25/245 TW Dome Tweeter 8Ω
SICA LP 111.25/245 TW Dome Tweeter 8Ω
SICA LP 111.25/245 TW Dome Tweeter 8Ω
SICA LP 111.25/245 TW Dome Tweeter 8Ω
SICA LP 111.25/245 TW Dome Tweeter 8Ω
SICA LP 111.25/245 TW Dome Tweeter 8Ω
SICA LP 111.25/245 TW Dome Tweeter 8Ω
SICA LP 111.25/245 TW Dome Tweeter 8Ω
Shipping within (if available from supplier)
3-6 weeks
Manufacturer
Sica
Further data
Out of stock - orderable
Details

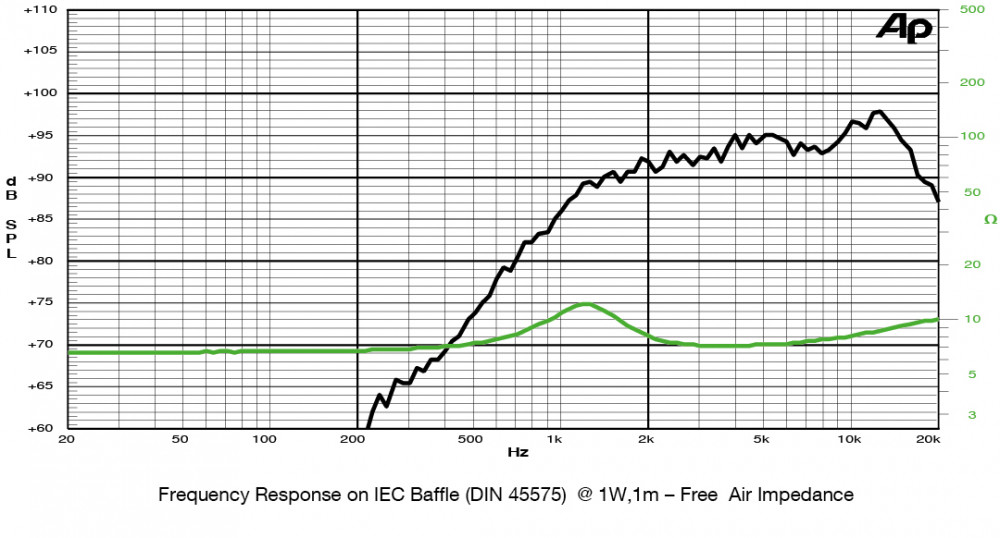

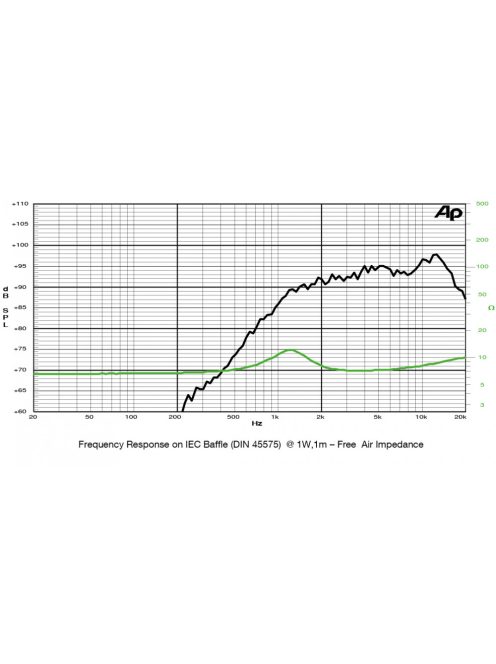

General Specifications
TW Nominal Diameter

110 mm
Nominal Impedance

8 Ω
Rated Power AES

25 W
Continuos Program Power

50 W
Rated Noise Power

120 W
Sensitivity @ 1W/1m

95.1 dB
Voice Coil Diameter

25 mm (1")
Voice Coil Winding Depth

1.7 mm
Magnetic Gap Depth

2.0 mm
Flux Density

1.70 T
DC Resistance

6.0 Ω
Resonance Frequency

1.20 KHz
Magnet Weight

245 g
Net Weight

0.6 Kg
Recommended Crossover Frequency

2.5 Khz
Constructive Characteristics
Magnet Type

Ferrite
Voice Coil Winding Material

Copper
Voice Coil Former Material

Aluminium
Ferrofluid in Air Gap

Yes
Diaphragm

Treated Silk
Flange

ABS
Spare Part Code

Z009402

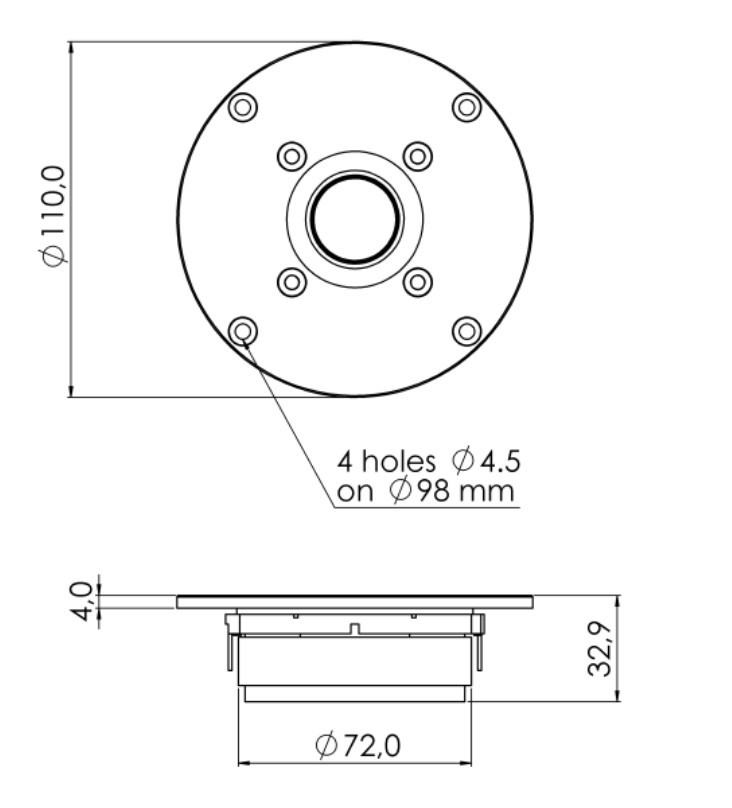

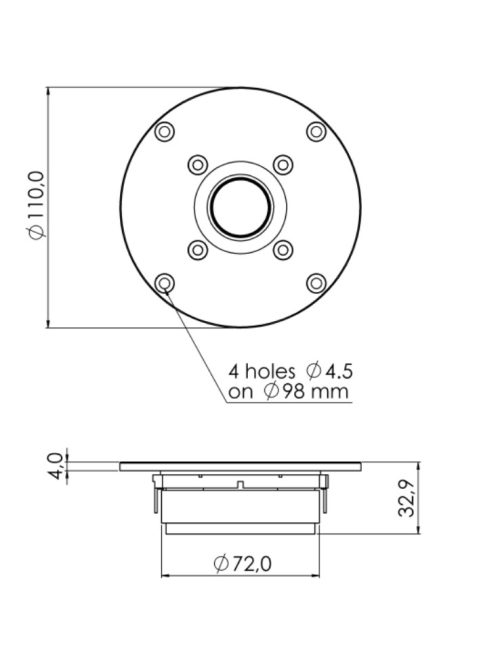

Mounting Information
Overall Diameter

110 mm
Baffle Cutout Diameter

84 mm
Mounting Holes

4 holes Ø4.5 on Ø98 mm
Total Depth

32.9 mm
Info
Impedance, Z
8
Article No.
SIC-Z009215C
Weight
600 g/db
