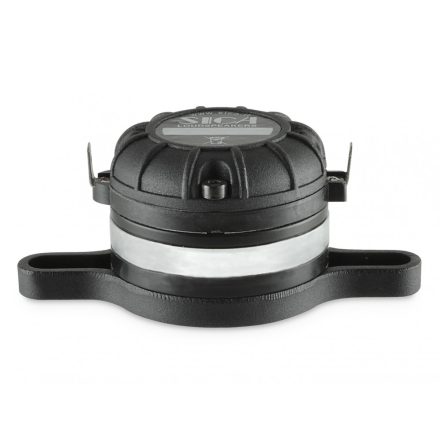

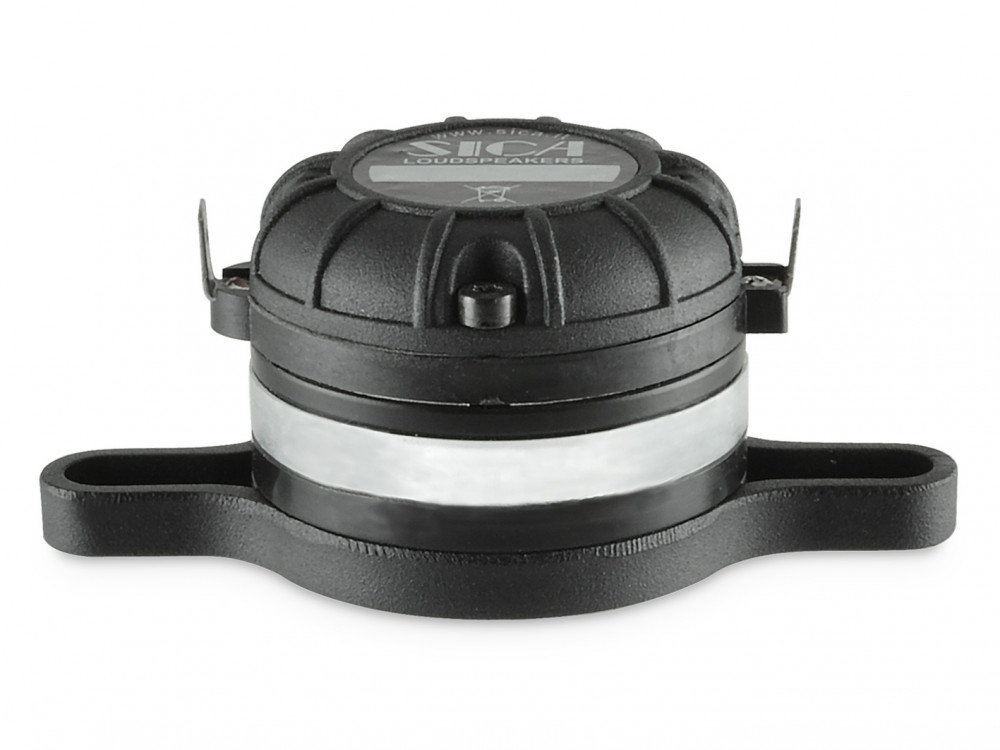

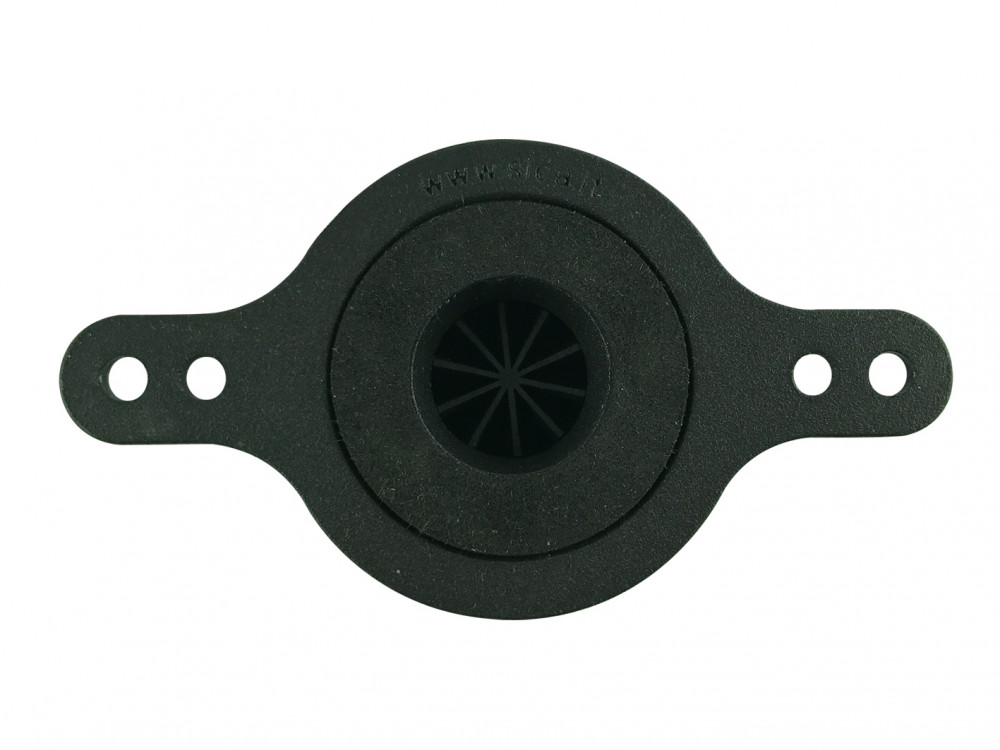

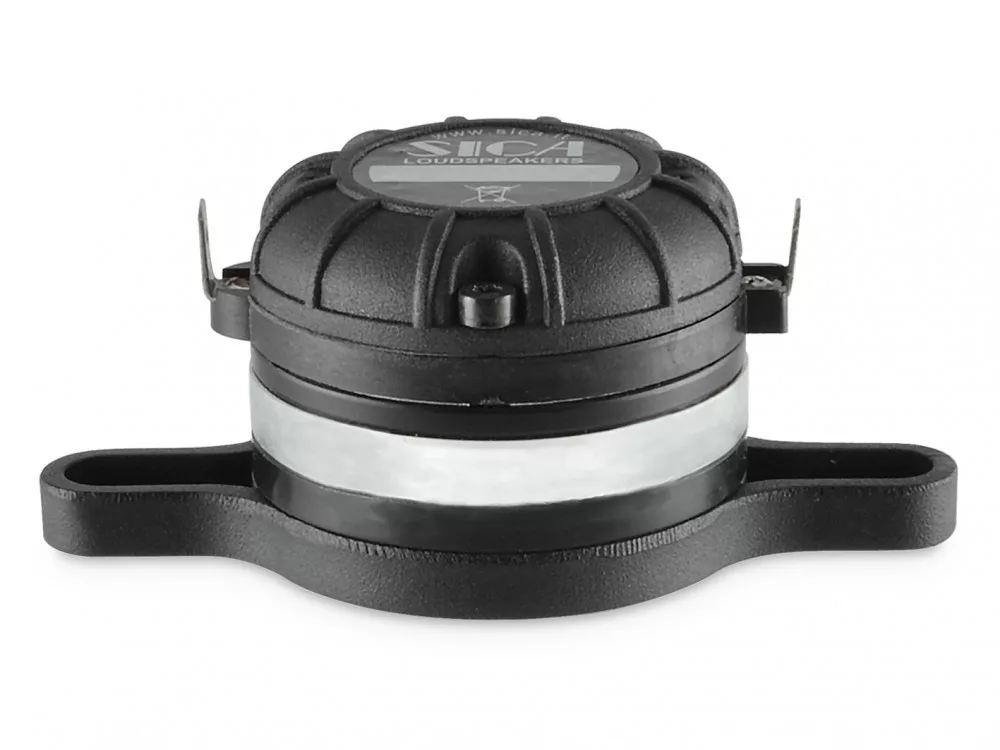

SICA CD 60.38/N92, 8 Ohm Compression Driver
SICA CD 60.38/N92, 8 Ohm Compression Driver
85.46 € excl. VAT

SICA CD 60.38/N92, 8 Ohm Compression Driver

SICA CD 60.38/N92, 8 Ohm Compression Driver
SICA CD 60.38/N92, 8 Ohm Compression Driver
SICA CD 60.38/N92, 8 Ohm Compression Driver
SICA CD 60.38/N92, 8 Ohm Compression Driver
SICA CD 60.38/N92, 8 Ohm Compression Driver
SICA CD 60.38/N92, 8 Ohm Compression Driver
SICA CD 60.38/N92, 8 Ohm Compression Driver
SICA CD 60.38/N92, 8 Ohm Compression Driver
SICA CD 60.38/N92, 8 Ohm Compression Driver
SICA CD 60.38/N92, 8 Ohm Compression Driver
SICA CD 60.38/N92, 8 Ohm Compression Driver
SICA CD 60.38/N92, 8 Ohm Compression Driver
Manufacturer
Sica
Further data
In stock
85.46 € excl. VAT
Details

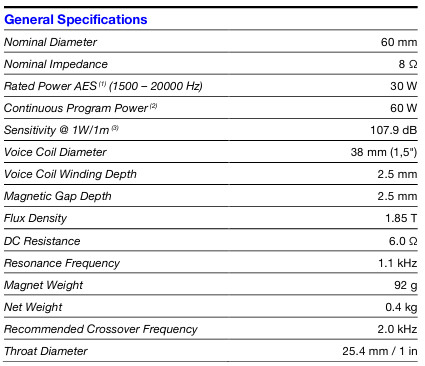

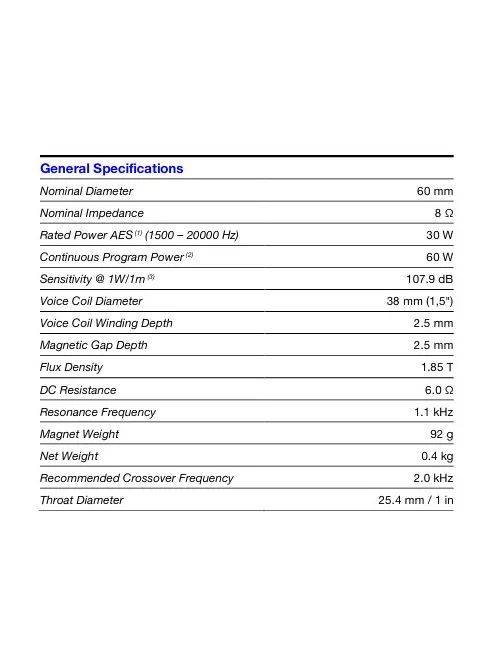

General Specifications
CD Nominal Diameter

60 mm
Nominal Impedance

8 Ω
CD Rated Power AES

30 W
CD Continuous Program Power

60 W
Sensitivity @ 1W/1m

107.9 dB
Voice Coil Diameter

38 mm (1.5")
Voice Coil Winding Depth

2.5 mm
Magnetic Gap Depth

2.5 mm
Flux Density

1.85 T
DC Resistance

6.0 Ω
Resonance Frequency

1.1 kHz
Magnet Weight

92 g
Net Weight

0.4 Kg
Recommended Crossover Frequency

2.0 kHz
Throat Diameter

25.4 mm (1")

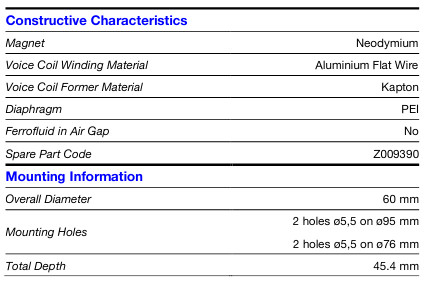

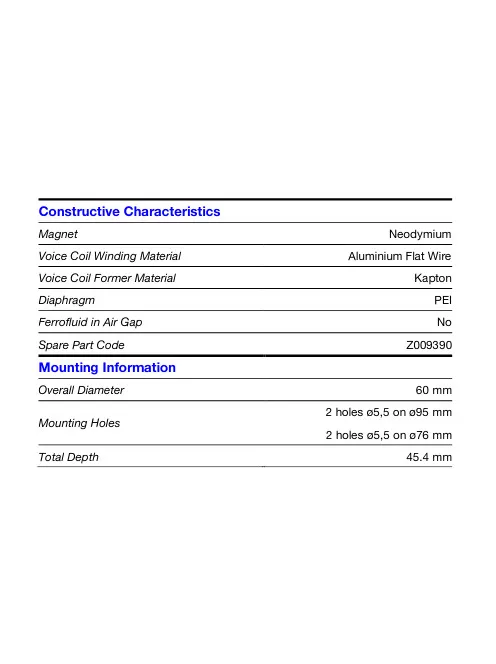

Constructive Characteristics
Magnet Type

Neodymium
Voice Coil Winding Material

Aluminium Flat Wire
Voice Coil Former Material

Kapton
Diaphragm

PEI
Ferrofluid in Air Gap

No
Spare Part Code

Z009390

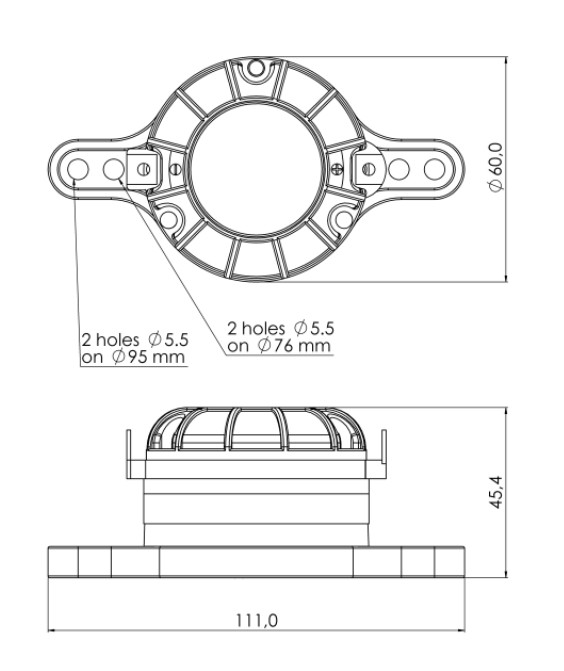

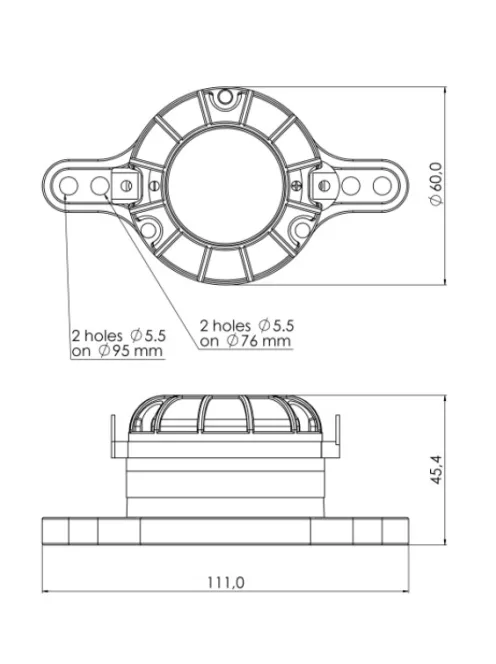

Mounting Information
Overall Diameter

60 mm
Mounting Holes

2 holes Ø5.5 on Ø95 mm
Mounting Holes 2

2 holes Ø5.5 on Ø76 mm
Total Depth

45.4 mm
Info
Impedance, Z
8
Article No.
SIC-Z009484C
Weight
400 g/db
