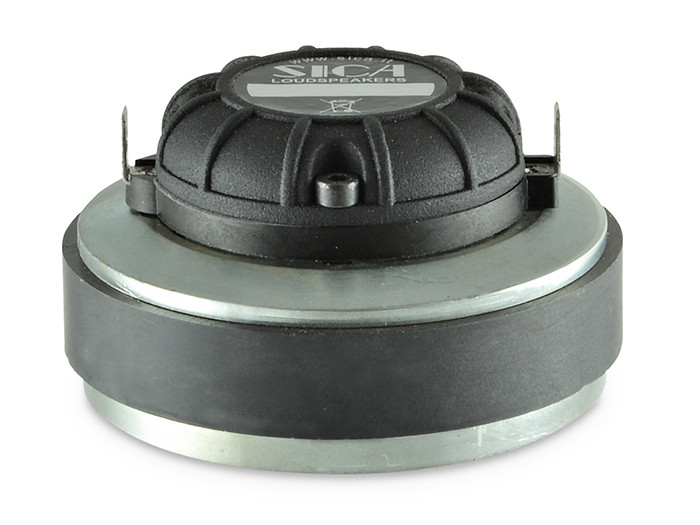

SICA CD 90.38/405, 8 Ohm Compression Driver
SICA CD 90.38/405, 8 Ohm Compression Driver
59.45 € excl. VAT

SICA CD 90.38/405, 8 Ohm Compression Driver

SICA CD 90.38/405, 8 Ohm Compression Driver
SICA CD 90.38/405, 8 Ohm Compression Driver
SICA CD 90.38/405, 8 Ohm Compression Driver
SICA CD 90.38/405, 8 Ohm Compression Driver
SICA CD 90.38/405, 8 Ohm Compression Driver
SICA CD 90.38/405, 8 Ohm Compression Driver
SICA CD 90.38/405, 8 Ohm Compression Driver
SICA CD 90.38/405, 8 Ohm Compression Driver
Manufacturer
Sica
Further data
In stock
59.45 € excl. VAT
Details
General Specifications
CD Nominal Diameter

90 mm
Nominal Impedance

8 Ω
CD Rated Power AES

30 W
CD Continuous Program Power

60 W
Sensitivity @ 1W/1m

105.7 dB
Voice Coil Diameter

38 mm (1.5")
Voice Coil Winding Depth

2.5 mm
Magnetic Gap Depth

2.5 mm
Flux Density

1.64 T
DC Resistance

6.0 Ω
Resonance Frequency

1.0 kHz
Magnet Weight

405 g
Net Weight

0.93 Kg
Recommended Crossover Frequency

2.0 kHz
Throat Diameter

25.4 mm (1")



Constructive Characteristics
Magnet Type

Ferrite
Voice Coil Winding Material

Aluminium Flat Wire
Voice Coil Former Material

Kapton
Diaphragm

PEI
Ferrofluid in Air Gap

No
Spare Part Code

Z009392



Mounting Information
Overall Diameter

90 mm
Mounting Holes

2 holes M6 on Ø76 mm
Note

adapter Q07320A is required for coupling with Sica Horns
Total Depth

46.6 mm
Info
Impedance, Z
8
Article No.
SIC-Z009487C
Weight
930 g/db
