Dp5 player will automatically retrieve storage devices, such as Pc file, Flash Drive, Portable Hard Drive MicroSD Card, and even SMB shared folders (NAS). You can choose to play music directly. Multiple inputs and outputs provide more practicality for daily music time.
Highlights
- Lossless player with headphone amplifier output
- Built-in with an ES9038PRO chip which has high SNR and low distortion
- Supports streaming playback of DLNA and Airplay
- Supports Native DSD, WAV, APE, FLAC , AIFF, MP3 Etc.
- Supports 100M network interface and 2.4G/5G WIFI

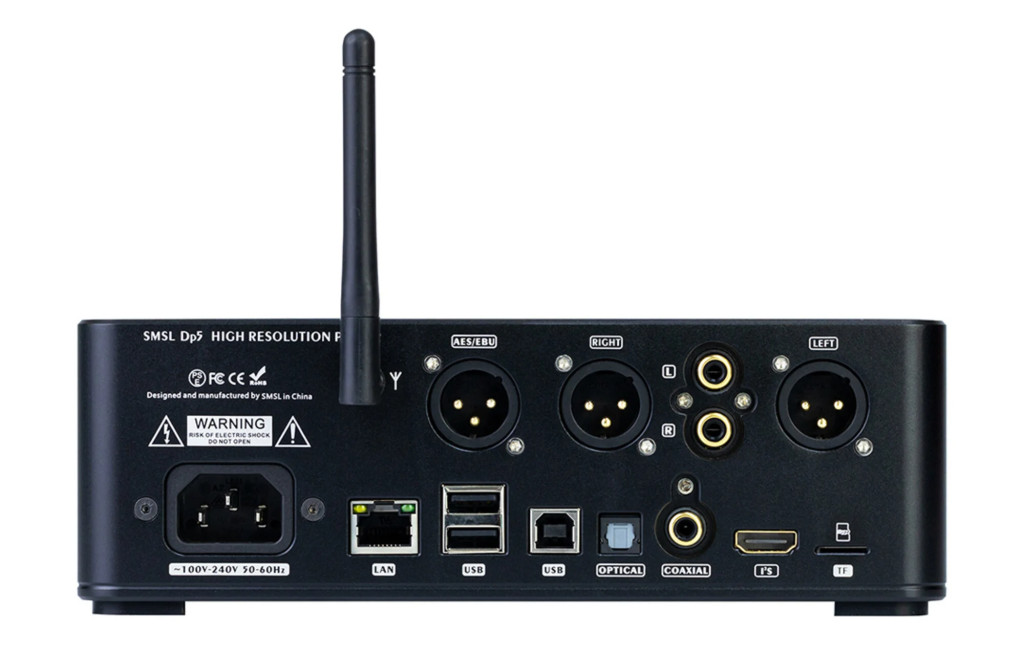

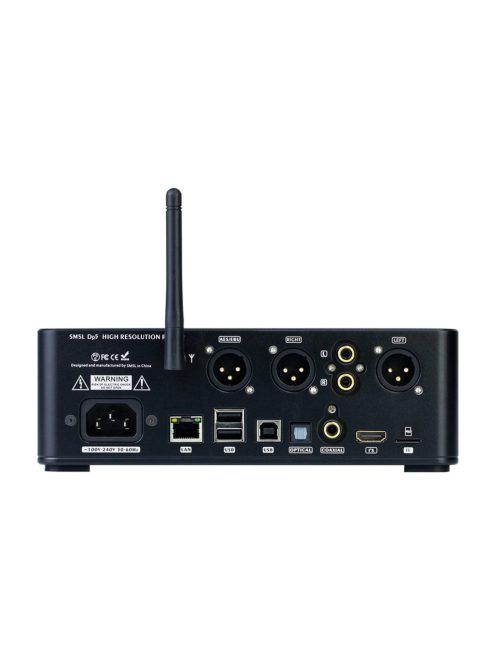

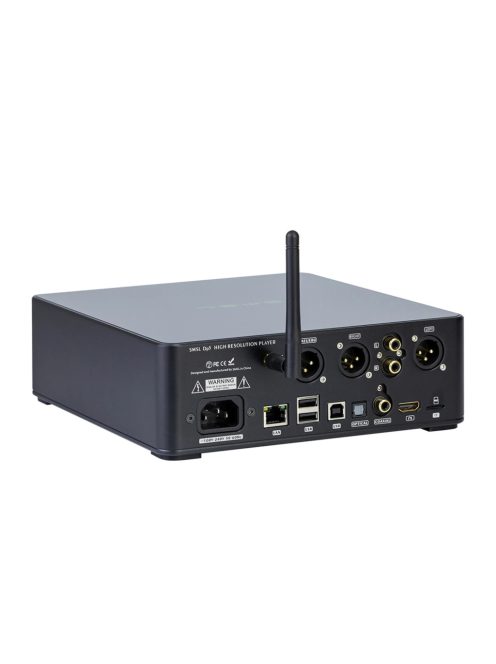

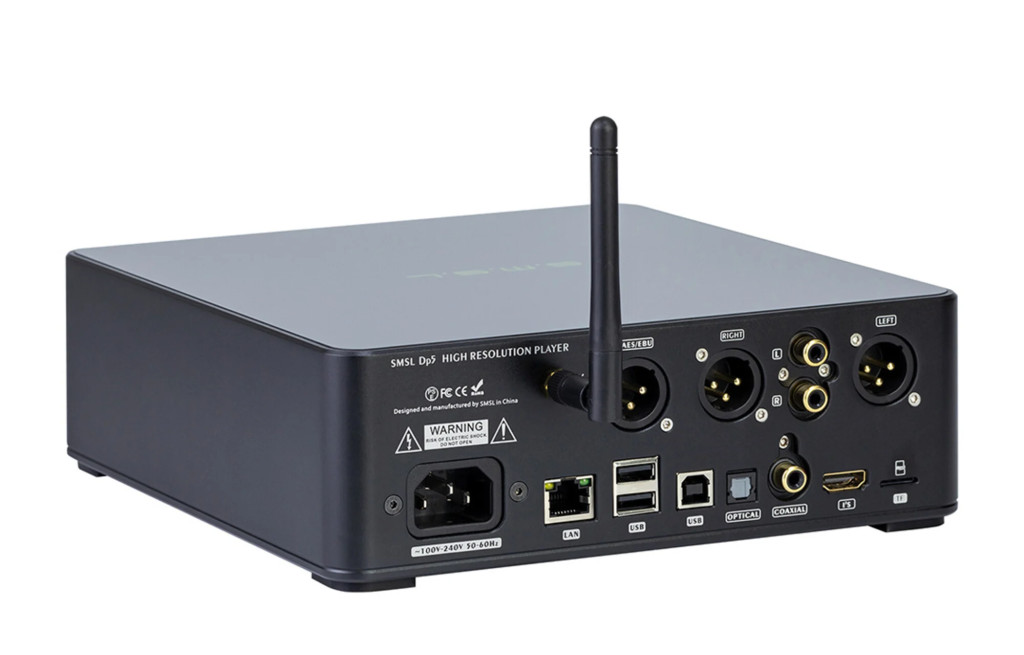

- With analog, USB, I2S, AES, Coaxial, Optical fiber signal output
- External hard-Disk connected by USB supports up to 4TB capacity , and supports NTFS/FAT32 format
- MQA HIGH Resolution Lossless which means it can decode MQA files.
Product Details

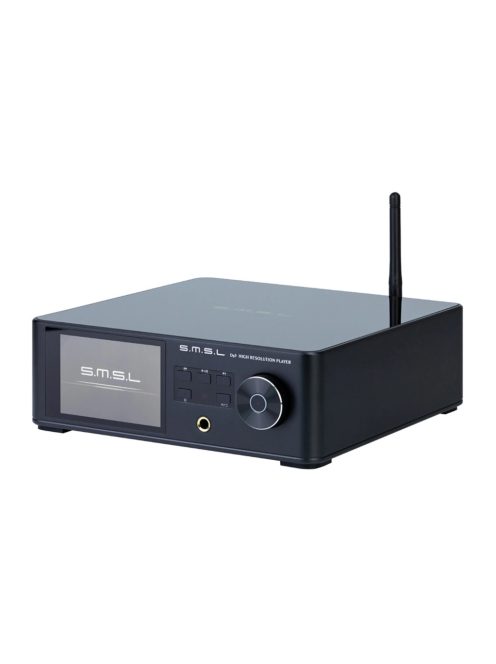

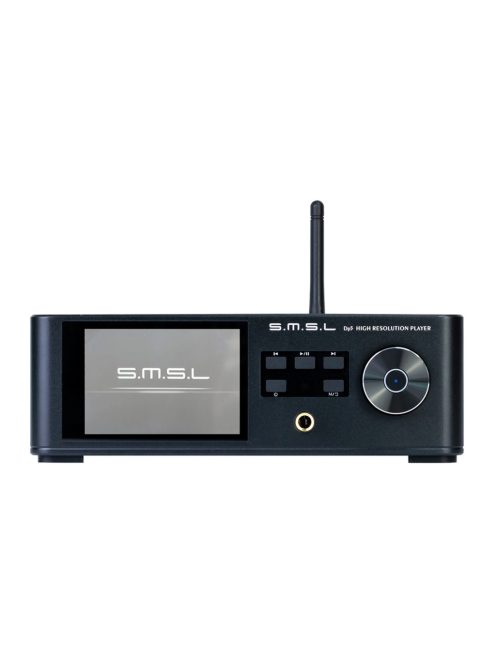

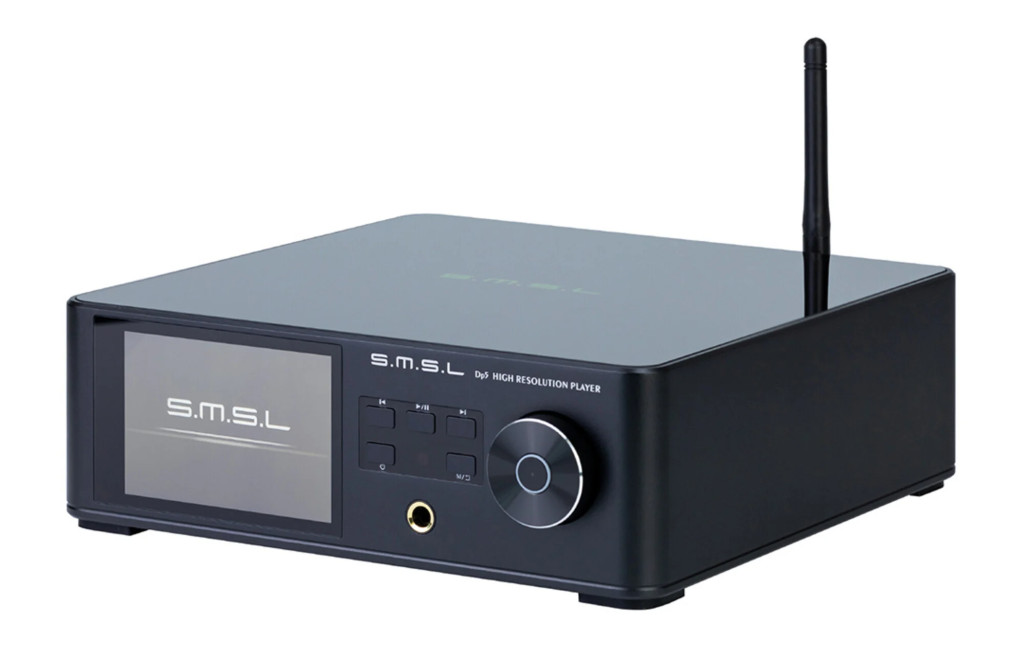

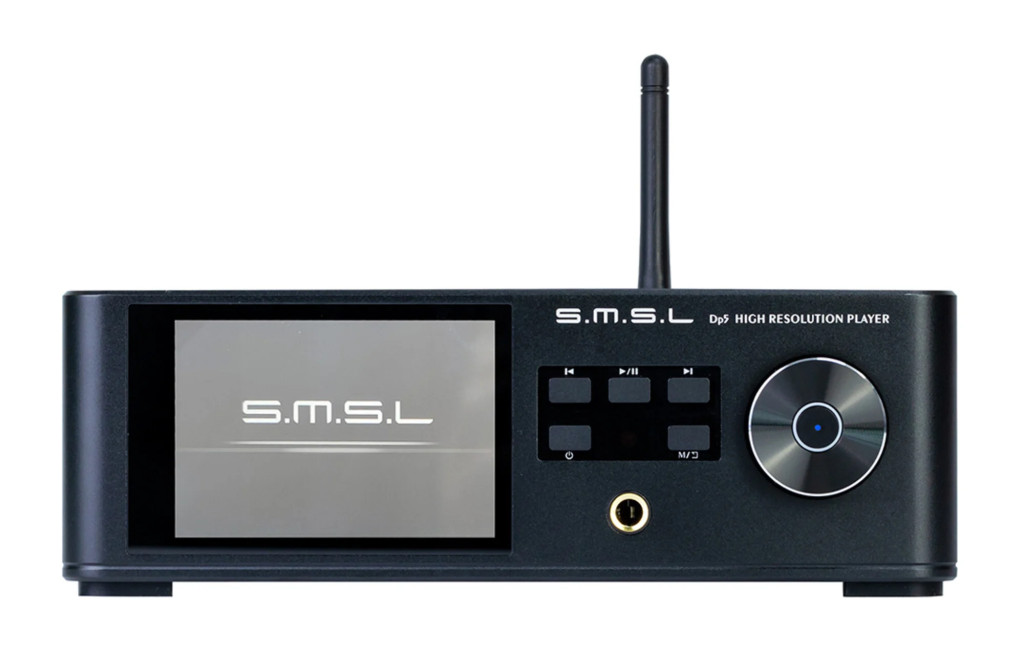

SMSL DP5 Network Music Player
This DP5 player supports most audio file formats on the market, including MP3, WMA, WAV, AIFF, AAC, FLAC, OGG, APE, ALAC, DSF, DFF, etc. Supports AirPlay. As long as the DP5 is connected to the same local area network with your iOS device, it will appear in the AirPlay device list. You can simply send the audio stream to DP5 streamer by selecting it. In addition, the Dp5 player also supports the dlna.
Rated power output (RMS)Headphone 89mW (32Ω), 64mW (64 Ω), 27mW (150Ω) and 14 mW (300Ω)
DistortionTHD+N: 0.00015%
DSPDSD DOP: DSD 256, DSD Native: DSD 256
DACES9038PRO D/A Chip
Maximum sampling rateAPE 8K-384K, WAV 8K-384K, WMA 8K-96K, FLAC 8K-384K (16-24 bit) and DSF 2.8M-11.2M. DFF 2.8M-11.2M (1 bit) and Aiff 8K-384K (16-32bit), M4A 8K-384K (16-24bit) and MP3 8K-48K, AAC 8K-48K, OGG 8K-48K (16 bit)
Optical S/PDIF in/outOut
Coaxial in/outOut
RCA in/outOut
Bus in/outUnbalanced line output level: 2.1Vrms and Balanced line output level: 5.2Vrms
USBIn: USBx2 and USB Audio DSD256 ans PCM 384Khz
Memory card slotYes, max 256 Gig
Headphone jackYes, 6,5mm
Bluetooth yes
Wi-Fi yes
Remote control yes
App control yes
Accepted file formatsAPE, WAV, WMA, FLAC. DSF, DFF, ISO DSD, ISI DST, Aiff, M4A. MP2, MP3, AAC and OGG
Power consumption4W
Stand-by power consumption0.5W
