AA-AA11117 Digital Volume Control Kit

Name: AA-AA11117 Digital Volume Control Kit
Brand: SureElectronics
SKU: SUR-AA-AA11117
Price: 8.99 EUR
Availability: InStock

SureElectronics

Details

Shipping within (if available from supplier)

4-5 working days

Manufacturer

SureElectronics

Further data

Out of stock - orderable

7.08 € excl. VAT

Details

Product description

Add the AA-AA11117 plug in volume control to Sure's amplifier boards that have an extensible interface for volume adjustment.

Highlights

Noise-free stepped volume control

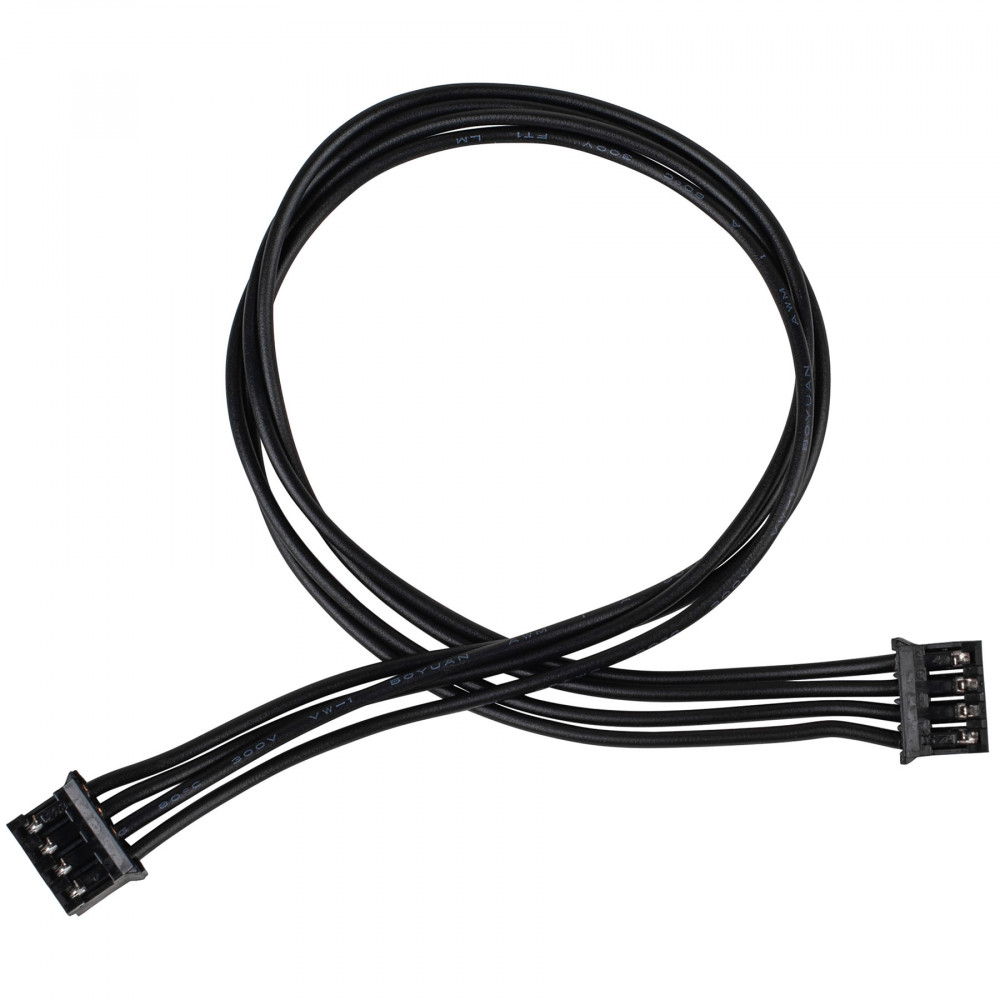

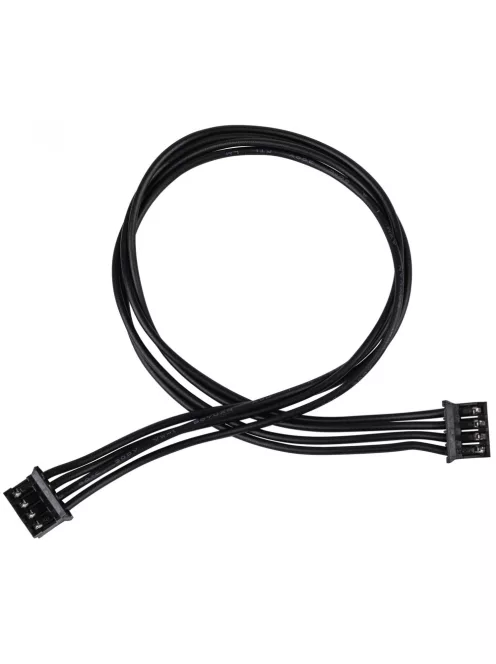

8" jumper cable for flexibility
Plugs into most new single and dual channel Sure amp boards without soldering
LED status indicator
No extra power supply needed when used with listed amp boards
Push on/off knob mutes volume

Product details

Sure Electronics AA-AA11117 Digital Volume Control Kit

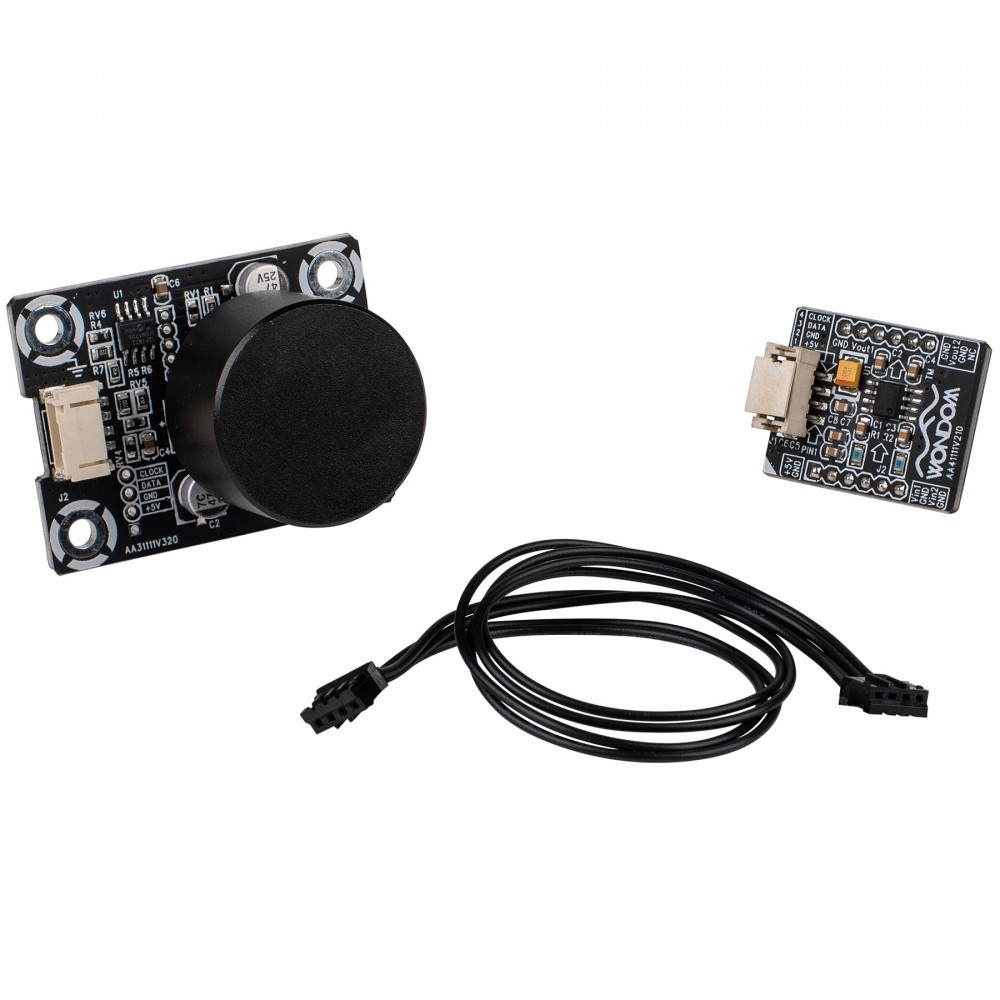

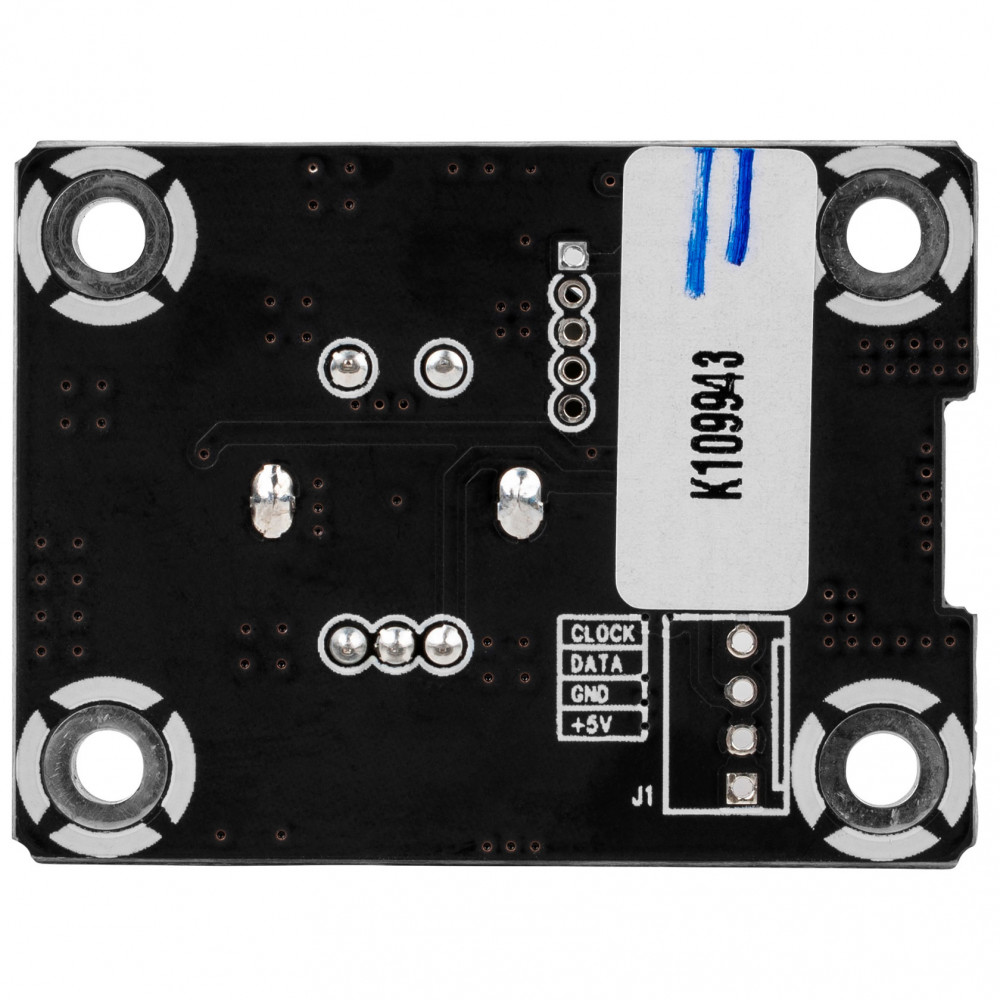

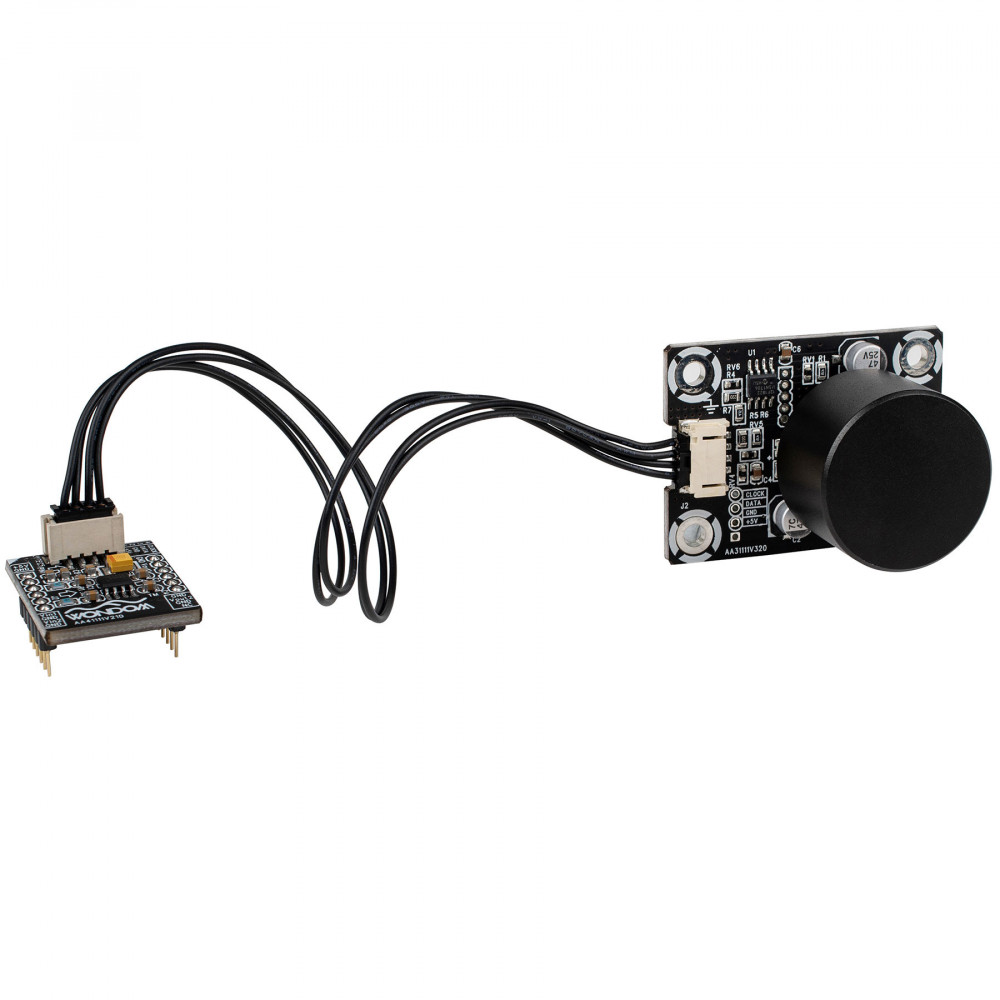

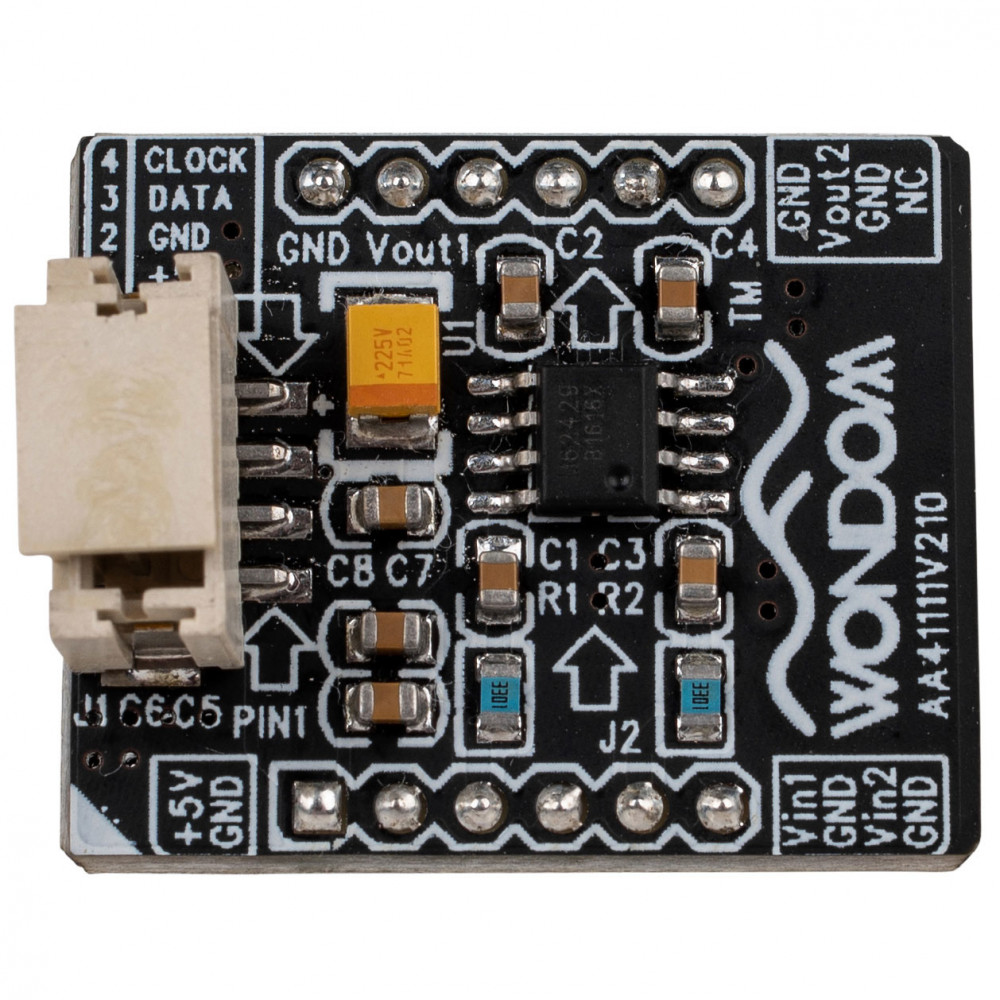

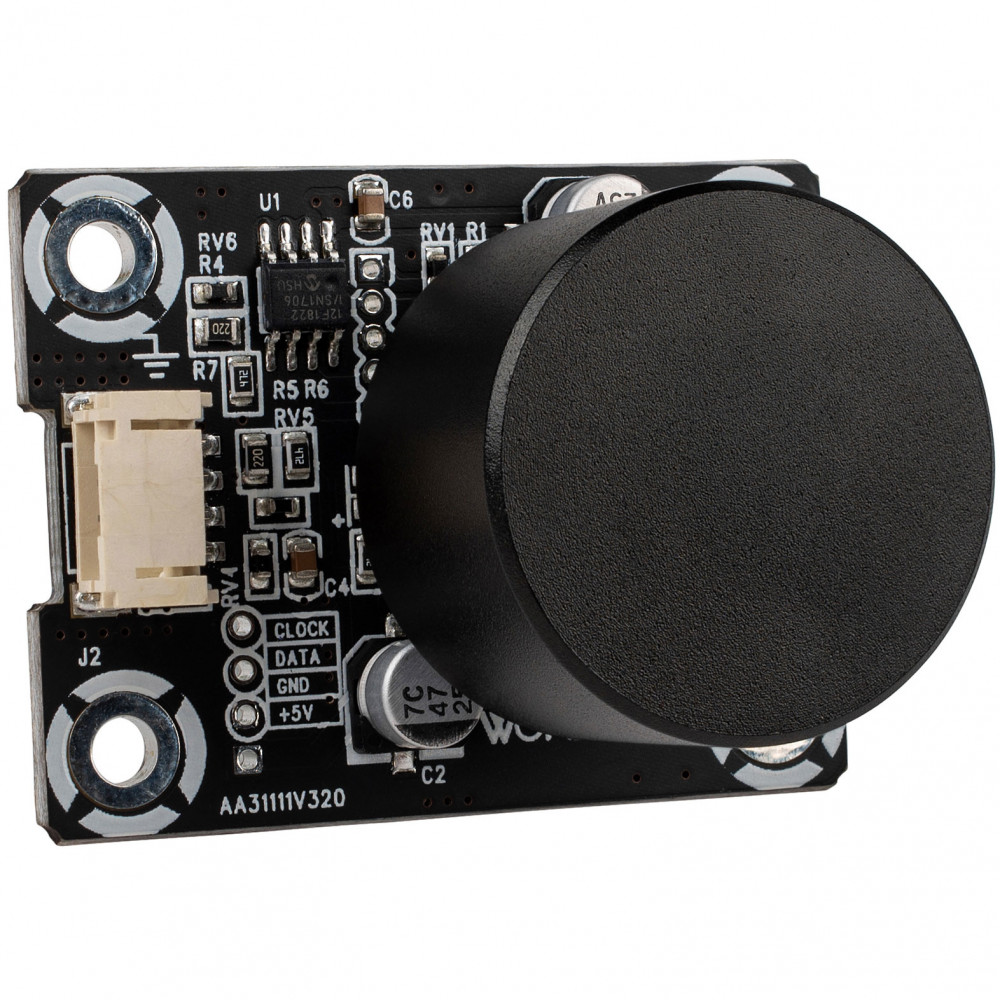

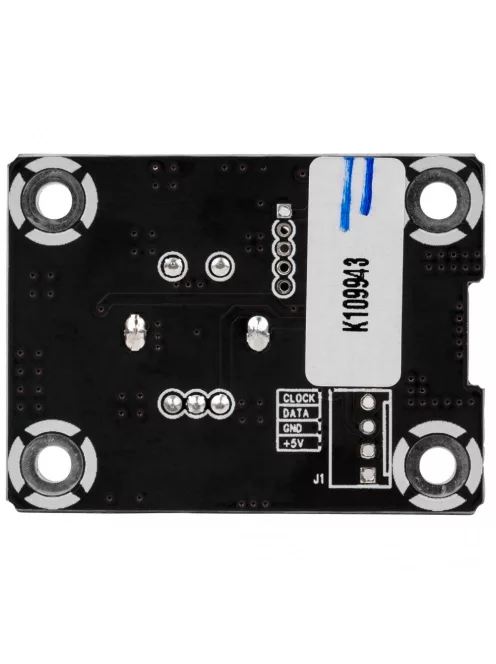

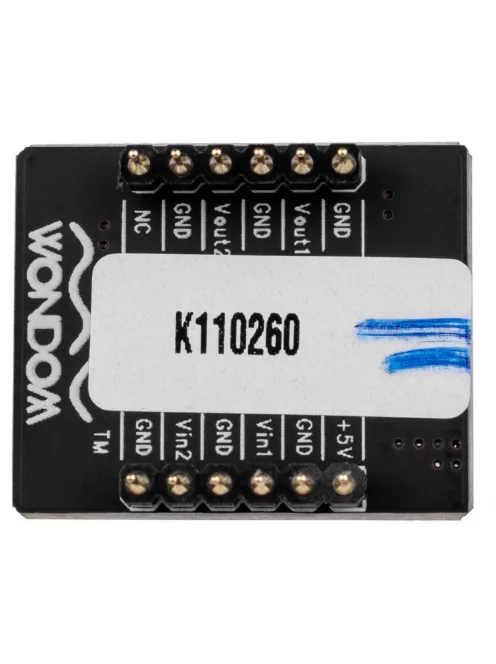

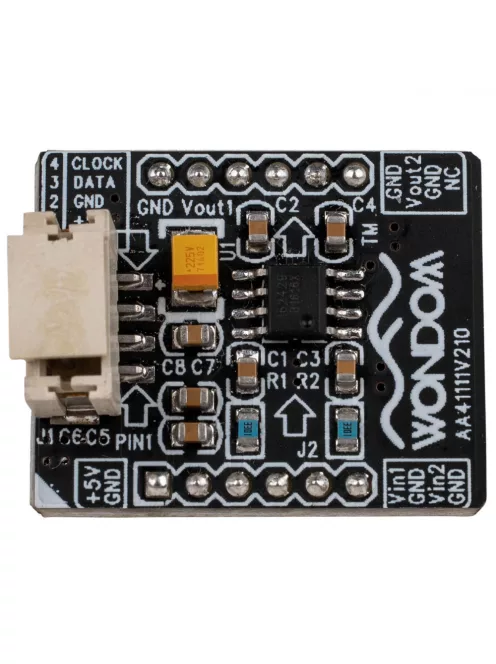

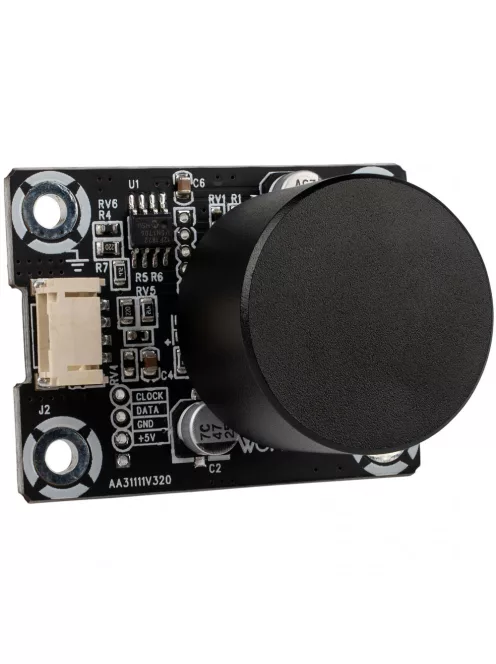

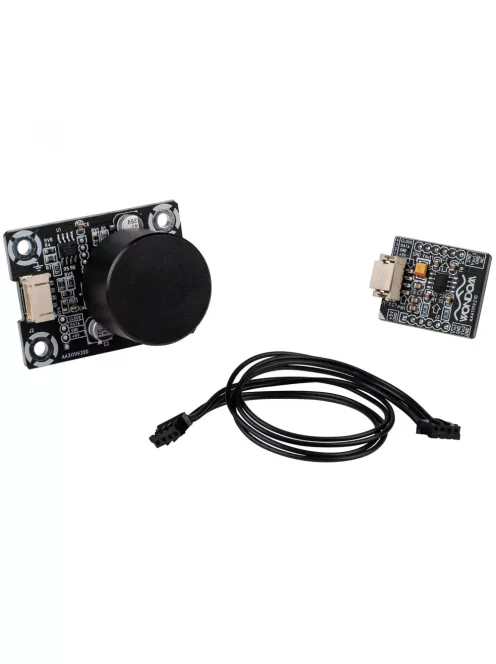

This package consists of a rotary encoder board and a volume control board, matching product used with the amplifier boards which have extensible interfaces for volume adjustment. This combination provides high precision volume control, low THD+N, and high sensitivity. Plugs into most new Sure amp boards without soldering, and the included jumper cable extends the volume knob 8" from the board for easy case mounting.

Note: Only works with the Sure/Wondom boards listed in the attached manual.

Specifications: • Voltage required: 5 VDC • Quiescent current: 10 mA • Volume control board: 1.15" x 0.95" • Decode Board: 2" x 1.5" x 1.2" including knob without 4 pin plug.
