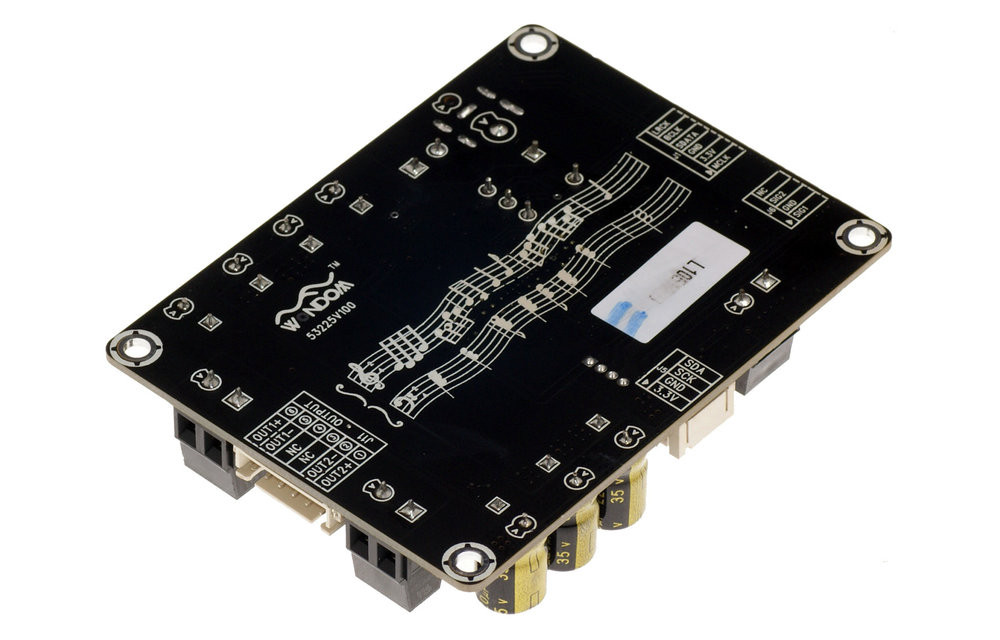

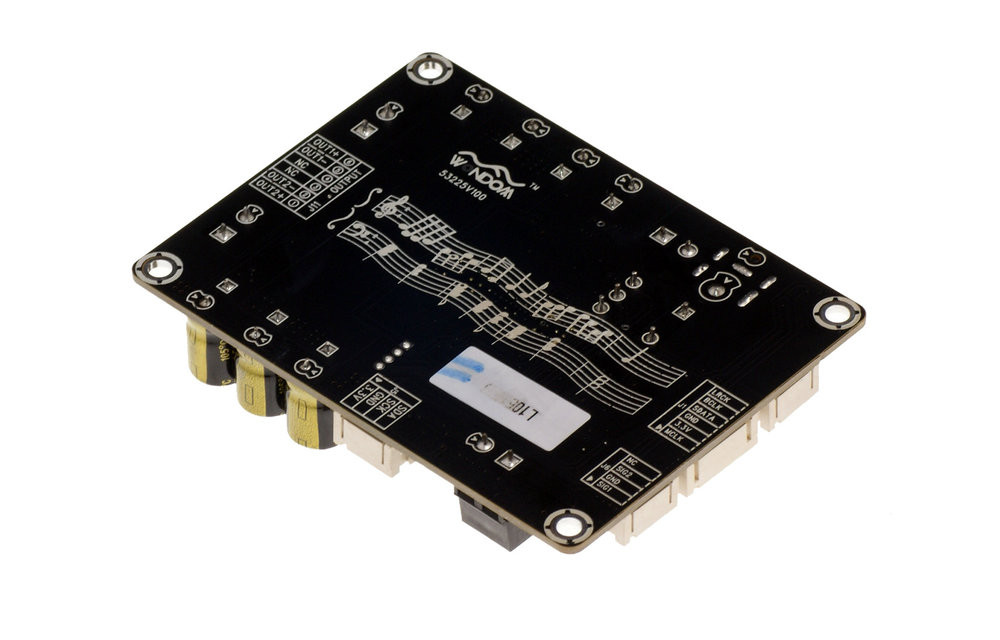

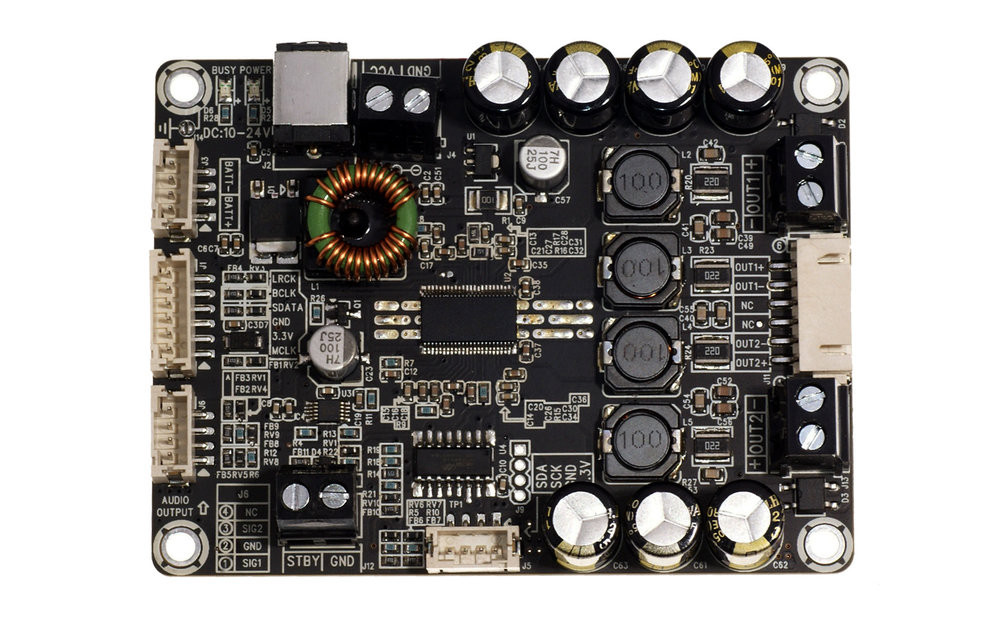

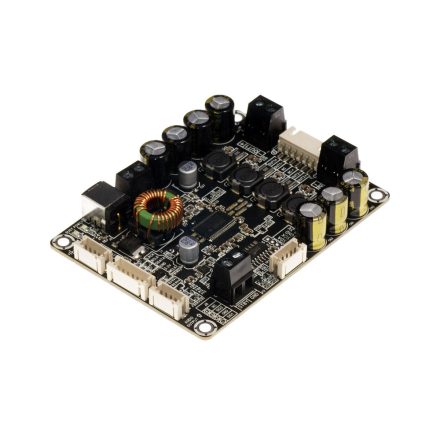

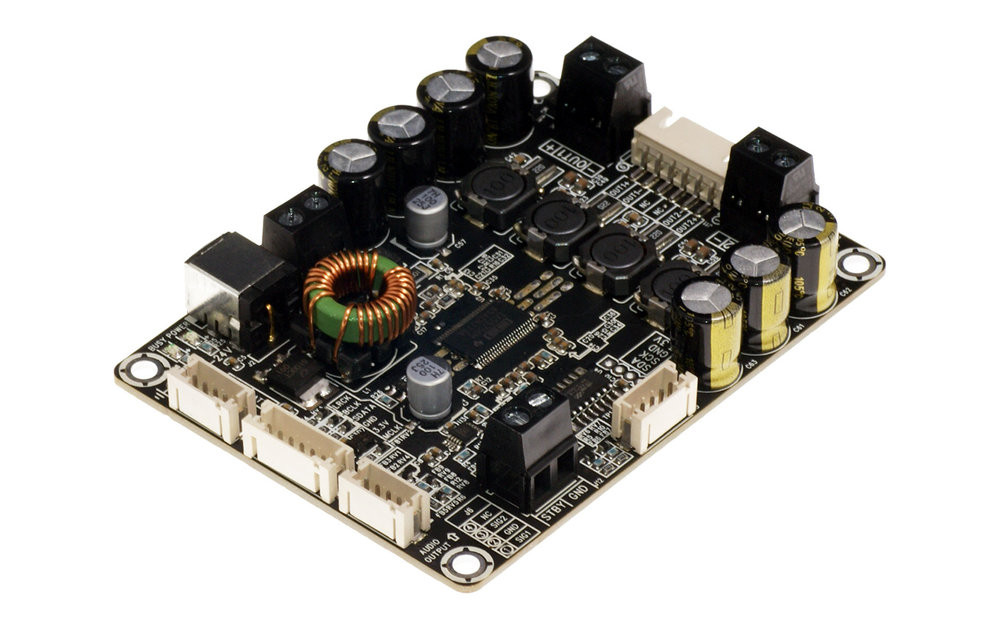

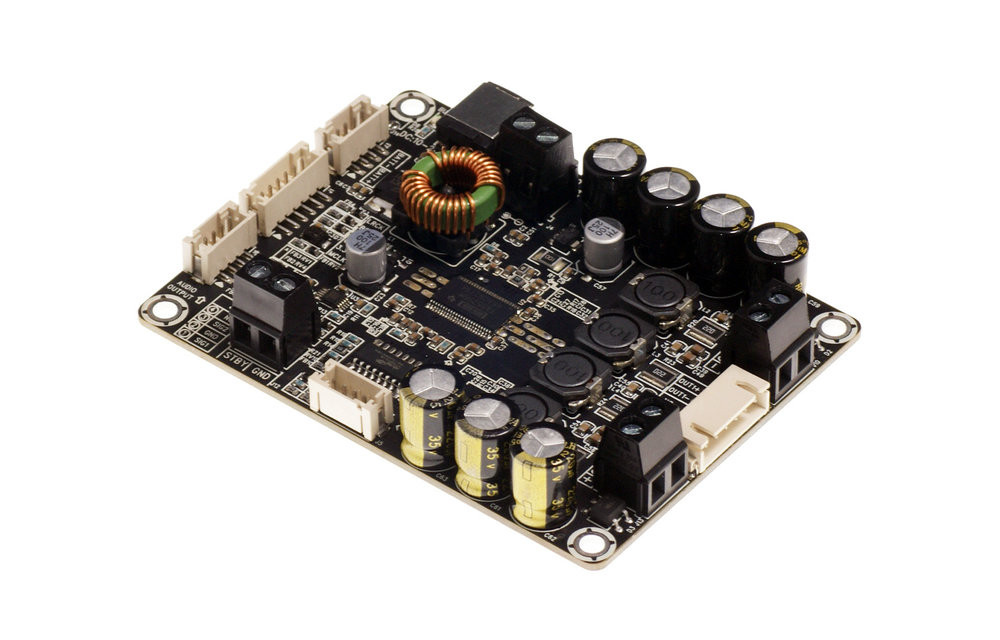

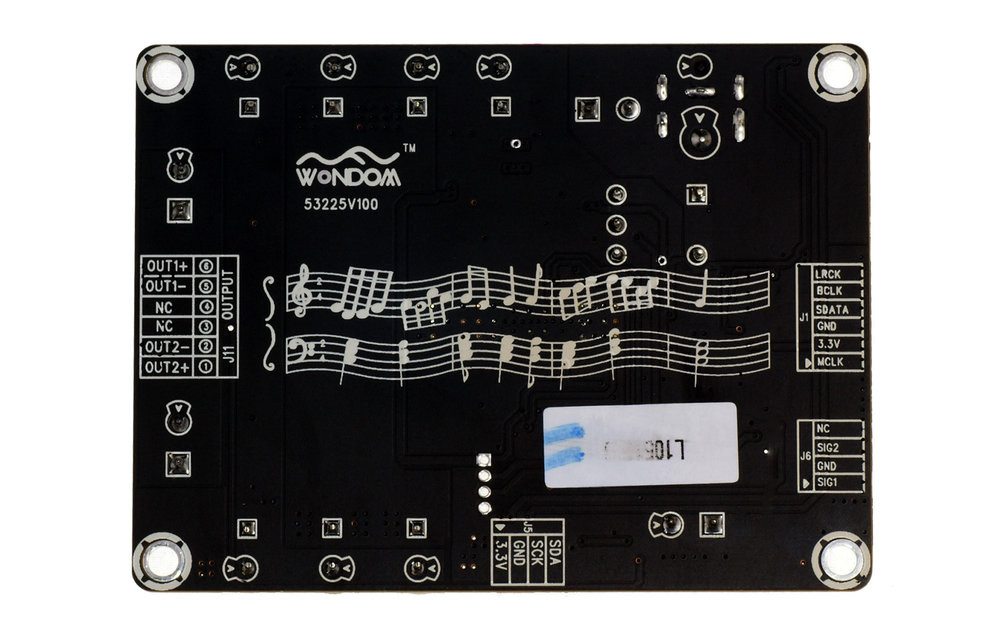

Sure Electronics AA-AB32256 2 X 30 Watt - TAS5754 Digital Input Class D Audio Amplifier Board & DAC
AA-AB32255 is a digital input high performance Class D audio amplifier with integrated audio processor, based on the TAS5756 from Texas Instruments. It provides 30Watts stereo, making it suitable for PC audio, Sound bars, Active speaker, DIY applications such as Raspberry pi. AA-AB32255 supports I2S digital input and supports high resolution playback up to 192kHz/24bit so customers can enjoy music same as originally recorded. Its advanced design offers low noise, high SNR and low THD+N as 0.06%, delivering premium audio quality to listeners. Besides, this board also provides 3-wire audio digital interface (no MCLK required), supporting Raspberry Pi, offering a swift and convenient audio solution for DIYers. It can also work as a high performance stereo audio DAC and supports direct analog output without amplification.
Suggested power supply solution: Huntkey PS-SP11504 19V 2.1A 40W AC/DC Power Adapter. If you have other power supply requirements, please feel free to contact us.
Specifications: Number Of Channel(s): 2 • Output Power: 2 x 30 Watt • Size: 3.6 x 2.7 inches (91.44 mm x 68.58 mm) • Heat Dissipation: No Heat Sink & FAN • Supported Parallel Bridge Tied Load Mode: NO • Input: I2S • Power Voltage: 10V-24V Output Power • 30W@ 4Ohm 19V DC THD+N 10% • High Performance DAC • I2S Input Supported • 3-Wire Digital Input • (No MCLK Required) • 44.1kHz-48kHz Sample Rate • 16Bit/24Bit Resolution • Net Weight: 58g/ 0.13 lbs (±10%) • Size: 3.6 x 2.7 x 0.72 inches
