AA-AB32996 2x15W 8 Ohm TPA3110 Class D Audio Amplifier Board

Name: AA-AB32996 2x15W 8 Ohm TPA3110 Class D Audio Amplifier Board
Brand: SureElectronics
SKU: SUR-AA-AB32996
Price: 23.89 EUR
Availability: InStock

SureElectronics

Details

Shipping within (if available from supplier)

4-5 working days

Manufacturer

SureElectronics

Further data

Out of stock - orderable

18.81 € excl. VAT

Details

Product description

This 2 x 15W Class D dual channel amplifier board employs a Tripath-style Texas Instruments TPA3110 chip to deliver excellent sound quality for budget-friendly price.

Highlights

Pre-assembled, pre-tested
Superb sound quality
Perfect Class-D architecture
Two channels—each up to 15W
Up to 88% efficiency
Does not require a heat sink for most applications

Product details

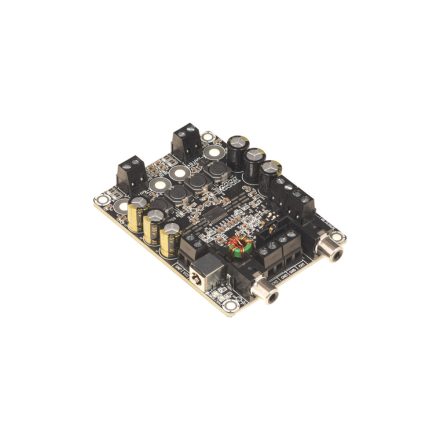

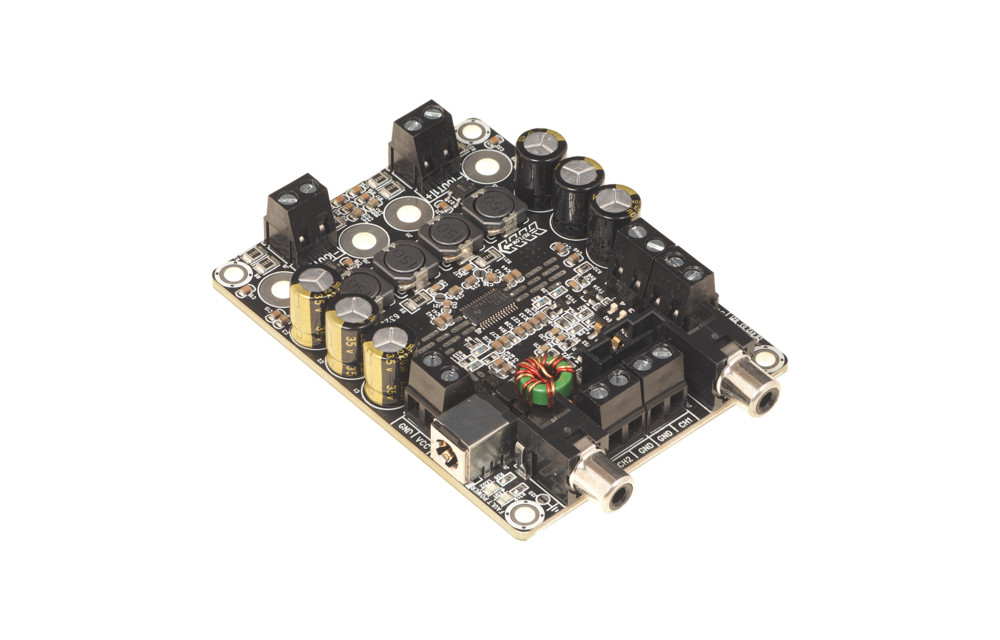

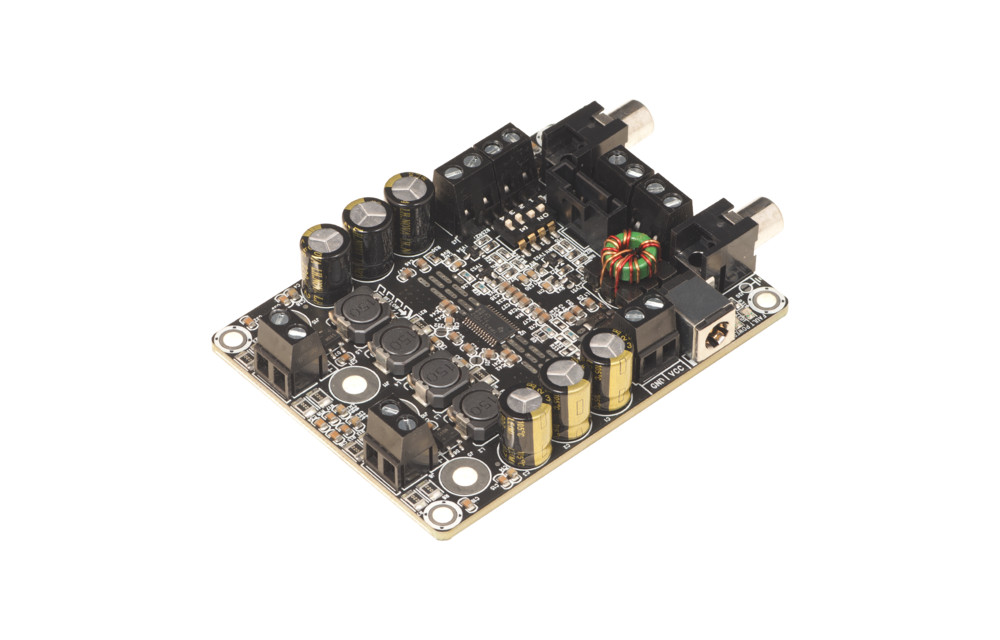

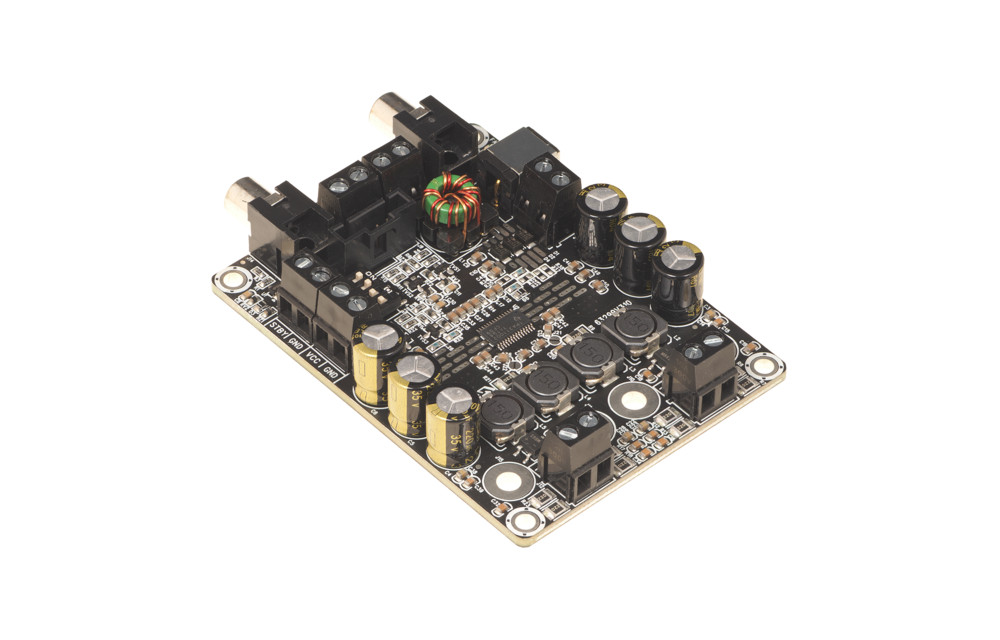

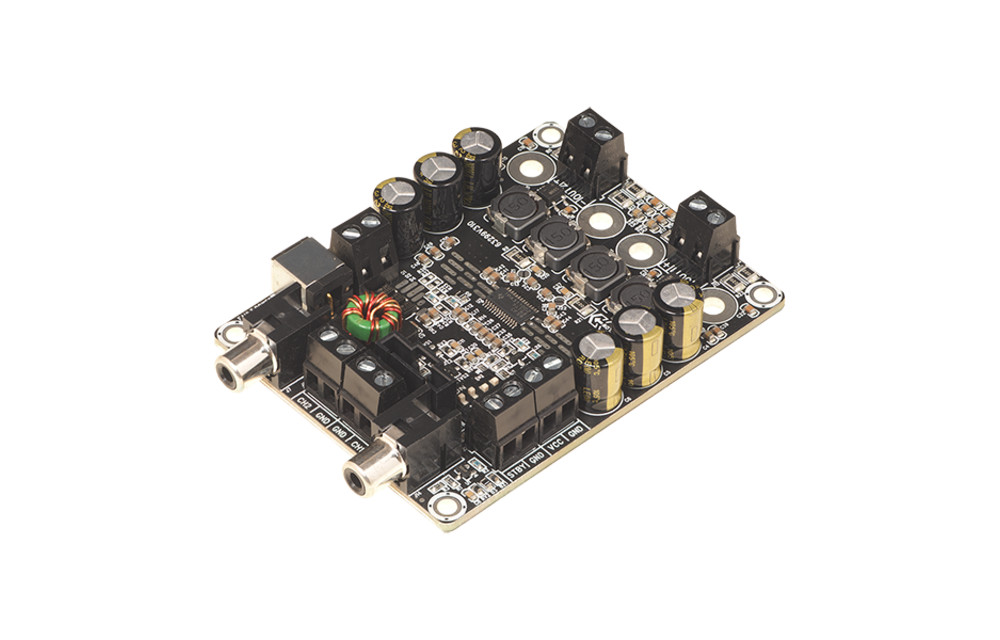

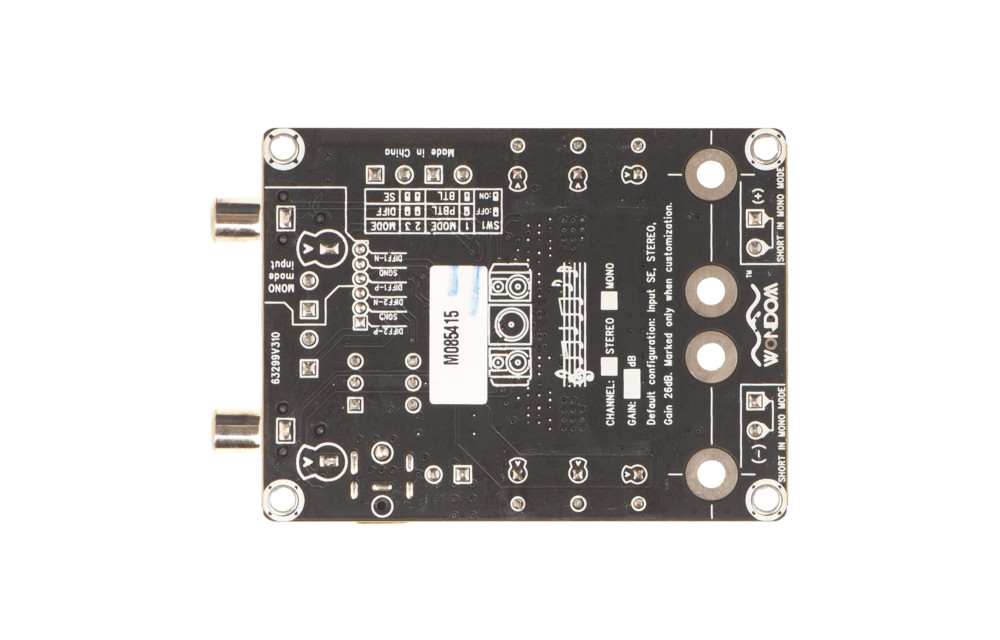

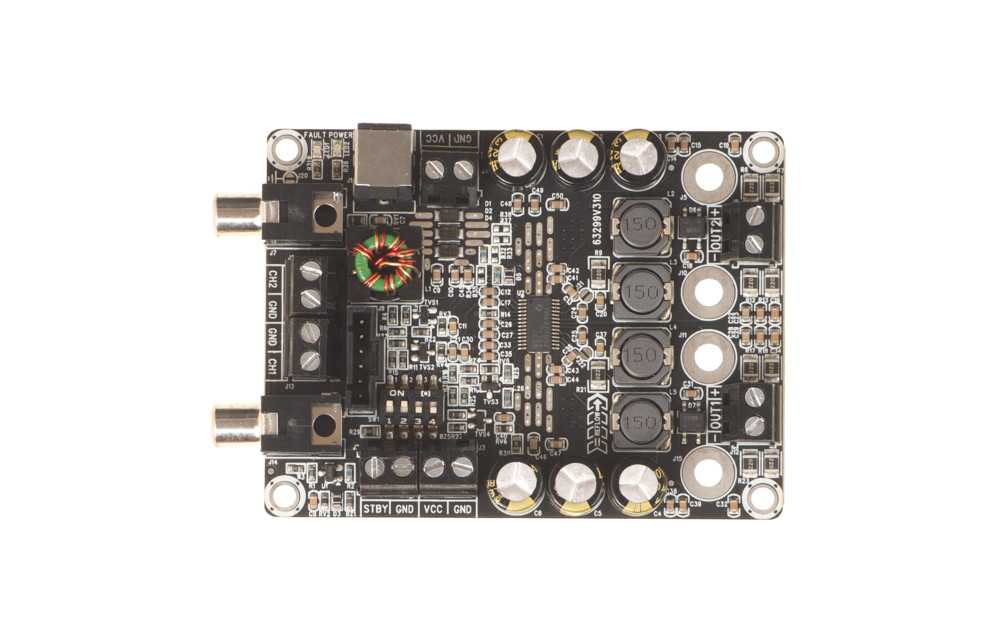

Sure Electronics AA-AB32996 2x15W 8 Ohm TPA3110 Class-D Audio Amplifier Board

Tip: Take a look at the table in this blogpost to see which power supply to choose for this product.

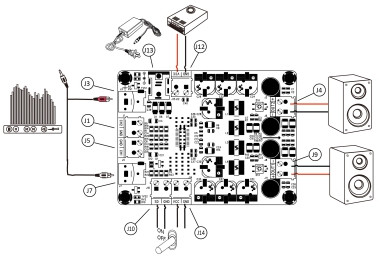

This stereo audio amplifier board delivers 15W output power per channel into an 8Ohm load. The circuit is based on a Tripath-style Texas Instruments TPA3110 chip, featuring high-efficiency and high performance with low THD+N and high SNR. This board supports PBTL, through a simple switch. Therefor the amplifier can be configured as mono 30W audio amplifier. In addition, AA-AB32996 supports not only single-ended input but also differential input. Low output power, compact size and high reliability making it suitable for DIY audio, home audio, industrial audio applications, kiosk, self-service equipment like vending machine, ticket machine, guide machine and so on. A 10 – 24 VDC power supply is required.

Info

Article No.

SUR-AA-AB32996

Opinions

Be the first to review this product!

Review
