PR08-A 2" Subwoofer bundle | W2-2040S + PR08

Product description
Highlights

Patented wave-shape structure design for passive radiator.
Co-injection molding technology applied.
Optimal balance of the internal loss and less damping of elasticity.
Size: 83mm x 83mm x 10mm.
Square shape.


Product details

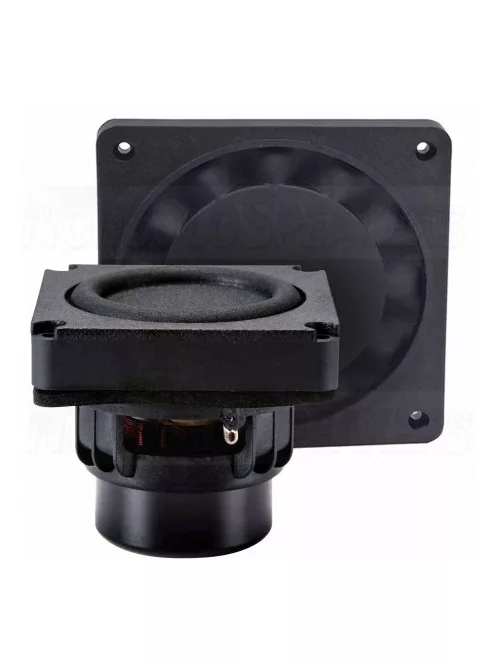

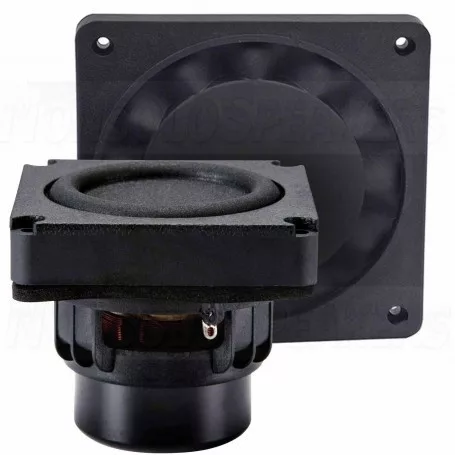

Tang Band PR08-A Subwoofer bundle | W2-2040S + PR08


Tang Band's 2" W2-2040 RBM micro subwoofer is designed with two cones and two surrounds to offer high fidelity low frequency reproduction to almost any application. Tang Band designed their revolutionary RBM (Real Balanced Mode): flat subwoofers for ultra-linear operation, while remaining as thin as possible. The secret to their low distortion performance is in the patented symmetrical suspension system.


Cabinet Recommend :

Volume: 0.5 L
F0 = 68 Hz, F3 = 62 Hz
Total Mms = 20 g
Details cabinet data please refer to the Data sheet PDF file.


Amplifier Design Suggestion:

Suggest amplifier power: 15W (RMS):
Suggest crossover point (-3dB): -12dB/Oct: High-pass filter: 65Hz, Low-pass filter: 160Hz


Bundle Content：

1 pc W2-2040S
1 pc PR08
Excluding cabinet and other accessories.
