Woofer TypeFull-range
Nominal Diameter: 1-3/4"
Power Handling (RMS): 6 Watts
Power Handling (max): 12 Watts
Impedance (Z): 4 ohms
Sensitivity: 79 dB 1W/1m

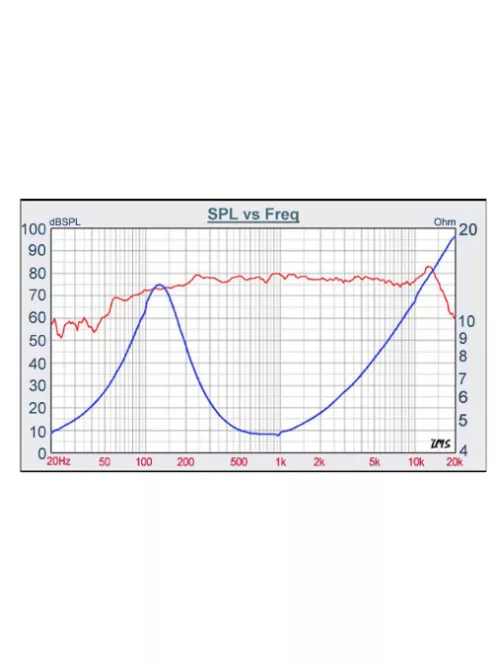

Frequency Response: 120 to 15,000 Hz
Voice Coil Diameter: 1.1"
DC Resistance (Re): 3.5 ohms
Voice Coil Inductance (Le): 0.07 mH
Resonant Frequency (Fs): 120 Hz
Mechanical Q (Qms): 1.33
Electromagnetic Q (Qes): 0.47
Diaphragm Mass Inc. Airload (Mms): 1.68g
Mechanical Compliance of Suspension (Cms): 0.949 mm/N
Surface Area of Cone (Sd): 8.935 cm²
BL Product (BL): 3.14 Tm
Compliance Equivalent Volume (Vas): 0.0038 ft.³
Maximum Linear Excursion (Xmax): 2.3 mm
Cone / Diaphragm Material: Aluminum
Surround Material: Santoprene®
Voice Coil Wire MaterialCopper
Basket / Frame Material: Polymer
Magnet Material: Neodymium

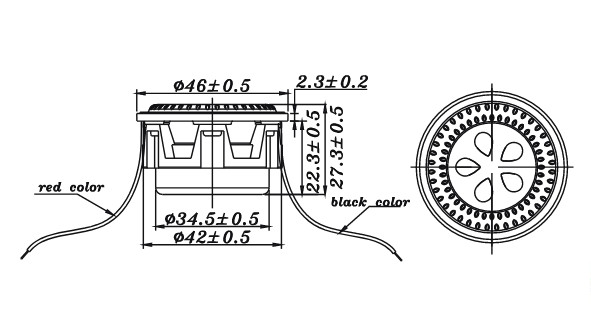

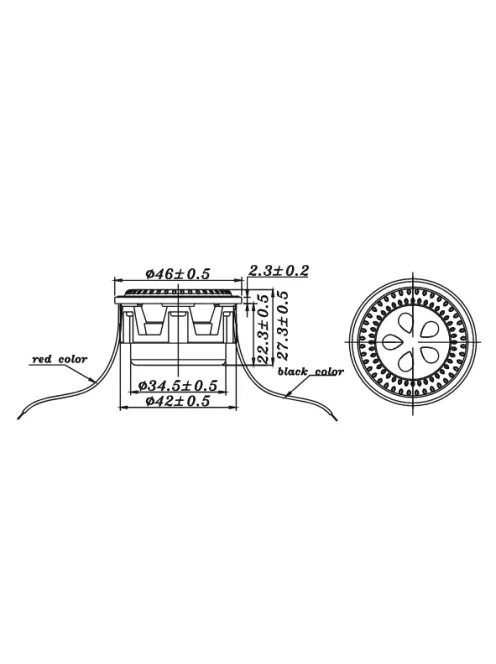

Overall Outside Diameter: 1.81"
Overall Depth: 1.07"
Baffle Cutout Diameter: 1.67"
