Woofer TypeSubwoofer
Nominal Diameter: 3"
Power Handling (RMS): 15 watts
Power Handling (max): 30 watts
Impedance (Z): 4 ohms
Sensitivity: 76 dB 1W/1m

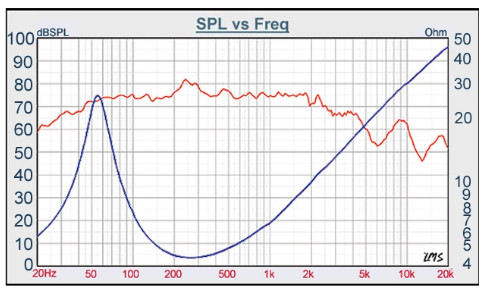

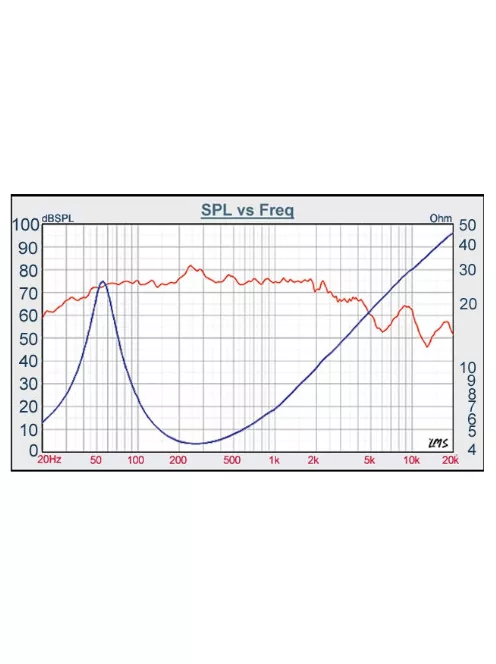

Frequency Response: 55 - 2000 Hz
Voice Coil Diameter: 0.8"
DC Resistance (Re): 3.6 ohms
Voice Coil Inductance (Le): 0.19 mH
Resonant Frequency (Fs): 55 Hz
Mechanical Q (Qms): 3.17
Electromagnetic Q (Qes): 0.5
Total Q (Qts): 0.43
Diaphragm Mass Inc. Airload (Mms): 9.98 g
Mechanical Compliance of Suspension (Cms): 0.74 mm/N
Surface Area of Cone (Sd): 27 cm²
BL Product (BL): 5.28 Tm
Compliance Equivalent Volume (Vas): 0.03 ft.³
Maximum Linear Excursion (Xmax): 5 mm
Cone / Diaphragm Material: Poly
Surround Material: Santoprene®
Magnet Material: Neodymium

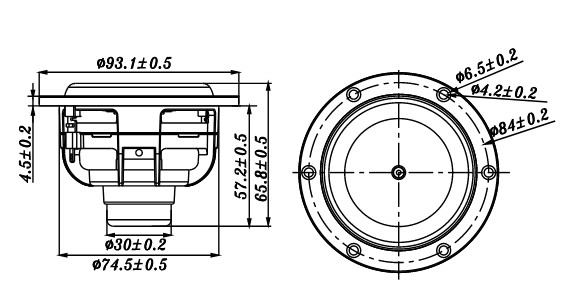

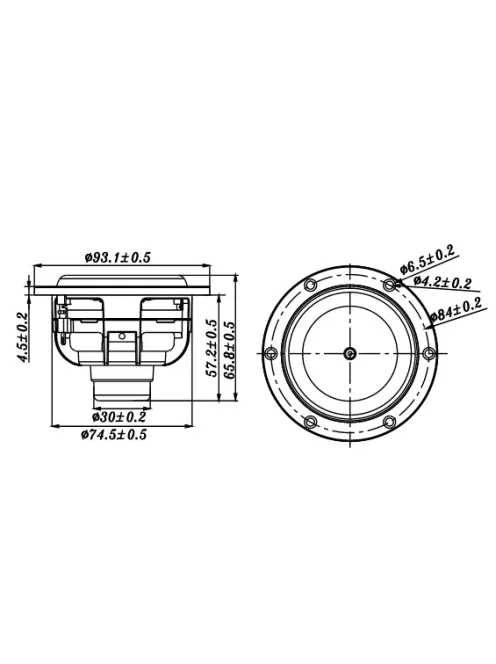

Overall Outside Diameter: 93.2 mm
Overall Depth: 65.8 mm
Baffle Cutout Diameter: 74.4 mm
# Mounting Holes: 6
