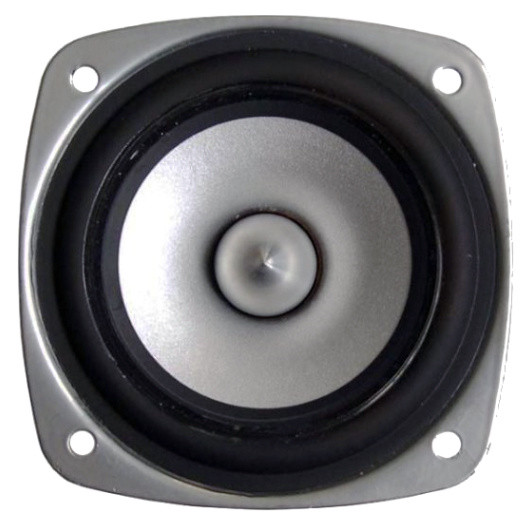

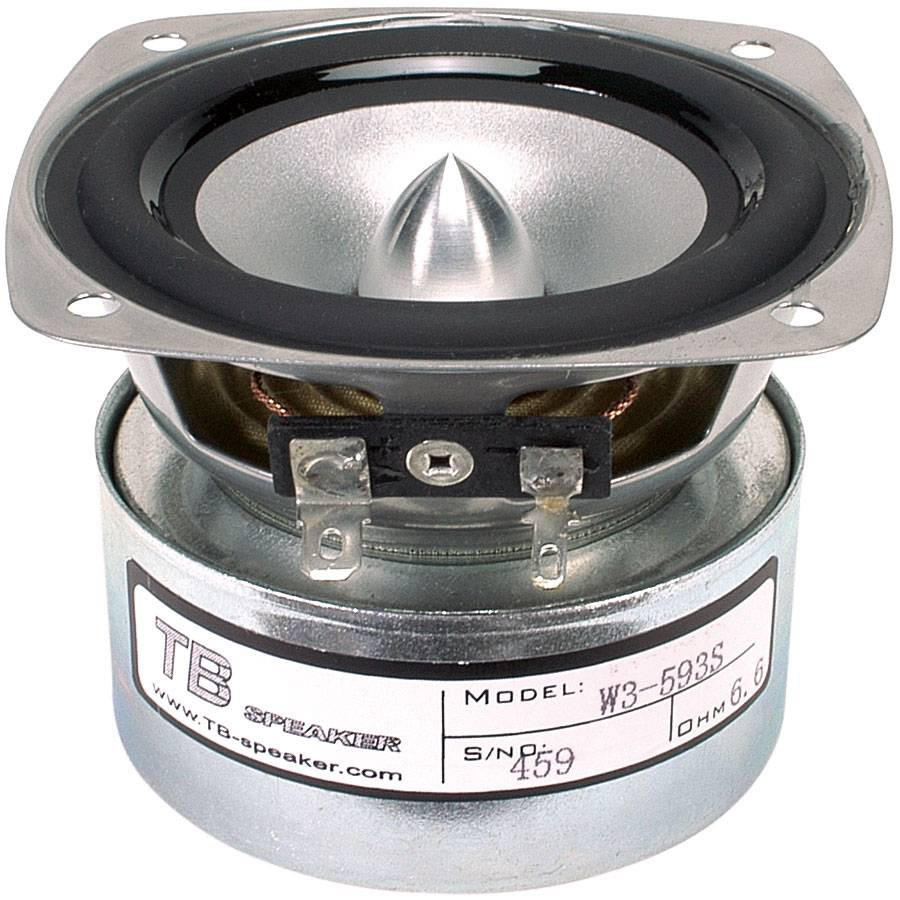

W3-593SF 3" Full Range Silver Cone Driver

32.22 € excl. VAT

W3-593SF 3" Full Range Silver Cone Driver

Name: W3-593SF 3" Full Range Silver Cone Driver
Brand: TangBand
SKU: TAN-W3-593SF
Price: 40.93 EUR
Availability: InStock

TangBand

Details

Shipping within (if available from supplier)

4-5 working days

Manufacturer

TangBand

Further data

Out of stock - orderable

32.22 € excl. VAT

Details

Woofer TypeFull-Range

Nominal Diameter: 3"

Power Handling (RMS): 12 Watts

Power Handling (max): 25 Watts

Impedance (Z): 8 ohms

Sensitivity: 86 dB 1W/1m

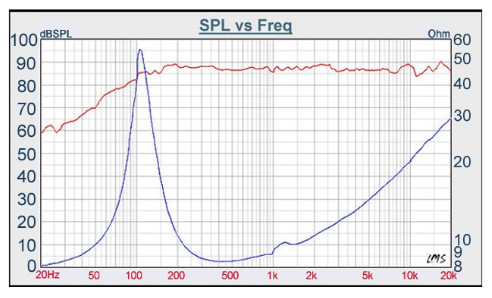

Frequency Response: 110 to 20,000 Hz

Voice Coil Diameter: 0.75"

DC Resistance (Re): 6.6 ohms

Voice Coil Inductance (Le): 0.08 mH

Resonant Frequency (Fs): 110 Hz

Mechanical Q (Qms): 5.64

Electromagnetic Q (Qes): 0.64

Total Q (Qts): 0.58

Diaphragm Mass Inc. Airload (Mms): 2g

Mechanical Compliance of Suspension (Cms): 1.83 mm/N

Surface Area of Cone (Sd): 32 cm²

BL Product (BL): 3.17 Tm

Compliance Equivalent Volume (Vas): 0.09 ft.³

Maximum Linear Excursion (Xmax): 0.5 mm

Cone / Diaphragm Material: Paper

Surround Material: Santoprene®

Voice Coil Wire MaterialCCA

Voice Coil FormerKapton® / Polyimide

Basket / Frame Material: Steel

Magnet Material: Ferrite

Shielded: Yes

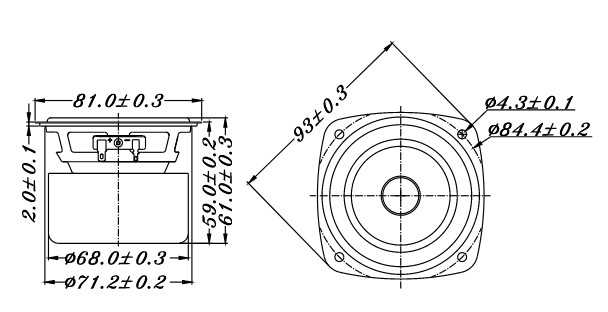

Overall Outside Diameter: 3.19"

Overall Depth: 2.4"

Baffle Cutout Diameter: 2.8"

# Mounting Holes: 4

Info

Article No.

TAN-W3-593SF
