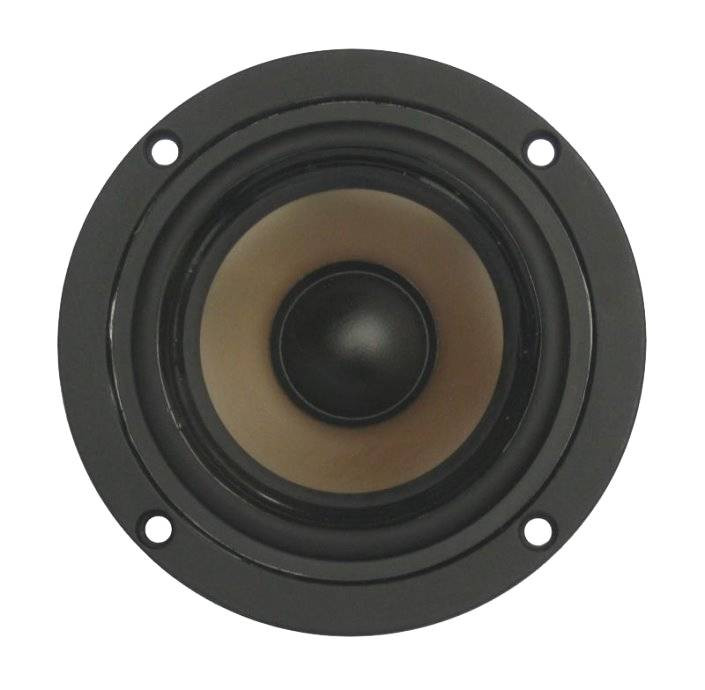

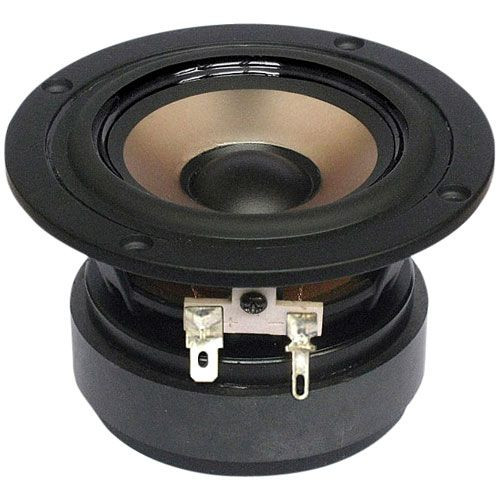

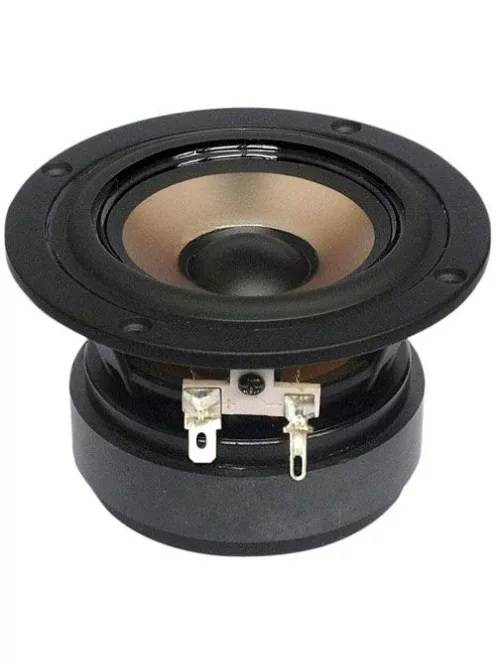

Woofer TypeFull-range
Nominal Diameter: 3"
Power Handling (RMS): 15 Watts
Power Handling (max): 30 Watts
Impedance (Z): 8 ohms
Sensitivity: 88 dB 1W/1m

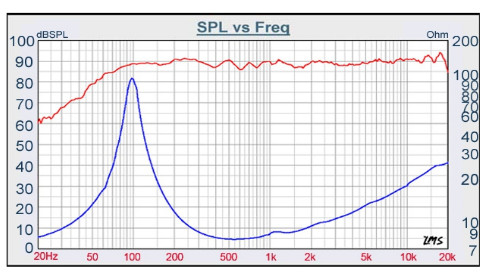

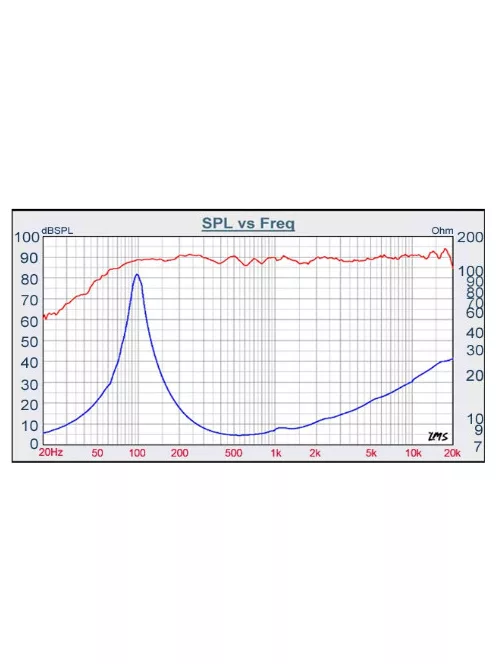

Frequency Response: 100 to 20,000 Hz
Voice Coil Diameter: 0.8"
Magnet Weight7.7 oz.
DC Resistance (Re): 6.6 ohms
Voice Coil Inductance (Le): 0.8 mH
Resonant Frequency (Fs): 100 Hz
Mechanical Q (Qms): 6.44
Electromagnetic Q (Qes): 0.41
Total Q (Qts): 0.39
Diaphragm Mass Inc. Airload (Mms): 2g
Mechanical Compliance of Suspension (Cms): 1.32 mm/N
Surface Area of Cone (Sd): 32 cm²
BL Product (BL): 4.47 Tm
Compliance Equivalent Volume (Vas): 0.07 ft.³
Maximum Linear Excursion (Xmax): 0.5 mm
Cone / Diaphragm Material: Poly
Surround Material: Santoprene®
Voice Coil Wire MaterialCCA
Voice Coil FormerKapton® / Polyimide
Basket / Frame Material: Cast Aluminum
Magnet Material: Ferrite

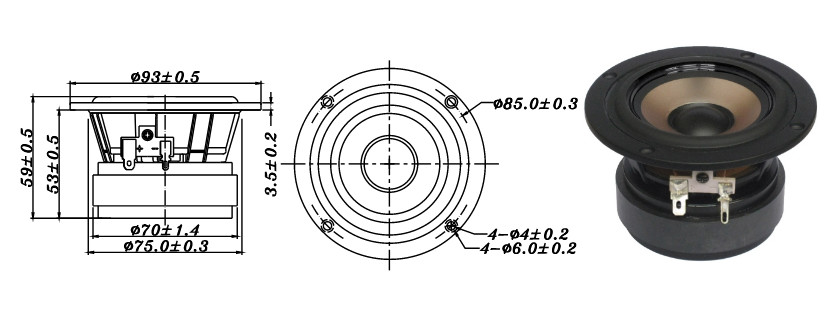

Overall Outside Diameter: 3.66"
Overall Depth: 2.32"
Baffle Cutout Diameter: 2.95"
# Mounting Holes: 4
