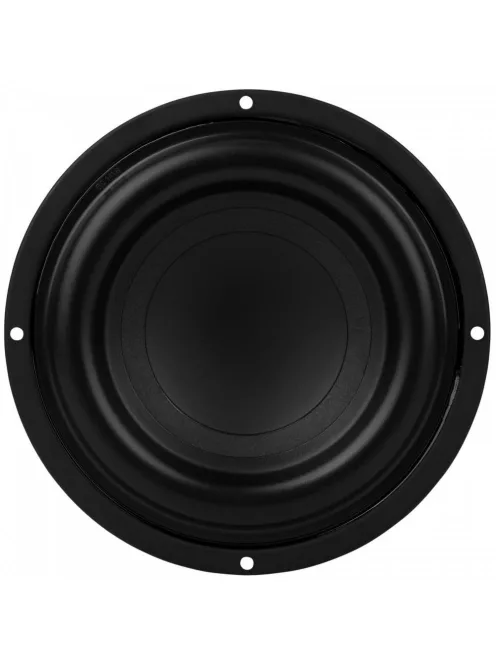

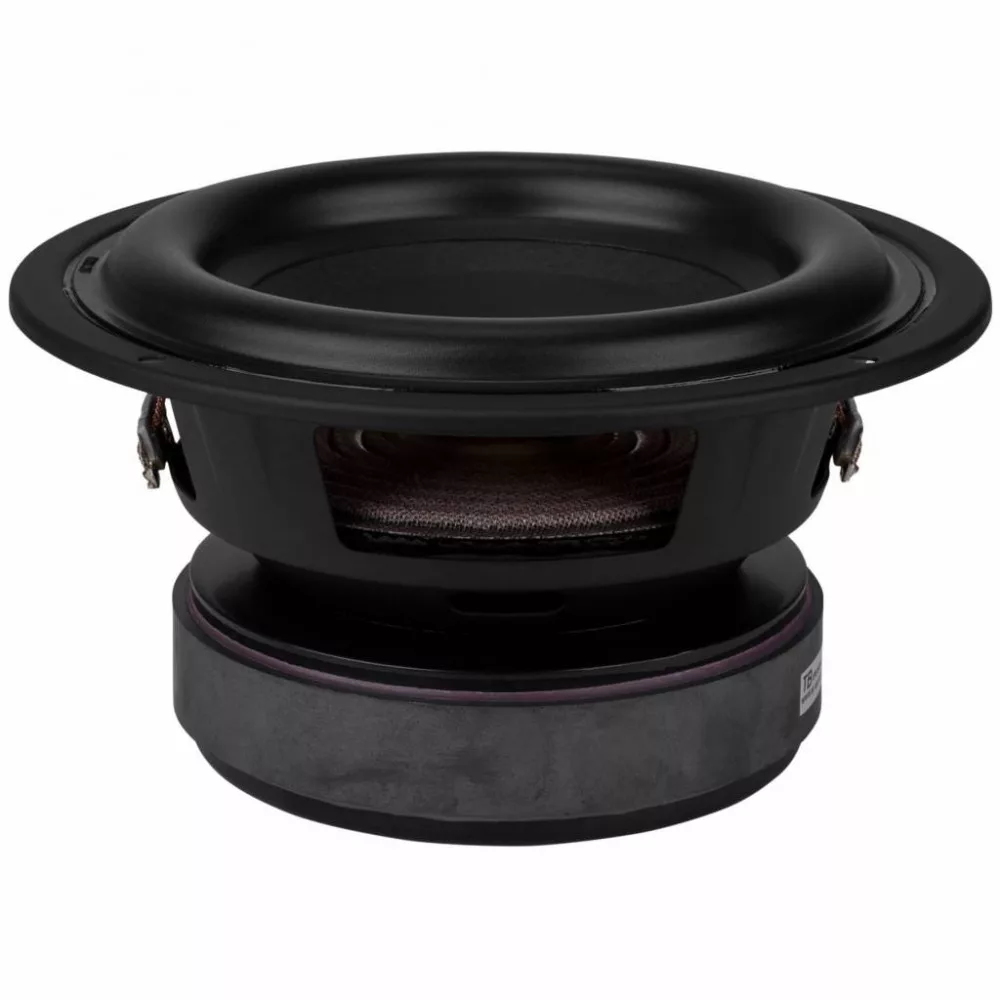

Woofer TypeSubwoofer
Nominal Diameter: 6-1/2"
Power Handling (RMS): 50 Watts
Power Handling (max): 100 Watts
Impedance (Z): 4 ohms
Sensitivity: 83 dB 1W/1m

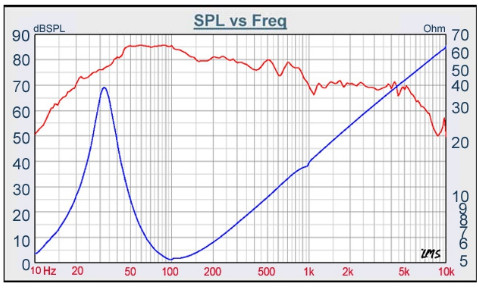

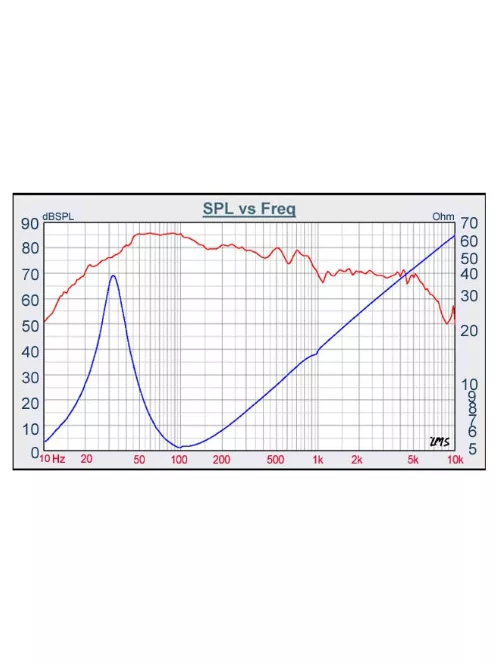

Frequency Response: 35 to 800 Hz
Voice Coil Diameter: 1.52"
Magnet Weight29.2 oz.
DC Resistance (Re): 3.6 ohms
Voice Coil Inductance (Le): 0.47 mH
Resonant Frequency (Fs): 35 Hz
Mechanical Q (Qms): 2.65
Electromagnetic Q (Qes): 0.47
Total Q (Qts): 0.4
Diaphragm Mass Inc. Airload (Mms): 39.91g
Mechanical Compliance of Suspension (Cms): 0.6 mm/N
Surface Area of Cone (Sd): 140 cm²
Volume of Displacement (Vd): 161 cm³
BL Product (BL): 8.47 Tm
Compliance Equivalent Volume (Vas): 11.78 liters
Maximum Linear Excursion (Xmax): 11.5 mm
Cone / Diaphragm Material: Paper
Surround Material: Rubber
Basket / Frame Material: Steel
Magnet Material: Ferrite

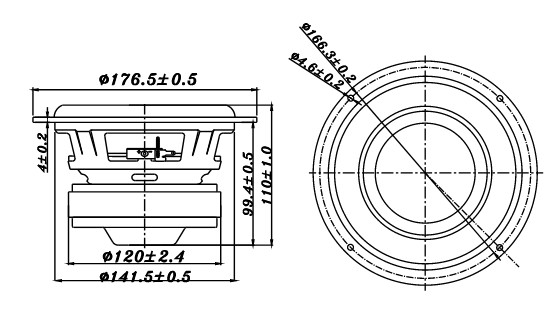

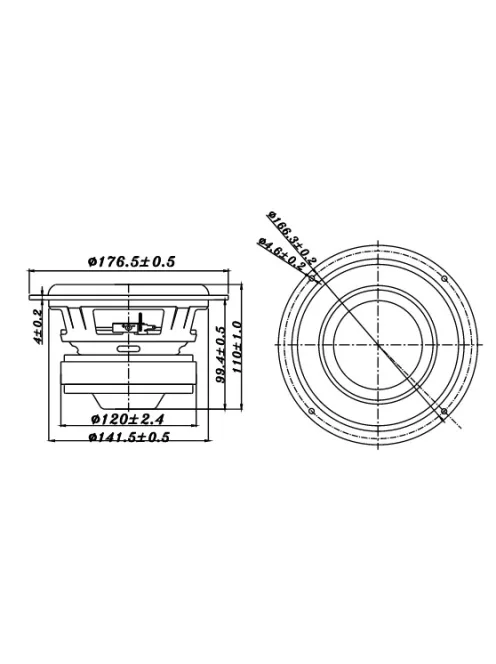

Overall Outside Diameter: 6.95"
Overall Depth: 4.33"
Baffle Cutout Diameter: 5.57"
# Mounting Holes: 4
