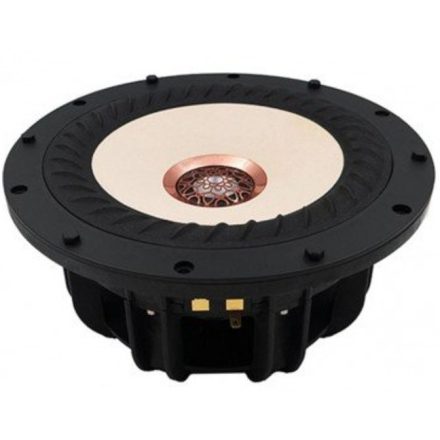

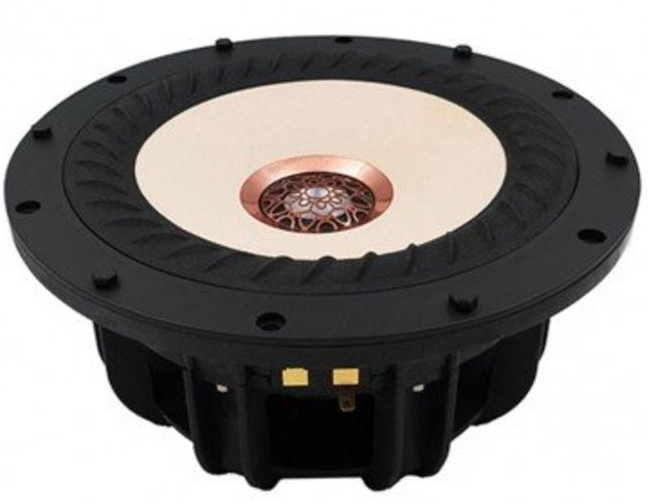

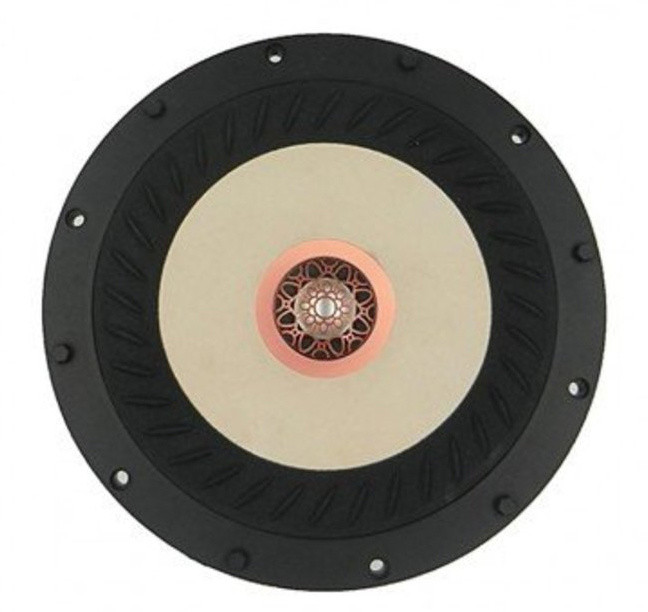

W8-2314 8" Coaxial Full-Range Woofer

313.99 € excl. VAT

W8-2314 8" Coaxial Full-Range Woofer

Name: W8-2314 8" Coaxial Full-Range Woofer
Brand: TangBand
SKU: TAN-W8-2314
Price: 398.76 EUR
Availability: InStock

TangBand

Details

Shipping within (if available from supplier)

4-5 working days

Manufacturer

TangBand

Further data

Out of stock - orderable

313.99 € excl. VAT

Details

Woofer TypeCoaxial

Nominal Diameter: 8"

Power Handling (RMS): 50 Watts

Power Handling (max): 100 Watts

Impedance (Z): 4 ohms

Sensitivity: 90 dB 1W/1m

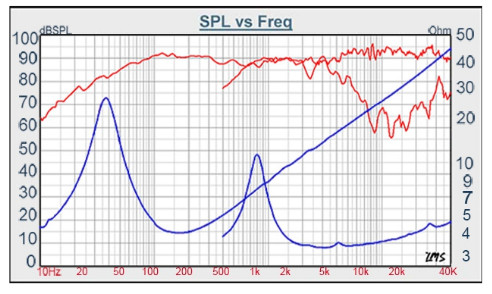

Frequency Response: 38 to 40,000 Hz

Voice Coil Diameter: 1.75"

DC Resistance (Re): 3.6 ohms

Voice Coil Inductance (Le): 0.072 mH

Resonant Frequency (Fs): 38 Hz

Mechanical Q (Qms): 2.14

Electromagnetic Q (Qes): 0.37

Total Q (Qts): 0.31

Diaphragm Mass Inc. Airload (Mms): 23.14g

Mechanical Compliance of Suspension (Cms): 0.7459 mm/N

Surface Area of Cone (Sd): 220.1 cm2

BL Product (BL): 7.4 Tm

Compliance Equivalent Volume (Vas): 1.8 ft.³

Maximum Linear Excursion (Xmax): 6 mm

Cone / Diaphragm Material: Bamboo Fiber / Paper

Surround Material: Rubber

Basket / Frame Material: Polymer

Magnet Material: Neodymium

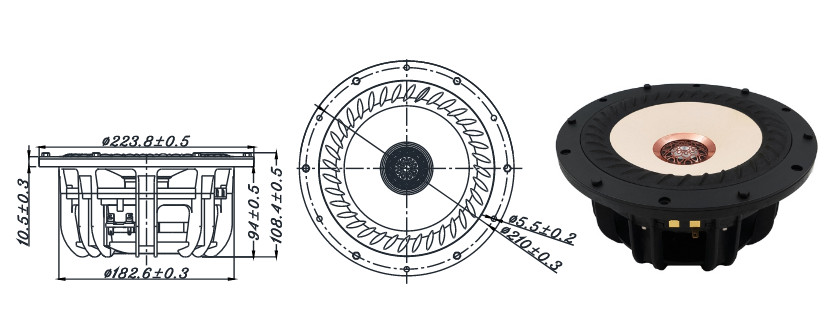

Overall Outside Diameter: 8.8"

Overall Depth: 3.7"

Baffle Cutout Diameter: 7.19"

Bolt Circle Diameter8.27"

# Mounting Holes: 6
